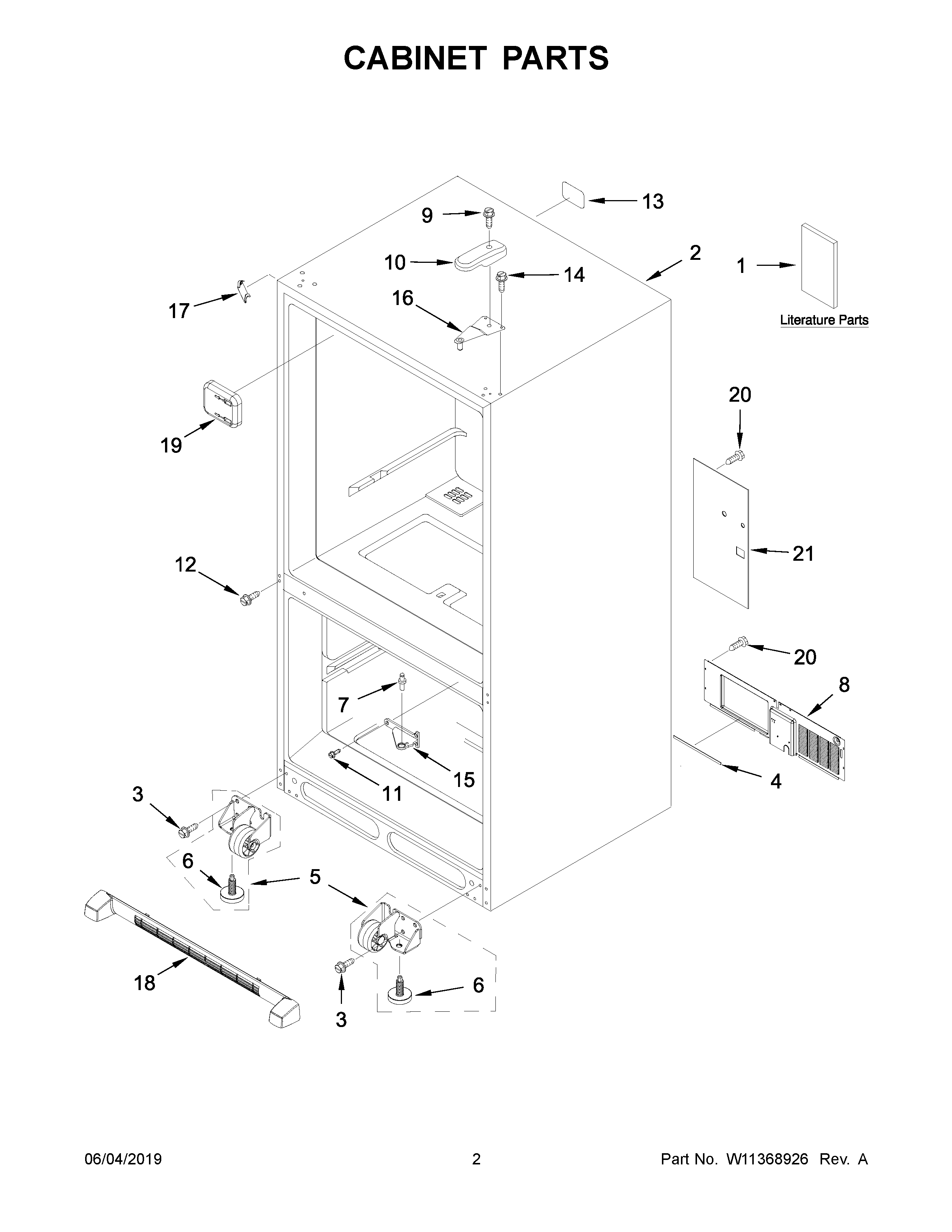

KRBR102ESS01 02 – CABINET PARTS

KRBR102ESS01 02 – CABINET PARTS

Written by

in

KRBR102ESS01 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1OWNERS MANUAL
1BTECH SHEET
2CABINET (NOT A SERVICEABLE PART)
367006564 Whirlpool Refrigerator Screw
4W11244177 Whirlpool Gasket
5AWPW10515762 Whirlpool Refrigerator Cabinet Roller
5WPW10515763 Whirlpool Refrigerator Cabinet Roller
6WPW10141622 Whirlpool Leveler
7WP67006642 Whirlpool Refrigerator Pin
8WPW10210979 Whirlpool Refrigerator Back Cover
9WP8281196 Whirlpool Screw
10W11106366 Whirlpool Refrigerator Door Hinge
11W11573362 Whirlpool Screw Assembly
12WP98165 Whirlpool Screw
13W11685757 Whirlpool Label
14WP489349 Whirlpool Refrigerator Screw
1512607103AP Whirlpool Refrigerator Door Hinge
16WP12566606ED Whirlpool Refrigerator Door Hinge
17WP12587703AP Whirlpool Refrigerator Filler
18WPW10534160 Whirlpool Refrigerator Front Grille
19COVER, FILL TUBE
2067006425 Whirlpool Refrigerator Screw
21W11684617 Whirlpool Valve Cover
