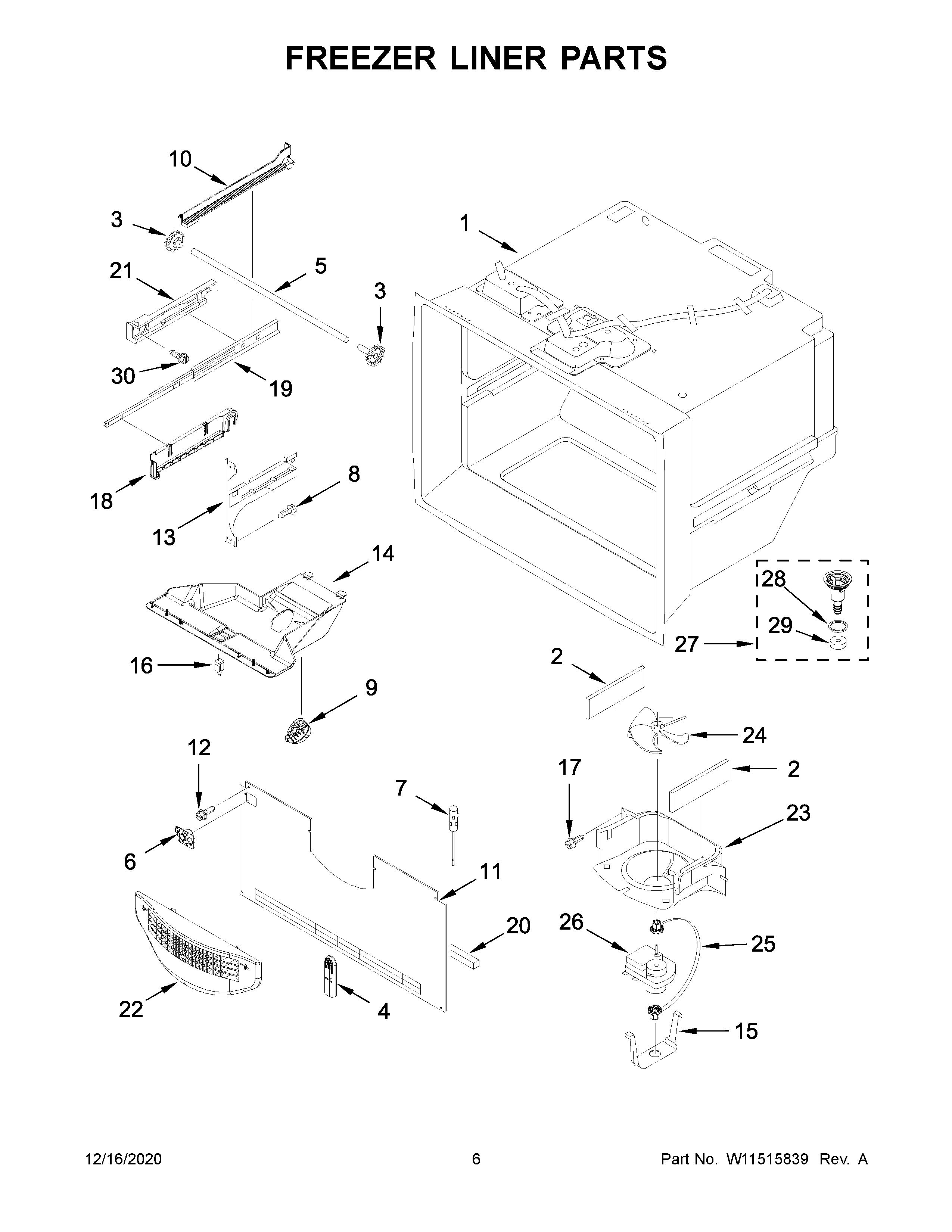

KRBR102ESS02 04 – FREEZER LINER PARTS

KRBR102ESS02 04 – FREEZER LINER PARTS

Written by

in

KRBR102ESS02 04 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10856123 Whirlpool Refrigerator Gasket
312002497 Whirlpool Refrigerator Drawer Gear Kit
4WP67003924 Whirlpool Refrigerator Cover
5W11715937 Whirlpool Shaft
6W11448709 Whirlpool Refrigerator Bracket
712002355 Whirlpool Refrigerator Thermistor Kit
9MODULE
10AW11489994 Whirlpool Refrigerator Rail
10W11489993 Whirlpool Refrigerator Rail
11W10308415 Whirlpool Refrigerator Evaporator Cover
1267006425 Whirlpool Refrigerator Screw
13WPW10330991 Whirlpool Refrigerator Bracket
13AWPW10330993 Whirlpool Refrigerator Bracket
14WPW10277025 Whirlpool Refrigerator Housing
15CLIP, EVAPORATOR MOTOR
16W11396033 Whirlpool Refrigerator Rocker Switch
17WP98165 Whirlpool Screw
18AWPW10280613 Whirlpool Refrigerator Bracket
18WPW10280608 Whirlpool Refrigerator Bracket
19W11658402 Whirlpool Drawer Slide Rail
20W11159742 Whirlpool Refrigerator Gasket
21AWPW10284685 Whirlpool Refrigerator Bracket
21WPW10284684 Whirlpool Refrigerator Bracket
22WPW10175909 Whirlpool Grille Assembly
23WPW10167023 Whirlpool Refrigerator Shroud
24WP2169142 Whirlpool Fan Blade
25W10121318 Whirlpool Refrigerator Grommet
26WPW10128551 Whirlpool Evaporator Fan Motor
27W10815413 Whirlpool Refrigerator Funnel
28WPM0500703 Whirlpool Refrigerator O-Ring Seal
29WPB8381501 Whirlpool Refrigerator Door Gasket
30WP489474 Whirlpool Refrigerator Screw
