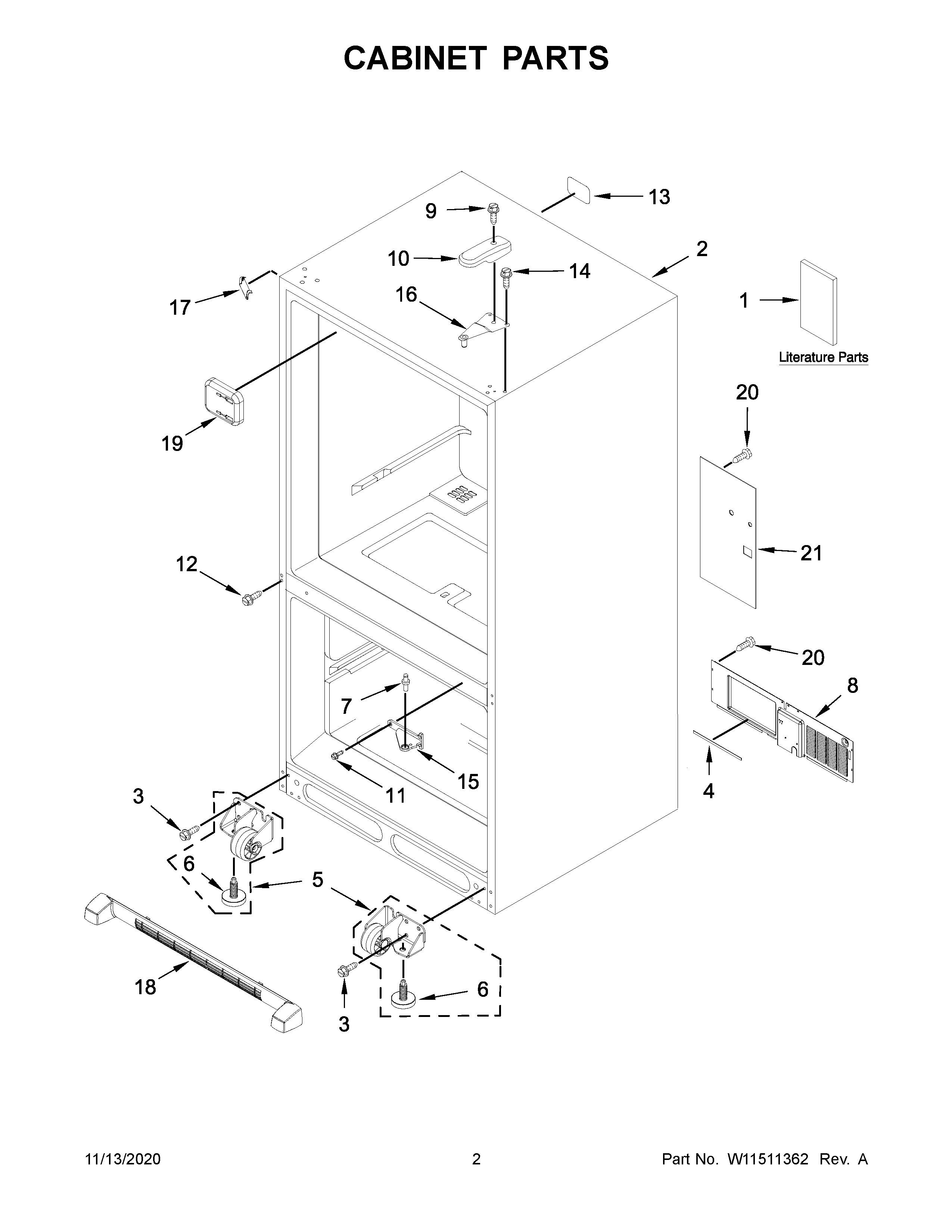

KRBR109ESS02 02 – CABINET PARTS

Products

Position	Product
1A	ENERGY GUIDE
1	OWNERS MANUAL
1B	TECH SHEET
2	CABINET (NOT A SERVICEABLE PART)
3	67006564 Whirlpool Refrigerator Screw
4	B5759655 Whirlpool Refrigerator Gasket
5A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
5	WPW10515763 Whirlpool Refrigerator Cabinet Roller
6	WPW10141622 Whirlpool Leveler
7	WP67006642 Whirlpool Refrigerator Pin
8	W10210978 Whirlpool Refrigerator Back Cover
9	WP8281196 Whirlpool Screw
10	W11106366 Whirlpool Refrigerator Door Hinge
11	W11573362 Whirlpool Screw Assembly
12	WP489349 Whirlpool Refrigerator Screw
13	W11685757 Whirlpool Label
15	12607103AP Whirlpool Refrigerator Door Hinge
16	WP12566606ED Whirlpool Refrigerator Door Hinge
17	WP12587703AP Whirlpool Refrigerator Filler
18	WPW10534165 Whirlpool Refrigerator Front Grille
19	COVER, FILL TUBE
20	SCREW
21	W11684617 Whirlpool Valve Cover
