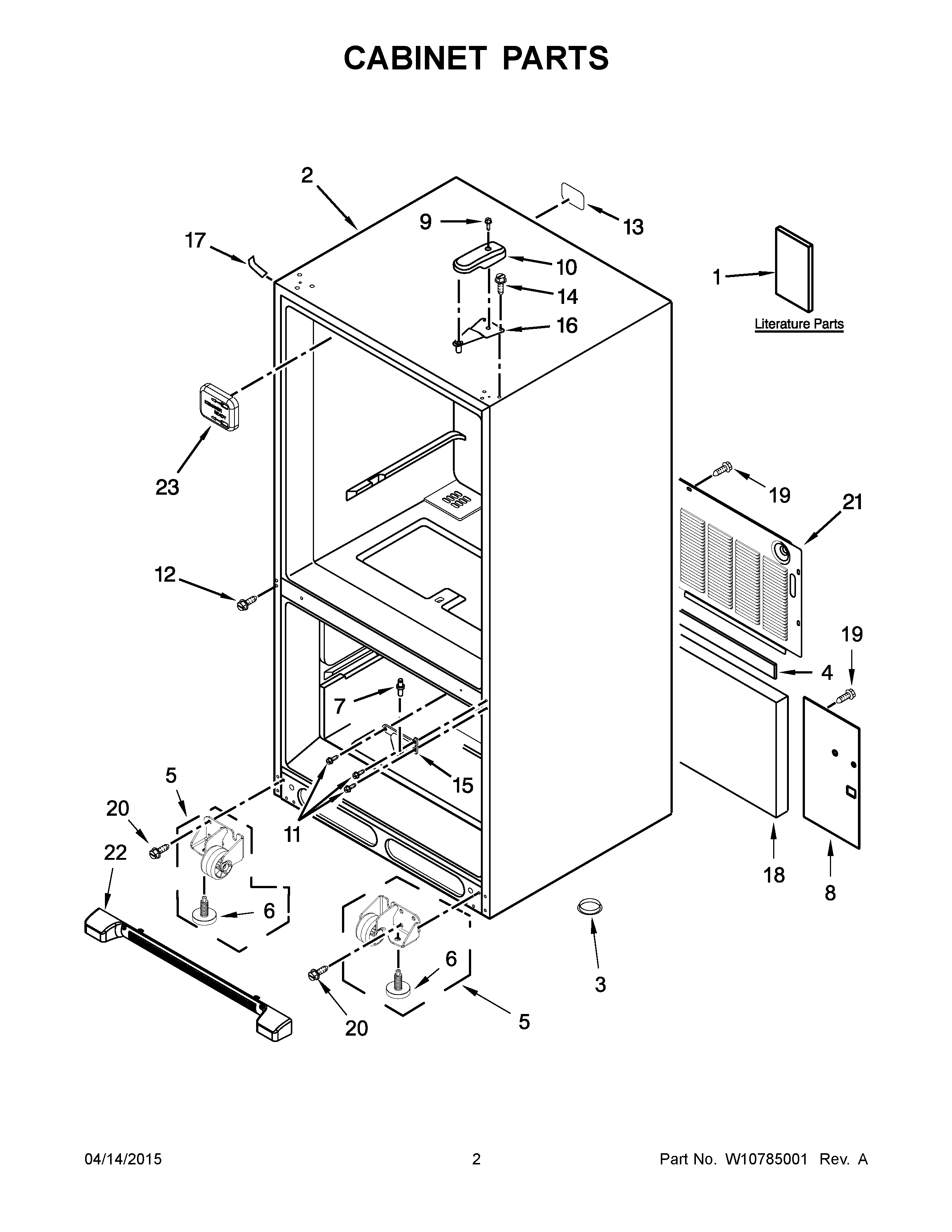

KRBX102EWH00 02 – CABINET PARTS

KRBX102EWH00 02 – CABINET PARTS

Written by

in

KRBX102EWH00 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1USE AND CARE GUIDE
1BTECH SHEET
2CABINET (NOT A SERVICEABLE PART)
3A3076901 Whirlpool Refrigerator Plug
4B5759655 Whirlpool Refrigerator Gasket
5AWPW10515762 Whirlpool Refrigerator Cabinet Roller
5WPW10515763 Whirlpool Refrigerator Cabinet Roller
6WPW10141622 Whirlpool Leveler
7WP67006642 Whirlpool Refrigerator Pin
8W11684617 Whirlpool Valve Cover
9WP8281196 Whirlpool Screw
1067001014 Whirlpool Refrigerator Top Hinge Cover White
10A67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
11WP67006380 Whirlpool Screw
12WP98165 Whirlpool Screw
13W11685757 Whirlpool Label
14WP489349 Whirlpool Refrigerator Screw
15AWP12607104ED Whirlpool Refrigerator Door Hinge
15WP12607103WD Whirlpool Refrigerator Center Hinge
16WP12566606ED Whirlpool Refrigerator Door Hinge
1712587703W Whirlpool Refrigerator Cover
17A67003485 Whirlpool Refrigerator Corner Cover (Black)
18INSULATION, SOUND
1967006425 Whirlpool Refrigerator Screw
2067006564 Whirlpool Refrigerator Screw
21WPW10210979 Whirlpool Refrigerator Back Cover
22AWPW10534162 Whirlpool Refrigerator Front Grille
22WPW10534161 Whirlpool Refrigerator Front Grille
23WP67001098 Whirlpool Refrigerator Tube Cover
