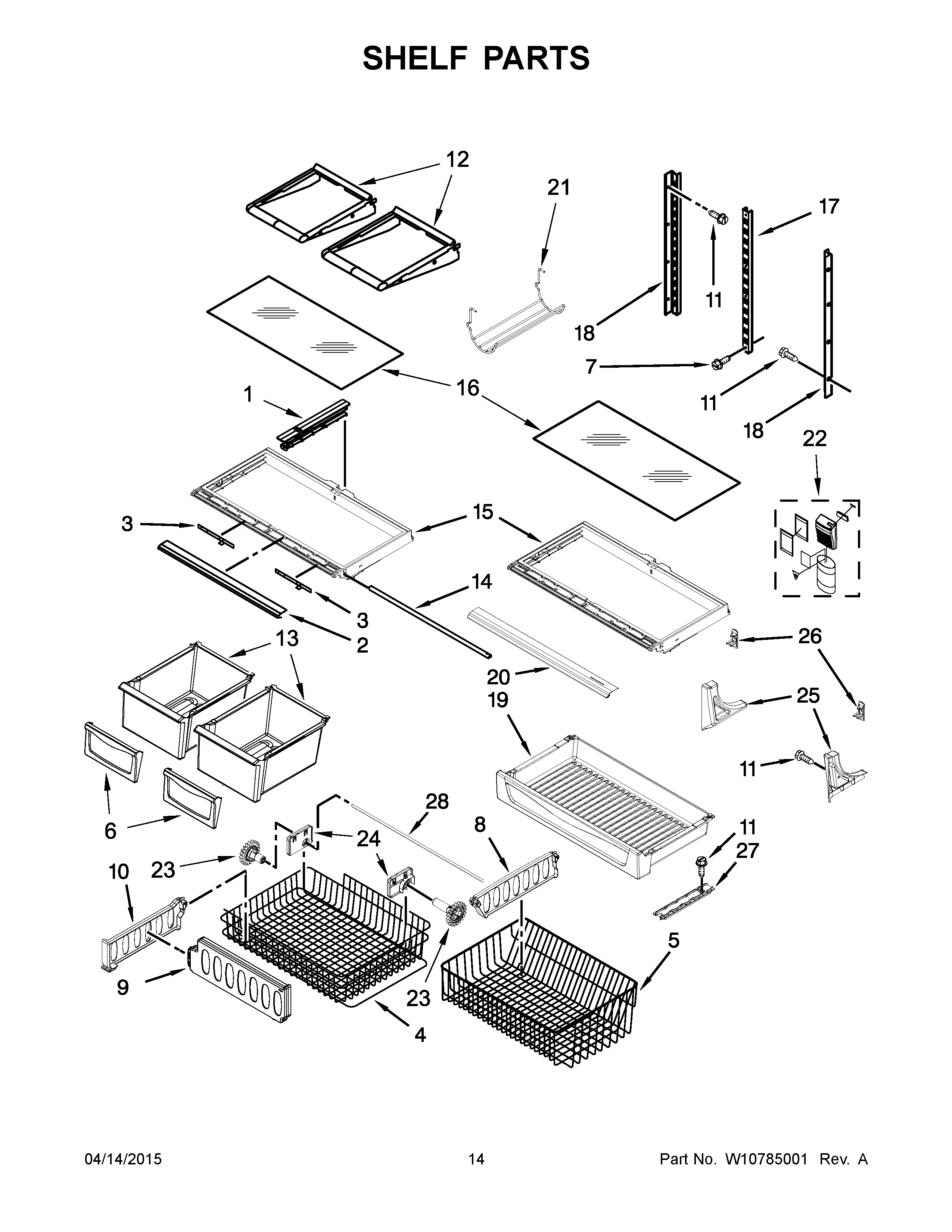

KRBX102EWH00 08 – SHELF PARTS

Products

Position	Product
1	RAIL-CENTR CRISPER
2	WPW10231482 Whirlpool Refrigerator Shelf Trim
3	SLIDE
4	W10348238 Whirlpool Refrigerator Freezer Basket
5	WPW10503183 Whirlpool Freezer Basket
6	12643702 Whirlpool Refrigerator Front Pan
7	W10215666 Whirlpool Refrigerator Screw
8	W10847995 Whirlpool Divider Assembly
9	W10311695 Whirlpool Refrigerator Divider
10	W10241046 Whirlpool Refrigerator Divider
11	67006425 Whirlpool Refrigerator Screw
12	W11402523 Whirlpool Refrigerator Glass Shelf
13	WP67002633 Whirlpool Crisper Pan
14	WP12227303WD Whirlpool Refrigerator Crisper Brace
15	W10858393 Whirlpool Shelf Frame
16	WP67006878 Whirlpool Refrigerator Crisper Glass
17	W10273463 Whirlpool Refrigerator Ladder
18	W10251969 Whirlpool Refrigerator Ladder
19	W10328327 Whirlpool Refrigerator Snack Pan
20	W10656986 Whirlpool Refrigerator Shelf Trim
21	W10335942 Whirlpool Refrigerator Wine Rack
22	ASSEMBLY, PRODUCE PRESERVER
23	WPW10474716 Whirlpool Refrigerator Gear
23A	WPW10474715 Whirlpool Refrigerator Gear
24A	W10348260 Whirlpool Refrigerator Bracket
24	W10348259 Whirlpool Refrigerator Bracket Assembly
25A	WP67001722 Whirlpool Refrigerator Support
25	WP67001721 Whirlpool Refrigerator Support
26	WP67001716 Whirlpool Refrigerator Shelf Support Clip Ladder Hook
27	WP67001719 Whirlpool Refrigerator Track
28	W10802339 Whirlpool Refrigerator Shaft
