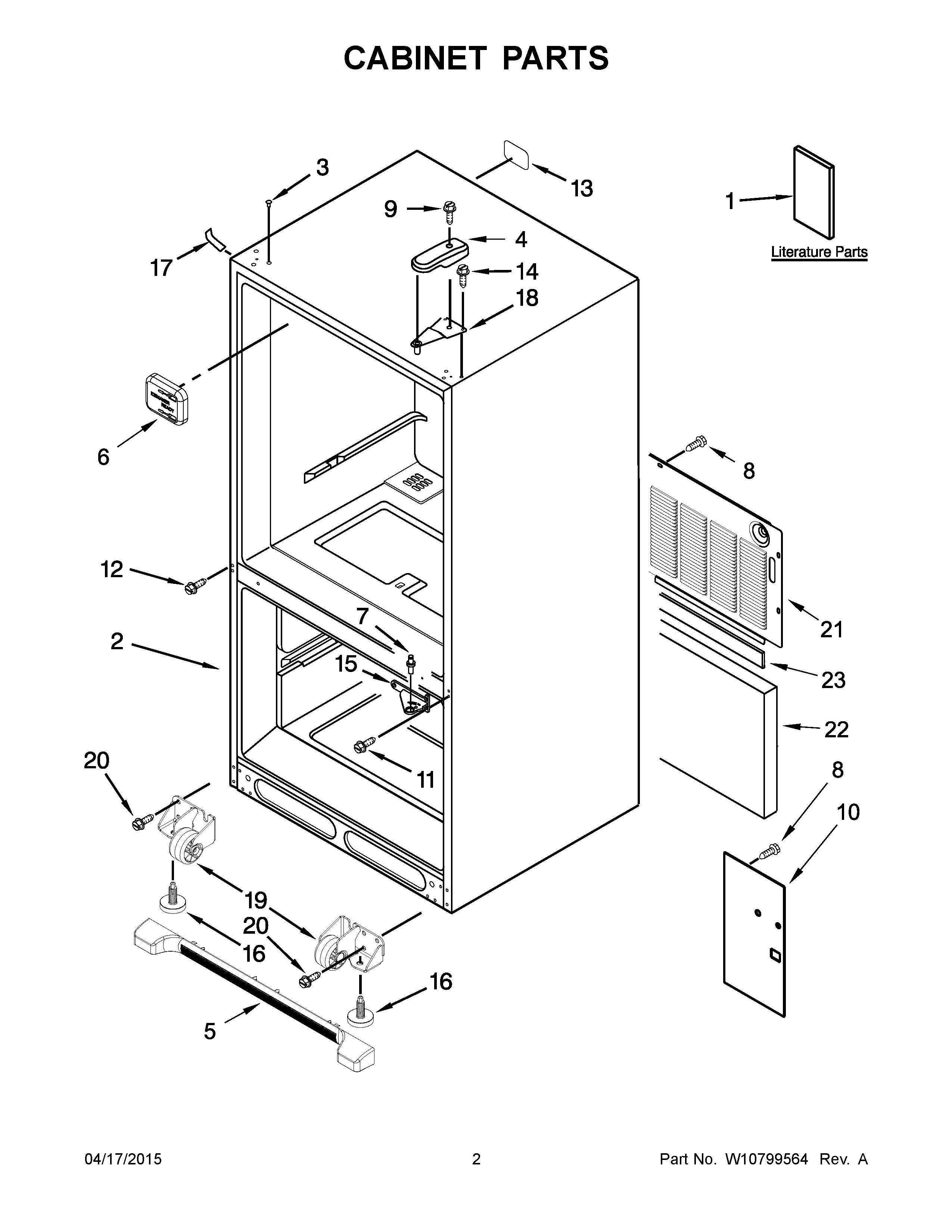

KRBX109EBL00 02 – CABINET PARTS

KRBX109EBL00 02 – CABINET PARTS

Written by

in

KRBX109EBL00 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1USE AND CARE GUIDE
1BTECH SHEET
2CABINET (NOT A SERVICEABLE PART)
3WP67001130 Whirlpool Refrigerator White Button Plug
3AWP12246608 Whirlpool Refrigerator Button
4A67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
467001014 Whirlpool Refrigerator Top Hinge Cover White
5AWPW10534167 Whirlpool Refrigerator Front Grille
5WPW10534166 Whirlpool Refrigerator Front Grille
6WP67001098 Whirlpool Refrigerator Tube Cover
7WP67006642 Whirlpool Refrigerator Pin
867006425 Whirlpool Refrigerator Screw
9WP8281196 Whirlpool Screw
10W11684617 Whirlpool Valve Cover
11WP67006380 Whirlpool Screw
13W11685757 Whirlpool Label
14WP489349 Whirlpool Refrigerator Screw
15WP12607103WD Whirlpool Refrigerator Center Hinge
15AWP12607104ED Whirlpool Refrigerator Door Hinge
16WPW10141622 Whirlpool Leveler
17A67003485 Whirlpool Refrigerator Corner Cover (Black)
1712587703W Whirlpool Refrigerator Cover
18WP12566606ED Whirlpool Refrigerator Door Hinge
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
20WP98165 Whirlpool Screw
21W10210978 Whirlpool Refrigerator Back Cover
22INSULATION, SOUND
23B5759655 Whirlpool Refrigerator Gasket
