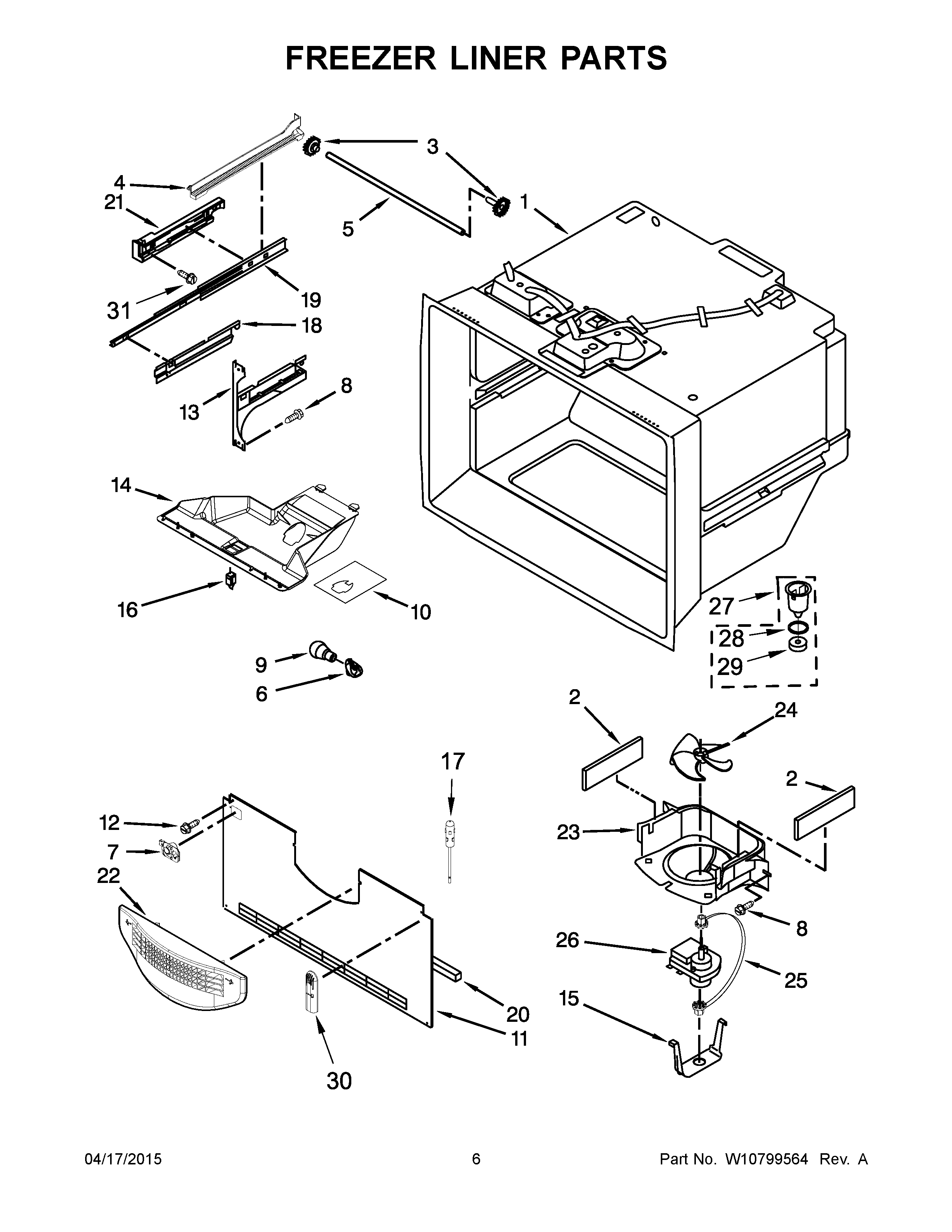

KRBX109EWH00 04 – FREEZER LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	W11451451 Whirlpool Refrigerator Gasket
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4	W11489993 Whirlpool Refrigerator Rail
4A	W11489994 Whirlpool Refrigerator Rail
5	W10802329 Whirlpool Refrigerator Shaft
6	W11447232 Whirlpool Refrigerator Socket
7	W11448709 Whirlpool Refrigerator Bracket
8	WP98165 Whirlpool Screw
9	W11338583 Whirlpool Light Bulb
10	W11469652 Whirlpool Refrigerator Shield
11	WPW10308414 Whirlpool Refrigerator Evaporator Cover
12	67006425 Whirlpool Refrigerator Screw
13A	WPW10330993 Whirlpool Refrigerator Bracket
13	WPW10330991 Whirlpool Refrigerator Bracket
14	WPW10277025 Whirlpool Refrigerator Housing
15	CLIP, EVAPORATOR MOTOR
16	W11396033 Whirlpool Refrigerator Rocker Switch
17	12002355 Whirlpool Refrigerator Thermistor Kit
18A	WPW10280613 Whirlpool Refrigerator Bracket
18	WPW10280608 Whirlpool Refrigerator Bracket
19	W11658402 Whirlpool Drawer Slide Rail
20	A3189394 Whirlpool Refrigerator Gasket
21A	WPW10284685 Whirlpool Refrigerator Bracket
21	WPW10284684 Whirlpool Refrigerator Bracket
22	WPW10175909 Whirlpool Grille Assembly
23	WPW10167023 Whirlpool Refrigerator Shroud
24	WP2169142 Whirlpool Fan Blade
25	W10121318 Whirlpool Refrigerator Grommet
26	WPW10128551 Whirlpool Evaporator Fan Motor
27	W10815413 Whirlpool Refrigerator Funnel
28	WPM0500703 Whirlpool Refrigerator O-Ring Seal
29	WPB8381501 Whirlpool Refrigerator Door Gasket
30	WP67003924 Whirlpool Refrigerator Cover
31	WP489474 Whirlpool Refrigerator Screw
