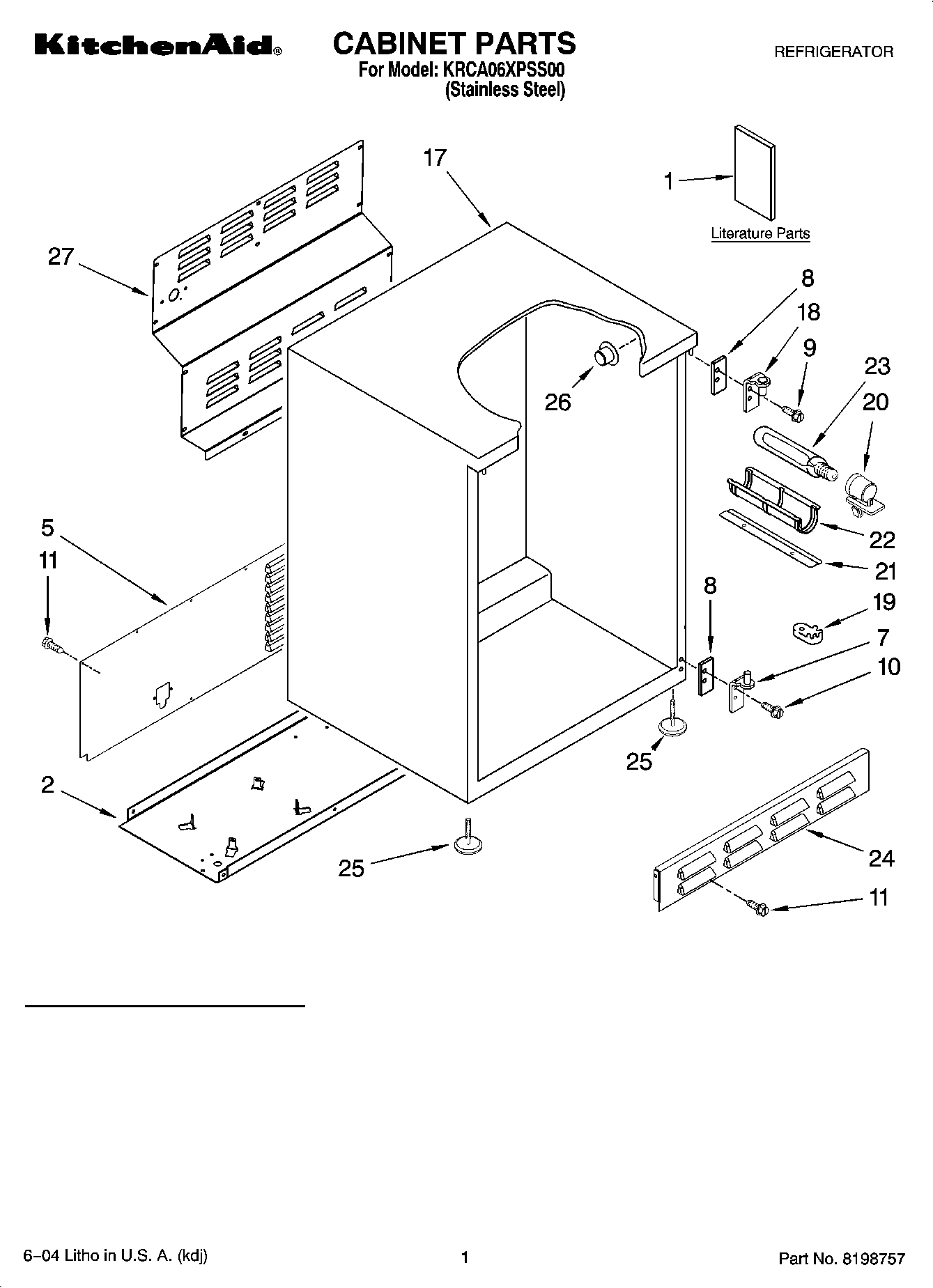

KRCA06XPSS00 01 – CABINET PARTS

Products

PositionProduct
1Service & Wiring Sheet
1Energy Guide
1Use & Care Guide
2Baseplate Assembly
5Cover, Unit Compartment
72311016 Whirlpool Door Hinge
8SHIM
9W11474472 Whirlpool Screw
10Screw
11Screw
17Cabinet (Not A Serviceable Part)
18Hinge Asm, Top
19WPW10329686 Whirlpool Door Cam Black
20WPW10191429 Whirlpool Refrigerator Socket
21Bracket, Light Cover
22Cover, Light
23WP548049 Whirlpool Refrigerator Light Bulb
24Panel, Unit
252303615 Whirlpool Refrigerator Leveler
26Knob, Thermostat
27Panel, Evaporator
