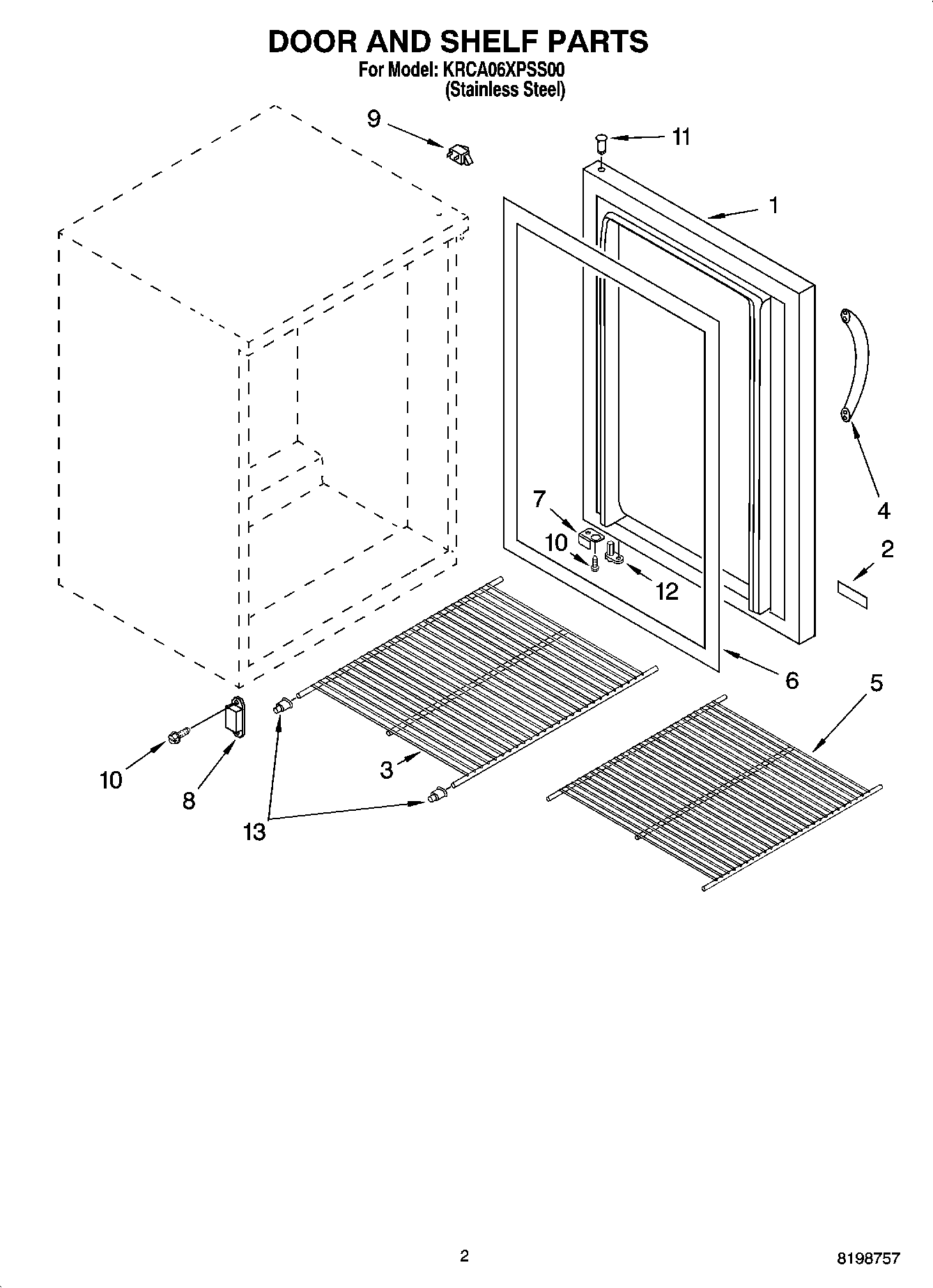

KRCA06XPSS00 02 – DOOR AND SHELF PARTS

Products

PositionProduct
1Door Assembly (Includes Gasket)
2Nameplate
3Shelf, Wire-Short
4Handle, Door (Not Serviced, Order 1)
5Shelf, Wire-Long
6Gasket, Door
7Bracket, Door Stop
8Latch, Magnetic
9W11457217 Whirlpool Refrigerator Rocker Switch Combination
10Screw
11WP2183003 Whirlpool Thimble
12WP2182179 Whirlpool Cam Closer
13Caster Kit (4)
13CLEANER, STAINLESS STEEL (12 OZ)
132163762 Whirlpool Refrigerator Cup Assembly
13OPTIONAL PARTS NOT ILLUSTRATED
