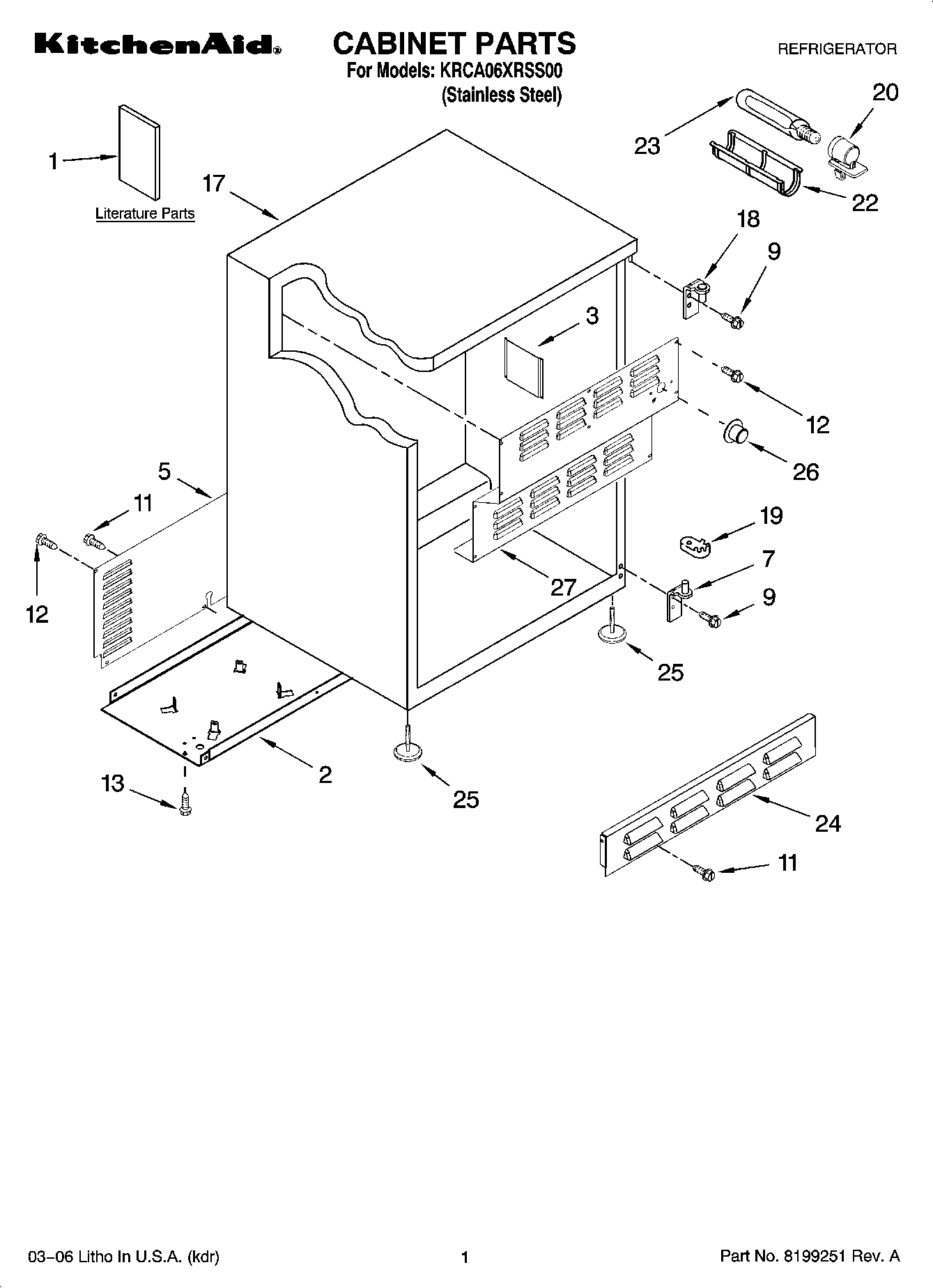

KRCA06XRSS00 01 – CABINET PARTS

KRCA06XRSS00 01 – CABINET PARTS

Written by

in

KRCA06XRSS00 01 – CABINET PARTS

Products

PositionProduct
1Energy Guide
1Service & Wiring Sheet
1Use & Care Guide
2Baseplate Assembly
3Shield, Heater (2)
5Cover, Unit Compartment
72311016 Whirlpool Door Hinge
9W11474472 Whirlpool Screw
11Screw, 8-32X.5 (stainless)
12Screw
13Screw (4)
17Cabinet, (Not A Serviceable Part)
18Hinge Asm, Top
19WPW10329686 Whirlpool Door Cam Black
20WPW10191429 Whirlpool Refrigerator Socket
22Cover, Light
23WP548049 Whirlpool Refrigerator Light Bulb
24Panel, Unit
252303615 Whirlpool Refrigerator Leveler
26Knob, Thermostat
27Panel, Evaporator
