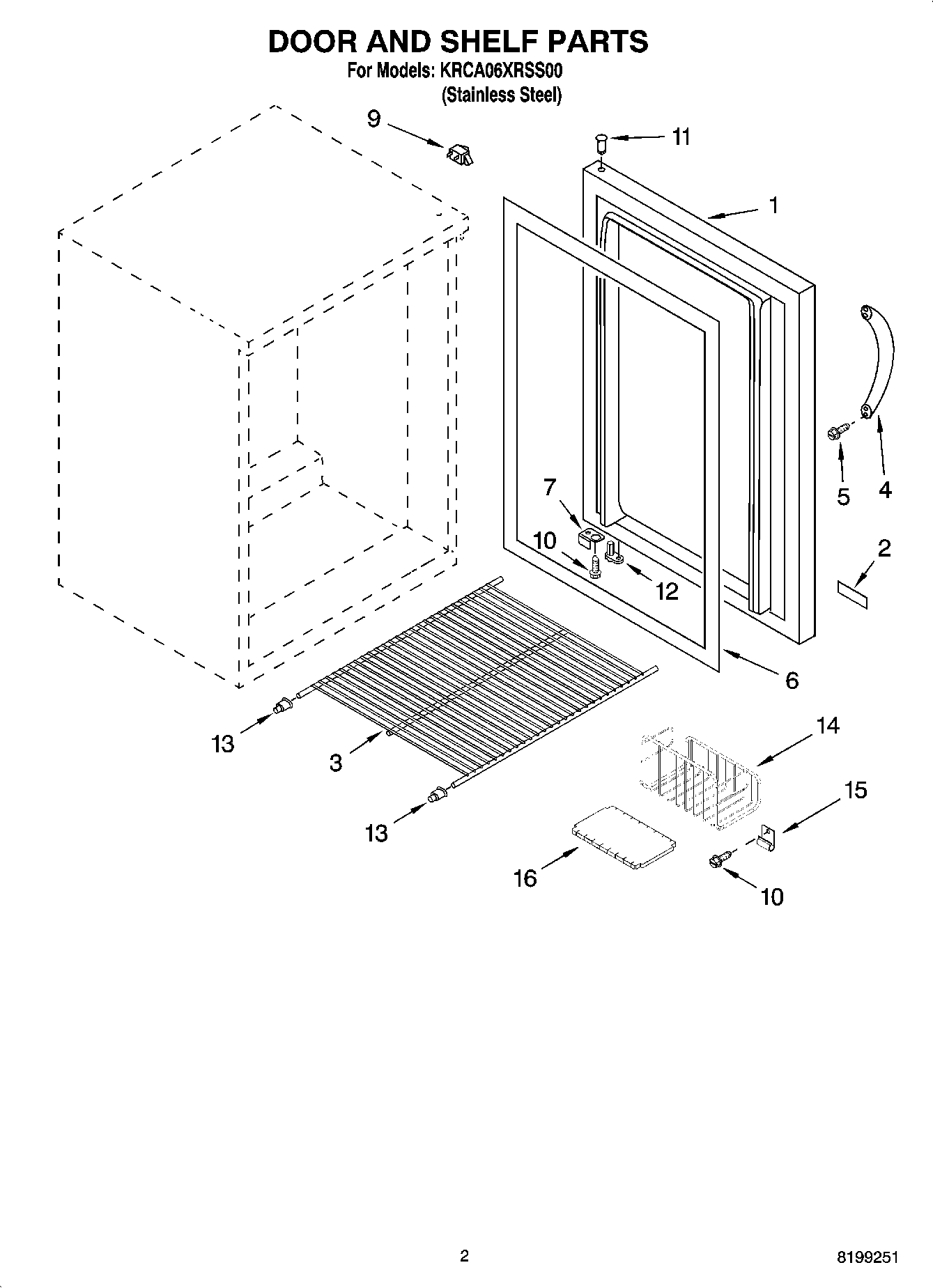

KRCA06XRSS00 02 – DOOR AND SHELF PARTS

Products

PositionProduct
1Door Assembly (Includes Gasket)
2Nameplate
3Shelf, Wire (2)
4Handle, Bar
5WP179051 Whirlpool Screw
6Gasket, Door
7Bracket, Door Stop
9W11457217 Whirlpool Refrigerator Rocker Switch Combination
10Screw
11WP2183003 Whirlpool Thimble
12WP2182179 Whirlpool Cam Closer
132163762 Whirlpool Refrigerator Cup Assembly
14Basket, Door (2)
15Clip, Basket Mounting (8)
16Caster Kit (4)
16Mat, Door Basket (2)
16CLEANER, STAINLESS STEEL (12 OZ)
16OPTIONAL PARTS NOT ILLUSTRATED
