KRFC136RBS00 REFRIGERATOR DOOR PARTS

KRFC136RBS00 REFRIGERATOR DOOR PARTS

Written by

in

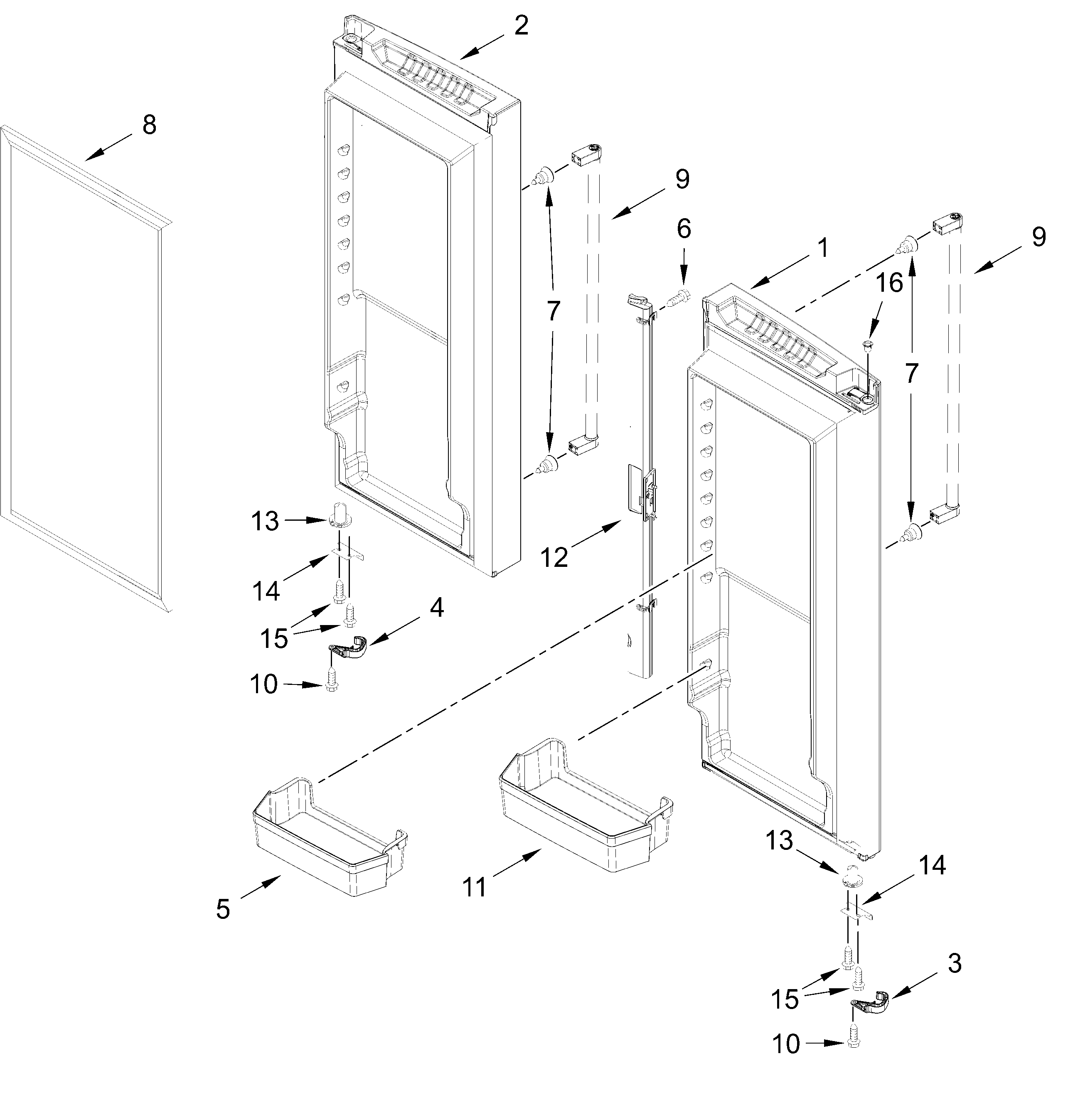

KRFC136RBS00 REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W11661559 Whirlpool FIP Door
2W10919633 Whirlpool Refrigerator Door Assembly
3W10918170 Whirlpool Refrigerator Closer
4W10918171 Whirlpool Refrigerator Closer
5Bucket, Medium
6W11311945 Whirlpool Refrigerator Screw
7W11449276 Whirlpool Handle Support
8GASKET-FIP
9W11483532 Whirlpool Refrigerator Handle
10WP67006908 Whirlpool Refrigerator Screw
11Bucket, Gallon
12WP12722803B Whirlpool Door Guide
13WP67003639 Whirlpool Refrigerator Closer
14W11708403 Whirlpool Door Stop
15WP98165 Whirlpool Screw
1612996601 Whirlpool Refrigerator Bushing Clip
