| W11506635 Whirlpool Refrigerator Valve Coupler |
| (Charging Tube to Compressor) |
| (Discharge Tube to Compressor) |
| (Suction Tube to Compressor) |
| W11504416 Whirlpool Refrigerator Coupler |
| W11504415 Whirlpool Refrigerator Coupler |
| W11504423 Whirlpool Refrigerator Coupler |
| W11504432 Whirlpool Refrigerator Coupler |
| (Heat Loop to Drier) |
| (Capillary Tube to Drier) |
| W11504447 Whirlpool Refrigerator Coupler |
| REFRIGERANT CHARGE |
| (Capillary Tube to Evaporator) |
| (Heat Loop to Condenser) |
| 51 grams (R600a) |
| W11506623 Whirlpool Refrigerator Coupler |
| (Also Order the Following Lokring™ Parts) |
| (Suction Line to Evaporator) |
| W11504431 Whirlpool Microwave Coupler |
| W11506621 Whirlpool Refrigerator Coupler |
| (Discharge Tube to Condenser) |
| W11504445 Whirlpool Refrigerator Coupler |

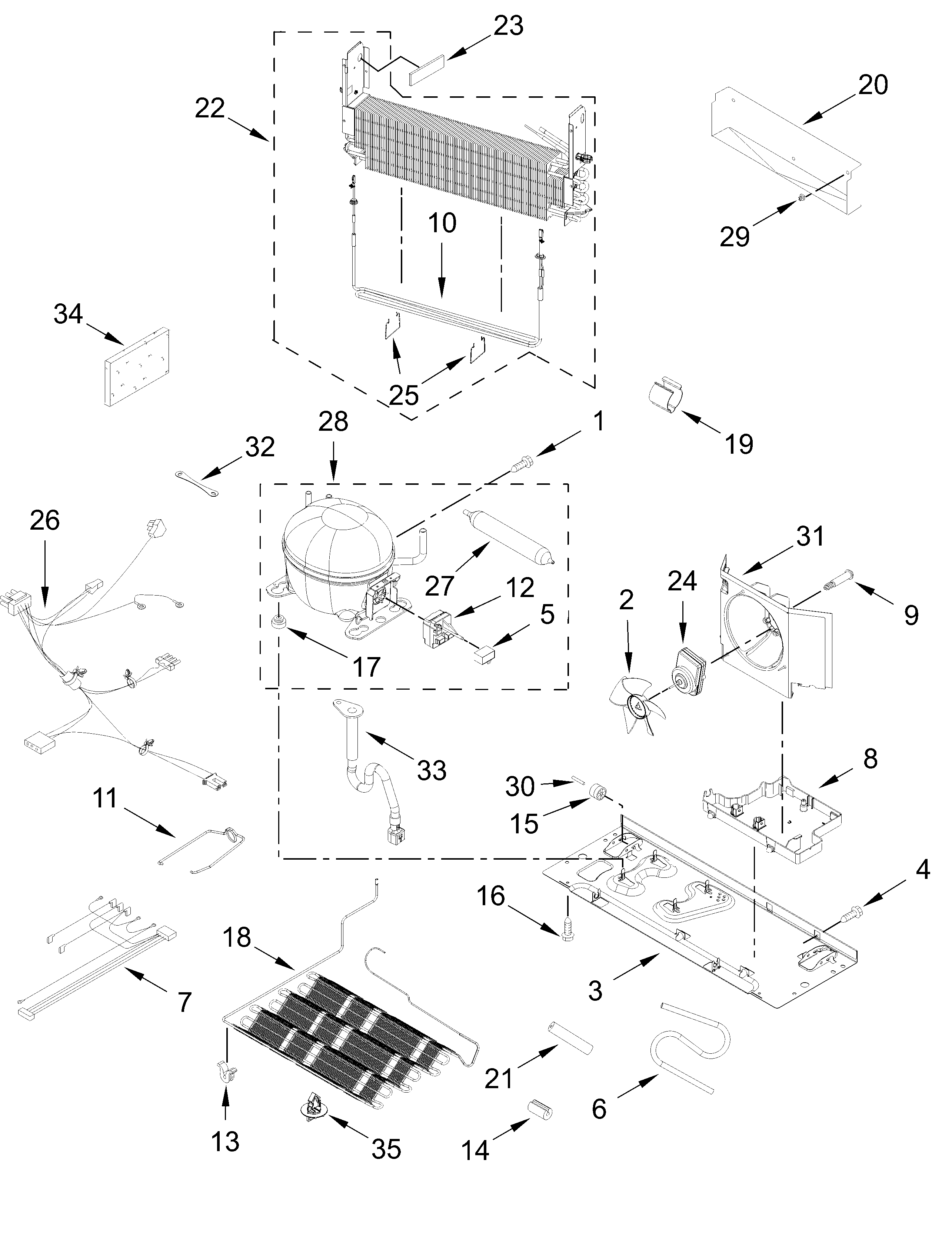

| 1 | 12992301 Whirlpool Refrigerator Screw |
| 2 | WP12825803 Whirlpool Refrigerator Fan Blade |
| 3 | W11727651 Whirlpool Plate Assembly |
| 4 | 67006425 Whirlpool Refrigerator Screw |
| 5 | WPW10350564 Whirlpool Refrigerator Freezer Capacitor |
| 6 | TUBE |
| 7 | W11708428 Whirlpool Wire Harness |
| 8 | WPW10655368 Whirlpool Refrigerator Drip Pan |
| 9 | W10829281 Whirlpool Refrigerator Screw |
| 10 | W11547652 Whirlpool Refrigerator Heater |
| 11 | STRAP, BALE |
| 12 | W11524472 Whirlpool Refrigerator Start Device |
| 13 | WPW10137529 Whirlpool Refrigerator Grommet |
| 14 | W10852725 Whirlpool Refrigerator Grommet |
| 15 | WP67005149 Whirlpool Roller |
| 16 | Screw |
| 17 | WPW10169124 Whirlpool Refrigerator Grommet |
| 18 | CONDENSER (ALSO ORDER THE FOLLOWING LOKRING PARTS) |
| 19 | W10281329 Whirlpool Clamp |
| 20 | W11547653 Whirlpool Refrigerator Drip Tray |
| 21 | SLEEVE |
| 22 | W11598433 Whirlpool Refrigerator Evaporator Repair |
| 23 | W11451451 Whirlpool Refrigerator Gasket |
| 24 | W11613295 Whirlpool Condenser Motor |
| 25 | W11380964 Whirlpool Clip Assembly |
| 26 | HARNS-WIRE |
| 27 | W11109499 Whirlpool Refrigerator Tube |
| 28 | W11686820 Whirlpool Compressor |
| 29 | CLIP, EVAP (2) |
| 30 | 67006434 Whirlpool Axle Pin |
| 31 | W11556315 Whirlpool Shroud |
| 32 | W10236396 Whirlpool Refrigerator Strap |
| 33 | W10619951 Whirlpool Drain Tube with Grommet |
| 34 | W11553819 Whirlpool Refrigerator Insulation |
| 35 | W10815863 Whirlpool Clip |
