KRFC136RPS00 FREEZER LINER AND ICEMAKER PARTS
Written by
in

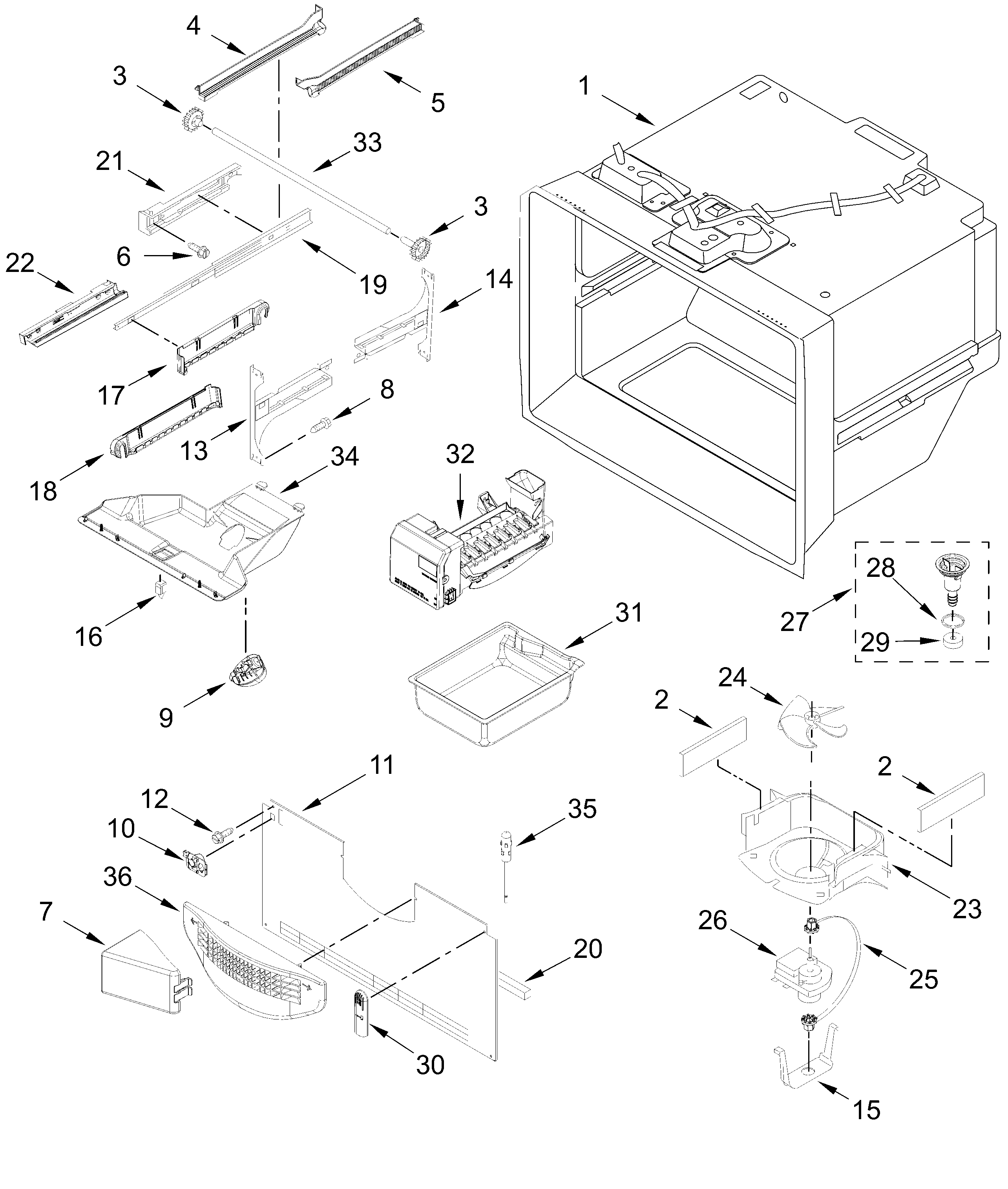

KRFC136RPS00 FREEZER LINER AND ICEMAKER PARTS
Products
Position
Product
1
Liner (Not A Seviceable Part)
2
W10856123 Whirlpool Refrigerator Gasket
3
12002497 Whirlpool Refrigerator Drawer Gear Kit
4
W10516605 Whirlpool Refrigerator Rail
5
W10516604 Whirlpool Refrigerator Rail
6
WP489474 Whirlpool Refrigerator Screw
7
W10157765 Whirlpool Refrigerator Deflector
8
WP98165 Whirlpool Screw
9
MODULE
10
GUIDE, FILL TUBE
11
W11727809 Whirlpool Evaporator Cover
12
67006425 Whirlpool Refrigerator Screw
13
WPW10330994 Whirlpool Refrigerator Bracket
14
WPW10330995 Whirlpool Refrigerator Bracket
15
CLIP, EVAPORATOR MOTOR
16
W11396033 Whirlpool Refrigerator Rocker Switch
17
WPW10281115 Whirlpool Refrigerator Bracket
18
WPW10281116 Whirlpool Bracket
19
W11658403 Whirlpool Slide
20
W11159728 Whirlpool Refrigerator Gasket
21
WPW10284692 Whirlpool Refrigerator Bracket
22
WPW10284693 Whirlpool Mounting Bracket
23
WPW10167023 Whirlpool Refrigerator Shroud
24
WP2169142 Whirlpool Fan Blade
25
W11690160 Whirlpool Grommet
26
MOTOR-EVAP
27
W10815413 Whirlpool Refrigerator Funnel
28
WPM0500703 Whirlpool Refrigerator O-Ring Seal
29
WPB8381501 Whirlpool Refrigerator Door Gasket
30
WP67003924 Whirlpool Refrigerator Cover
31
WPW10171529 Whirlpool Refrigerator Ice Pan
32
W11692144 Whirlpool Ice Maker
33
W11028221 Whirlpool Refrigerator Shaft
34
WPW10277025 Whirlpool Refrigerator Housing
35
W10316760 Whirlpool Thermistor Kit
36
WPW10175909 Whirlpool Grille Assembly
←
