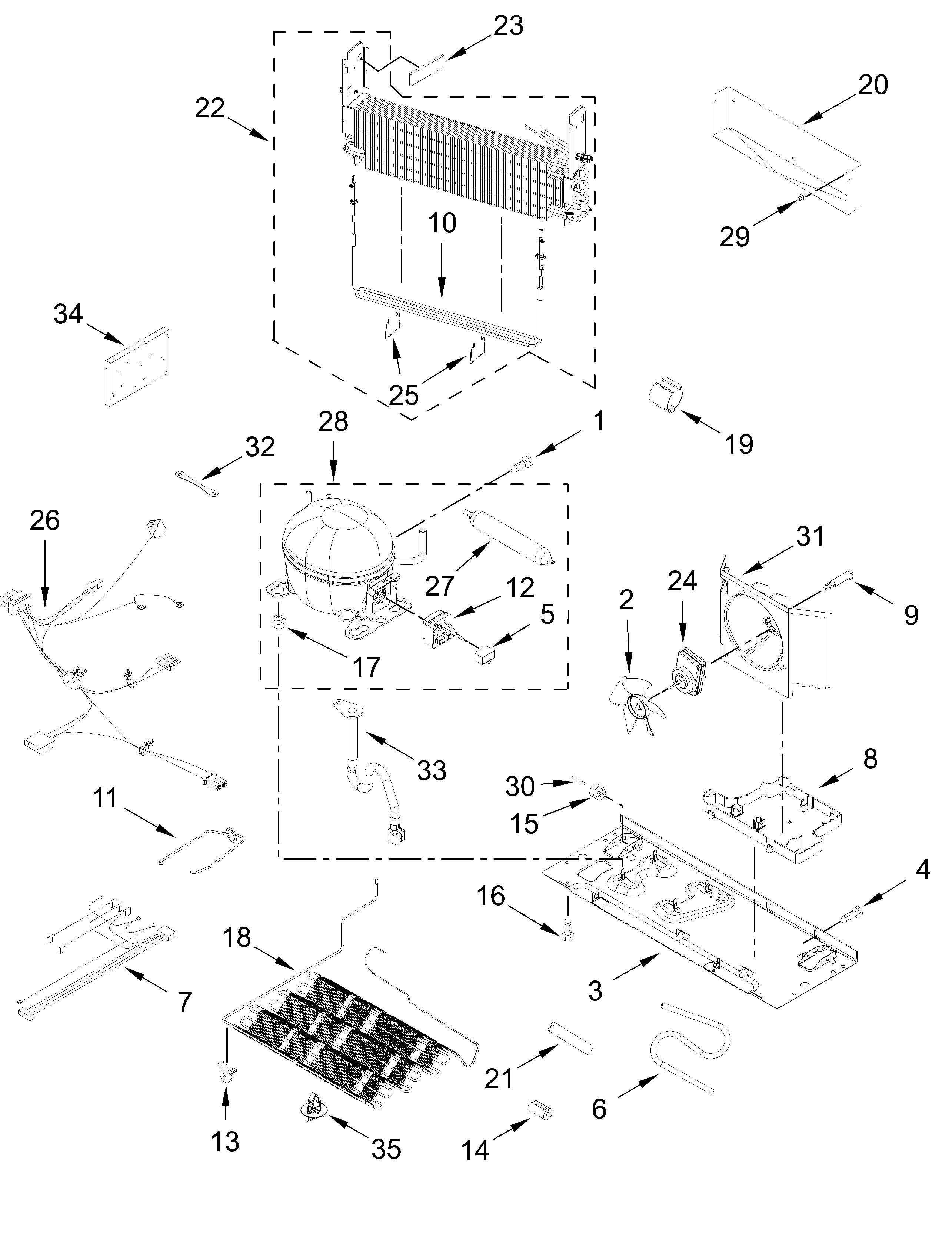

KRFC136RPS00 UNIT PARTS
Written by
in
KRFC136RPS00 UNIT PARTS
Products
Position
Product
W11506635 Whirlpool Refrigerator Valve Coupler
(Charging Tube to Compressor)
(Discharge Tube to Compressor)
(Suction Tube to Compressor)
W11504416 Whirlpool Refrigerator Coupler
W11504415 Whirlpool Refrigerator Coupler
W11504423 Whirlpool Refrigerator Coupler
W11504432 Whirlpool Refrigerator Coupler
(Heat Loop to Drier)
(Capillary Tube to Drier)
W11504447 Whirlpool Refrigerator Coupler
REFRIGERANT CHARGE
(Capillary Tube to Evaporator)
(Heat Loop to Condenser)
51 grams (R600a)
W11506623 Whirlpool Refrigerator Coupler
(Also Order the Following Lokring™ Parts)
(Suction Line to Evaporator)
W11504431 Whirlpool Microwave Coupler
W11506621 Whirlpool Refrigerator Coupler
(Discharge Tube to Condenser)
W11504445 Whirlpool Refrigerator Coupler
1
12992301 Whirlpool Refrigerator Screw
2
WP12825803 Whirlpool Refrigerator Fan Blade
3
W11727651 Whirlpool Plate Assembly
4
67006425 Whirlpool Refrigerator Screw
5
WPW10350564 Whirlpool Refrigerator Freezer Capacitor
6
TUBE
7
W11708428 Whirlpool Wire Harness
8
WPW10655368 Whirlpool Refrigerator Drip Pan
9
W10829281 Whirlpool Refrigerator Screw
10
W11547652 Whirlpool Refrigerator Heater
11
STRAP, BALE
12
W11524472 Whirlpool Refrigerator Start Device
13
WPW10137529 Whirlpool Refrigerator Grommet
14
W10852725 Whirlpool Refrigerator Grommet
15
WP67005149 Whirlpool Roller
16
Screw
17
WPW10169124 Whirlpool Refrigerator Grommet
18
CONDENSER (ALSO ORDER THE FOLLOWING LOKRING PARTS)
19
W10281329 Whirlpool Clamp
20
W11547653 Whirlpool Refrigerator Drip Tray
21
SLEEVE
22
W11598433 Whirlpool Refrigerator Evaporator Repair
23
W11451451 Whirlpool Refrigerator Gasket
24
W11613295 Whirlpool Condenser Motor
25
W11380964 Whirlpool Clip Assembly
26
HARNS-WIRE
27
W11109499 Whirlpool Refrigerator Tube
28
W11686820 Whirlpool Compressor
29
CLIP, EVAP (2)
30
67006434 Whirlpool Axle Pin
31
W11556315 Whirlpool Shroud
32
W10236396 Whirlpool Refrigerator Strap
33
W10619951 Whirlpool Drain Tube with Grommet
34
W11553819 Whirlpool Refrigerator Insulation
35
W10815863 Whirlpool Clip
←
TBX14SPKLWH 2
