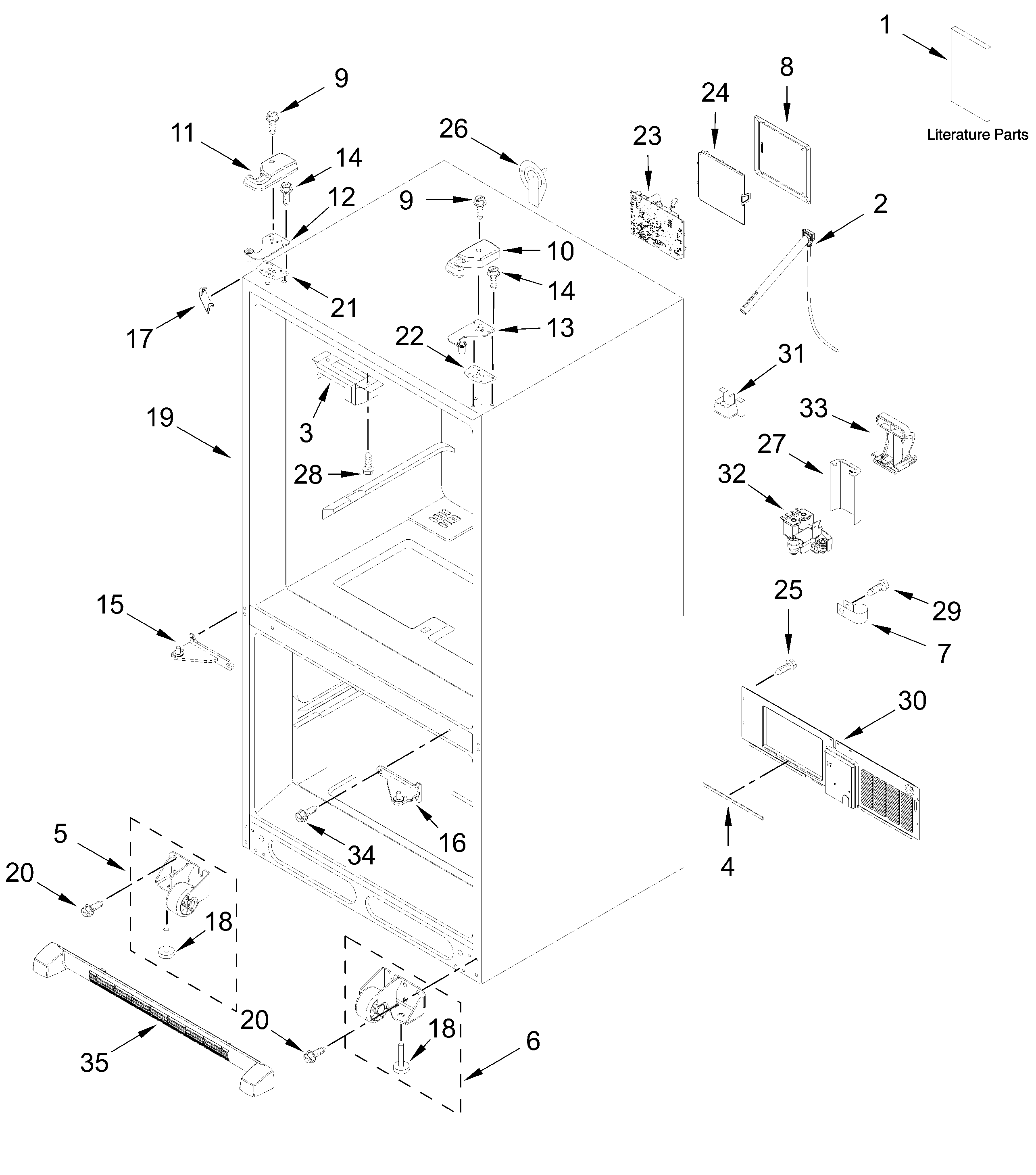

KRFC136RWH00 CABINET PARTS

Products

Position	Product
	Energy Guide
	TECH SHEET
	OWNERS MANUAL
1	Literature Parts
2	W11181718 Whirlpool Refrigerator Water Tube
3	WP67003405 Whirlpool Pivot Block
4	W11534848 Whirlpool Gasket
5	WPW10515763 Whirlpool Refrigerator Cabinet Roller
6	WPW10515762 Whirlpool Refrigerator Cabinet Roller
7	W11456069 Whirlpool Refrigerator Clamp
8	12961602 Whirlpool Refrigerator Wire Cover
9	WP8281196 Whirlpool Screw
10	67005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
11	WPW10337634 Whirlpool Refrigerator Cover
12	W11592375 Whirlpool Door Hinge
13	W11592374 Whirlpool Refrigerator Top Door Hinge
14	WP489349 Whirlpool Refrigerator Screw
15	W11642008 Whirlpool Door Hinge
16	W11642010 Whirlpool Door Hinge
17	12587703W Whirlpool Refrigerator Cover
18	WPW10141622 Whirlpool Leveler
19	Cabinet (Not A Serviceable Part)
20	67006564 Whirlpool Refrigerator Screw
21	12999501 Whirlpool Refrigerator Hinge Shim
22	12999502 Whirlpool Refrigerator Hinge Shim
23	WPW10317076-includeCORE Whirlpool WPW10317076 Refrigerator Electronic Control Board + Core
24	W10296541 Whirlpool Refrigerator Wire Cover
25	W11686675 Whirlpool Screw
26	12726003 Whirlpool Refrigerator Water Cover
27	W10208593 Whirlpool Refrigerator Valve Cover
28	W11693756 Whirlpool Screw Assembly
29	WP98165 Whirlpool Screw
30	WPW10211855 Whirlpool Refrigerator Back Cover
31	W11686793 Whirlpool Block
32	W11524655 Whirlpool Refrigerator Valve
33	W10528513 Whirlpool Tube Clamp
34	W11573362 Whirlpool Screw Assembly
35	WPW10534154 Whirlpool Refrigerator Front Grille
