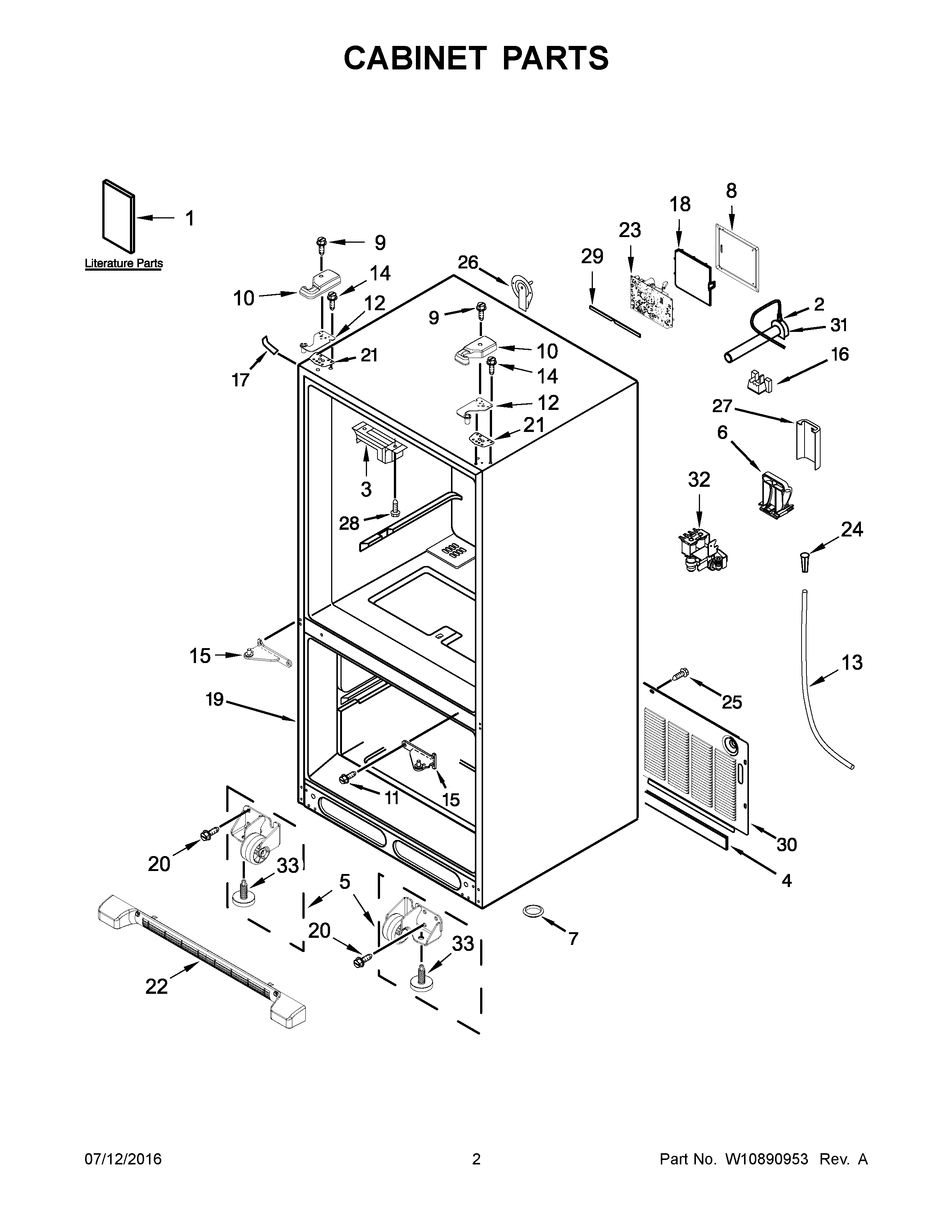

KRFC300EBS00 02 – CABINET PARTS

Products

Position	Product
1	USE AND CARE GUIDE
1C	TECH SHEET (FRENCH)
1A	ENERGY GUIDE
1B	TECH SHEET (ENGLISH)
2	WPM0114003 Whirlpool Microwave Speed Clip Clamp
3	WP67003405 Whirlpool Pivot Block
4	B5759655 Whirlpool Refrigerator Gasket
5A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
5	WPW10515763 Whirlpool Refrigerator Cabinet Roller
6	W10528513 Whirlpool Tube Clamp
7	A3076901 Whirlpool Refrigerator Plug
8	12961602 Whirlpool Refrigerator Wire Cover
9	WP8281196 Whirlpool Screw
10A	WP67005956 Whirlpool Refrigerator Cover
10	W10337647 Whirlpool Refrigerator Cover
11	W11573362 Whirlpool Screw Assembly
12A	W11592374 Whirlpool Refrigerator Top Door Hinge
12	W11592375 Whirlpool Door Hinge
13	W11120581 Whirlpool Refrigerator Water Tube
14	WP489349 Whirlpool Refrigerator Screw
15	W10918164 Whirlpool Refrigerator Door Hinge
15A	W10918168 Whirlpool Refrigerator Door Hinge
16	W11686793 Whirlpool Block
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	W10296541 Whirlpool Refrigerator Wire Cover
19	CABINET (NOT A SERVICEABLE PART)
20	67006564 Whirlpool Refrigerator Screw
21	12999501 Whirlpool Refrigerator Hinge Shim
21A	12999502 Whirlpool Refrigerator Hinge Shim
22	WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23	WPW10317076-includeCORE Whirlpool WPW10317076 Refrigerator Electronic Control Board + Core
24	WPA3223101 Whirlpool Refrigerator Insert PL
25	67006425 Whirlpool Refrigerator Screw
26	12726003 Whirlpool Refrigerator Water Cover
27	W10208593 Whirlpool Refrigerator Valve Cover
28	W10854958 Whirlpool Refrigerator Screw
29	GASKET, HV BOX
30	WPW10211855 Whirlpool Refrigerator Back Cover
31	W11176463 Whirlpool Refrigerator Water Tube
32	VALVE-WATER INLET REFR
33	WPW10141622 Whirlpool Leveler
