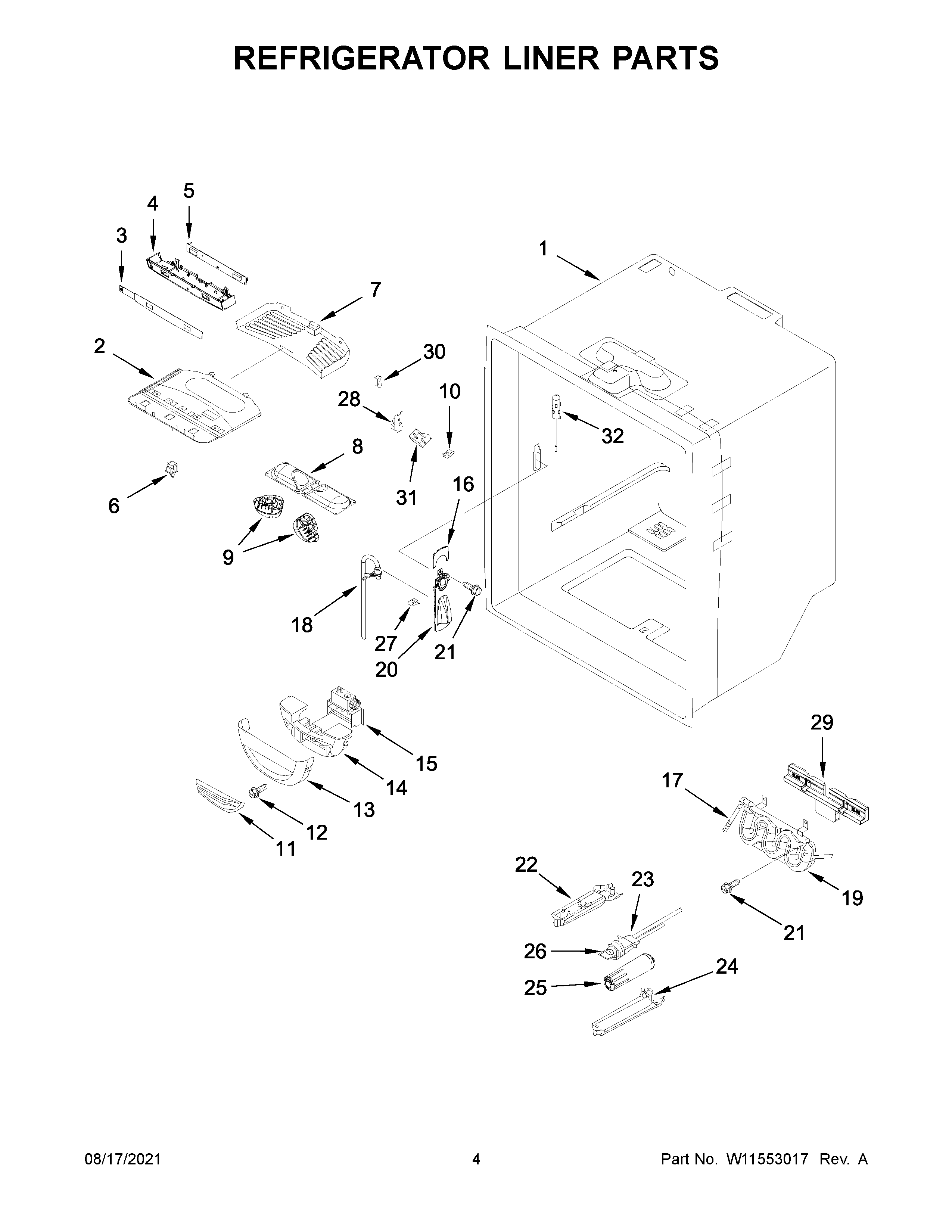

KRFC300EBS04 03 – REFRIGERATOR LINER PARTS

KRFC300EBS04 03 – REFRIGERATOR LINER PARTS

Written by

in

KRFC300EBS04 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10464764 Whirlpool Refrigerator Housing
3W11712701 Whirlpool Overlay
4W11416469 Whirlpool Refrigerator Housing
5W11524656-includeCORE Whirlpool W11524656 Refrigerator Electronic Control Board
6W11123941 Whirlpool Refrigerator Switch
7W11284721 Whirlpool Refrigerator Cover
8W10443023 Whirlpool Refrigerator Housing
9MODULE
1067002816 Whirlpool Refrigerator Waterline Clip
1167003900 Whirlpool Refrigerator Insert Damper Cover
12WP400021-1 Whirlpool Screw
13WP12806701 Whirlpool Refrigerator Box Cover
14INSULATION
15CONTROL DAMPER
17WP2300868 Whirlpool Refrigerator Fitting
18W11677725 Whirlpool Refrigerator Guide
19W11229977 Whirlpool Refrigerator Reservoir
20W11519867 Whirlpool Refrigerator Cover
21W10854958 Whirlpool Refrigerator Screw
22PLATE-FIL
23W11346623 Whirlpool Refrigerator Water Filter Head
