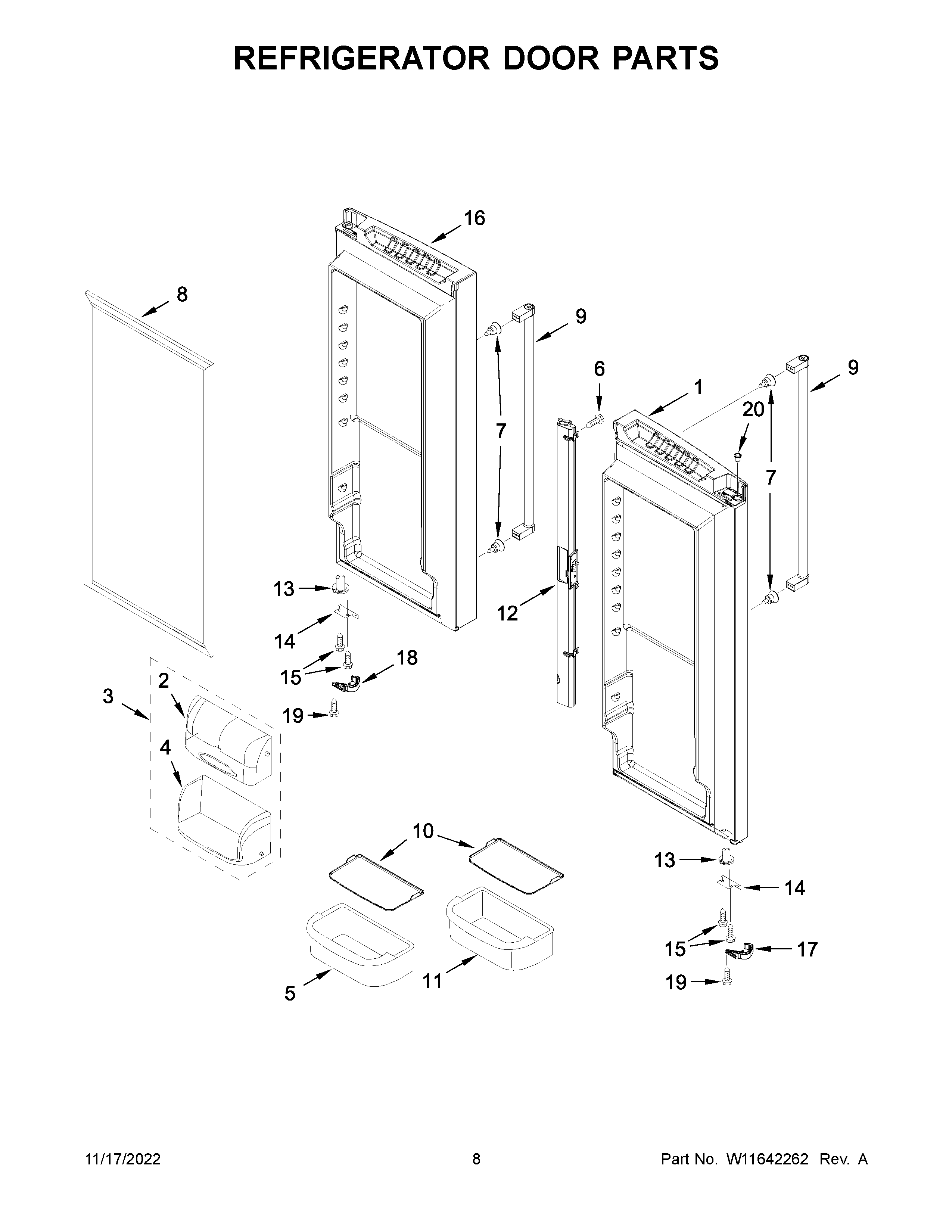

KRFC300EBS06 05 – REFRIGERATOR DOOR PARTS

KRFC300EBS06 05 – REFRIGERATOR DOOR PARTS

Written by

in

KRFC300EBS06 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W10919641 Whirlpool Refrigerator Door Assembly
2WP67003637 Whirlpool Dairy Door
3WP12744905 Whirlpool Refrigerator Compressor Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6W11311945 Whirlpool Refrigerator Screw
7W11449276 Whirlpool Handle Support
8GASKET-FIP
9W11483532 Whirlpool Refrigerator Handle
10AW11402028 Whirlpool Refrigerator Mat
10WPW10450021 Whirlpool Refrigerator Mat
11WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
12WP12722803B Whirlpool Door Guide
13WP67003639 Whirlpool Refrigerator Closer
14W11708403 Whirlpool Door Stop
15WP98165 Whirlpool Screw
16W10919633 Whirlpool Refrigerator Door Assembly
17W10918170 Whirlpool Refrigerator Closer
18W10918171 Whirlpool Refrigerator Closer
19WP67006908 Whirlpool Refrigerator Screw
2012996601 Whirlpool Refrigerator Bushing Clip
