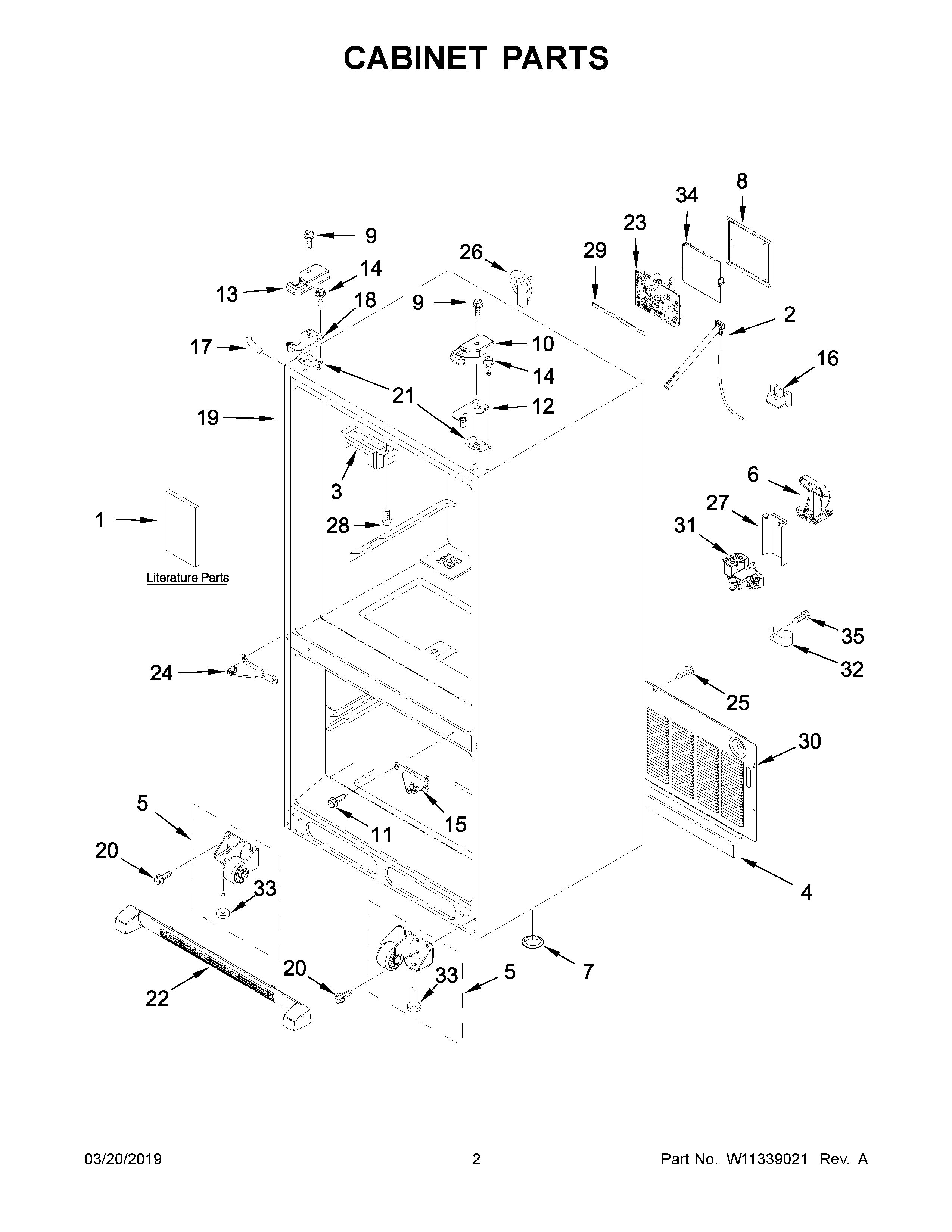

KRFC300ESS03 02 – CABINET PARTS

Products

Position	Product
1C	TECH SHEET (FRENCH)
1	USE AND CARE GUIDE
1B	TECH SHEET (ENGLISH)
1A	ENERGY GUIDE
2	W11181718 Whirlpool Refrigerator Water Tube
3	WP67003405 Whirlpool Pivot Block
4	W11534848 Whirlpool Gasket
5A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
5	WPW10515763 Whirlpool Refrigerator Cabinet Roller
6	W10528513 Whirlpool Tube Clamp
7	A3076901 Whirlpool Refrigerator Plug
8	12961602 Whirlpool Refrigerator Wire Cover
9	WP8281196 Whirlpool Screw
10	67005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
10A	WP67005956 Whirlpool Refrigerator Cover
10B	WPW10191117 Whirlpool Refrigerator Cover
11	W11573362 Whirlpool Screw Assembly
12	W11592374 Whirlpool Refrigerator Top Door Hinge
13	WPW10337634 Whirlpool Refrigerator Cover
13B	WPW10337648 Whirlpool Refrigerator Cover
13A	W10337647 Whirlpool Refrigerator Cover
14	WP489349 Whirlpool Refrigerator Screw
15B	HINGE-DOOR
15A	W10918168 Whirlpool Refrigerator Door Hinge
15	W10918117 Whirlpool Refrigerator Door Hinge
16	W11686793 Whirlpool Block
17A	67003485 Whirlpool Refrigerator Corner Cover (Black)
17B	WP12587703AP Whirlpool Refrigerator Filler
17	12587703W Whirlpool Refrigerator Cover
18	W11592375 Whirlpool Door Hinge
19	CABINET (NOT A SERVICEABLE PART)
20	67006564 Whirlpool Refrigerator Screw
21A	12999502 Whirlpool Refrigerator Hinge Shim
21	12999501 Whirlpool Refrigerator Hinge Shim
22A	WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
22	WPW10534154 Whirlpool Refrigerator Front Grille
22B	WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23	WPW10317076-includeCORE Whirlpool WPW10317076 Refrigerator Electronic Control Board + Core
24A	W10918166 Whirlpool Refrigerator Door Hinge
24	W10918115 Whirlpool Refrigerator Door Hinge
24B	W10917991 Whirlpool Refrigerator Door Hinge
25	SCREW
26	12726003 Whirlpool Refrigerator Water Cover
27	W10208593 Whirlpool Refrigerator Valve Cover
28	W11693756 Whirlpool Screw Assembly
29	WP98165 Whirlpool Screw
30	WPW10211855 Whirlpool Refrigerator Back Cover
31	VALVE-WATER INLET REFR
32	W11456069 Whirlpool Refrigerator Clamp
33	WPW10141622 Whirlpool Leveler
34	W11226688 Whirlpool Refrigerator Cover
