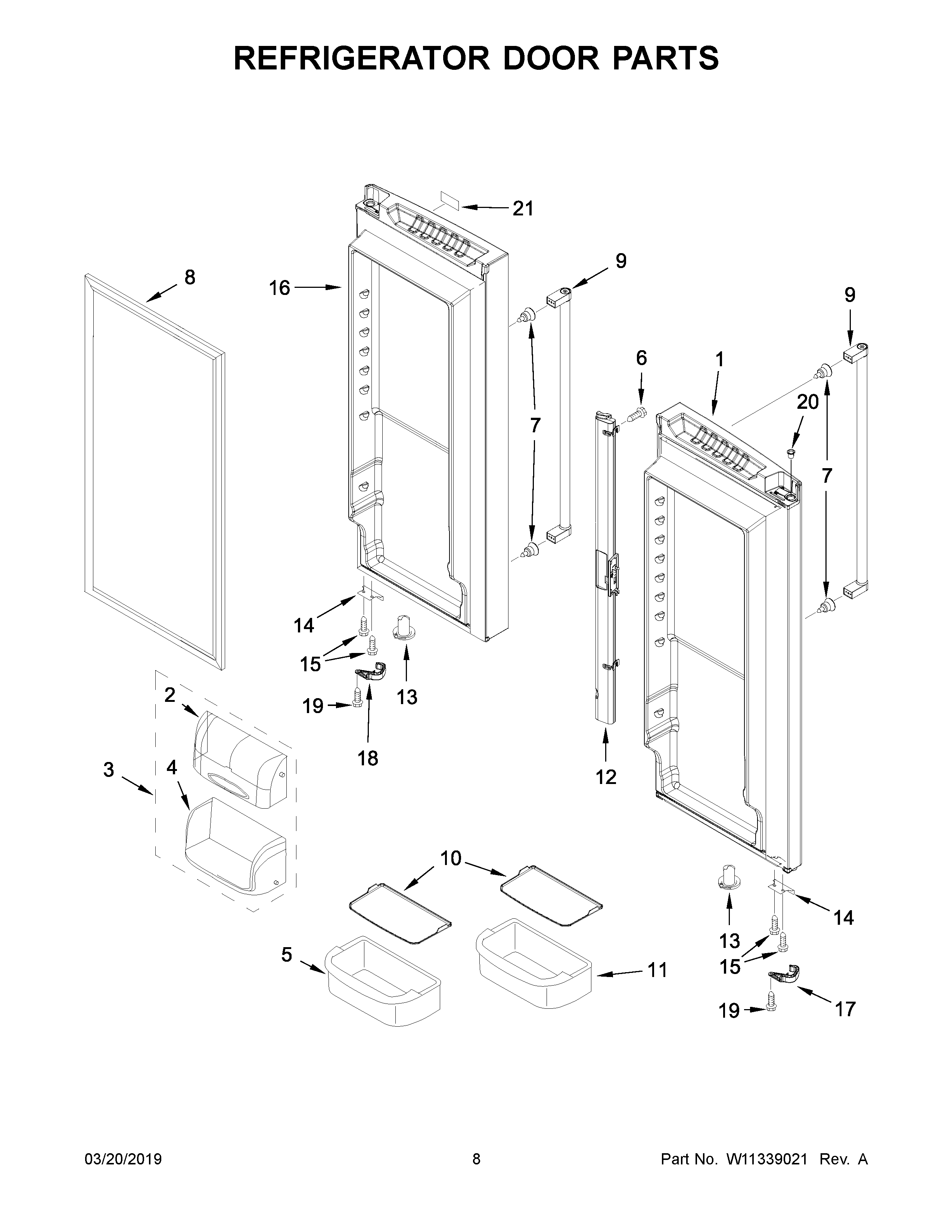

KRFC300ESS03 05 – REFRIGERATOR DOOR PARTS

KRFC300ESS03 05 – REFRIGERATOR DOOR PARTS

Written by

in

KRFC300ESS03 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1B13107888SQ Whirlpool Refrigerator DOR-FIP Stainless Steel
1A13107888BQ Whirlpool Refrigerator Black Foam In Place Doorack
113107888WQ Whirlpool Refrigerator DOR FIP WH
2WP67003637 Whirlpool Dairy Door
3WP12744905 Whirlpool Refrigerator Compressor Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6W11311945 Whirlpool Refrigerator Screw
7W11449276 Whirlpool Handle Support
8W10830189 Whirlpool Refrigerator Door Gasket
8AGASKET-FIP
8BGASKET-FIP
9W11483532 Whirlpool Refrigerator Handle
10WPW10450021 Whirlpool Refrigerator Mat
10AW11402028 Whirlpool Refrigerator Mat
11WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
12RAIL-MULLN WHITE
12AWP12722803B Whirlpool Door Guide
12BWP12722803AP Whirlpool Refrigerator Mullion Rail
13AWP67003639 Whirlpool Refrigerator Closer
13WP67003638 Whirlpool Closing Cam
13BWP12028505AP Whirlpool Closing Cam
14BW11703060 Whirlpool Door Stop
1412968202W Whirlpool Refrigerator Door Stop
14AW11708403 Whirlpool Door Stop
15WP98165 Whirlpool Screw
1613107887WQ Whirlpool Refrigerator FIP Door White
16B13107887SQ Whirlpool Refrigerator Foam In Place Door Stainless Steel
16A13107887BQ Whirlpool Refrigerator Black Foam In Place Door
17AW10918170 Whirlpool Refrigerator Closer
17BW10918008 Whirlpool Refrigerator Closer
17W10918118 Whirlpool Refrigerator Door Closer
18AW10918171 Whirlpool Refrigerator Closer
18BW10918010 Whirlpool Refrigerator Closer
18W10918120 Whirlpool Refrigerator Closer
19WP67006908 Whirlpool Refrigerator Screw
2012996601 Whirlpool Refrigerator Bushing Clip
