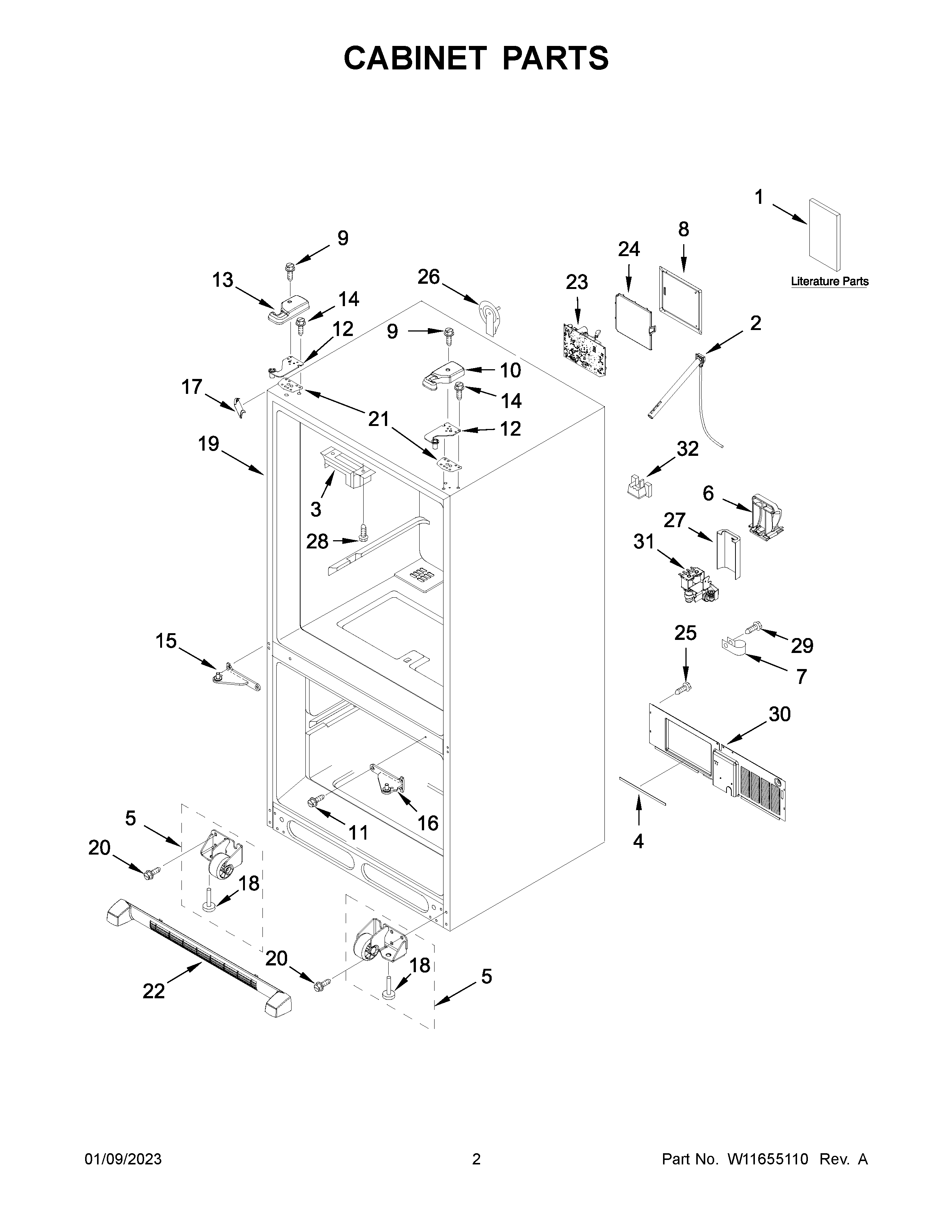

KRFC300ESS09 02 – CABINET PARTS

Products

Position	Product
1A	ENERGY GUIDE
1	USE AND CARE GUIDE
1B	TECH SHEET
2	W11181718 Whirlpool Refrigerator Water Tube
3	WP67003405 Whirlpool Pivot Block
4	W11534848 Whirlpool Gasket
5A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
5	WPW10515763 Whirlpool Refrigerator Cabinet Roller
6	W10528513 Whirlpool Tube Clamp
7	W11456069 Whirlpool Refrigerator Clamp
8	12961602 Whirlpool Refrigerator Wire Cover
9	WP8281196 Whirlpool Screw
10	WPW10191117 Whirlpool Refrigerator Cover
11	W11573362 Whirlpool Screw Assembly
12	W11592375 Whirlpool Door Hinge
12A	W11592374 Whirlpool Refrigerator Top Door Hinge
13	WPW10337648 Whirlpool Refrigerator Cover
14	WP489349 Whirlpool Refrigerator Screw
15	W10917991 Whirlpool Refrigerator Door Hinge
16	HINGE-DOOR
17	WP12587703AP Whirlpool Refrigerator Filler
18	WPW10141622 Whirlpool Leveler
19	CABINET (NOT A SERVICEABLE PART)
20	67006564 Whirlpool Refrigerator Screw
21A	12999502 Whirlpool Refrigerator Hinge Shim
21	12999501 Whirlpool Refrigerator Hinge Shim
22	WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23	WPW10317076-includeCORE Whirlpool WPW10317076 Refrigerator Electronic Control Board + Core
24	W11226688 Whirlpool Refrigerator Cover
25	SCREW
26	12726003 Whirlpool Refrigerator Water Cover
27	W10208593 Whirlpool Refrigerator Valve Cover
28	W11693756 Whirlpool Screw Assembly
29	WP98165 Whirlpool Screw
30	WPW10211855 Whirlpool Refrigerator Back Cover
31	W11524655 Whirlpool Refrigerator Valve
32	W11686793 Whirlpool Block
