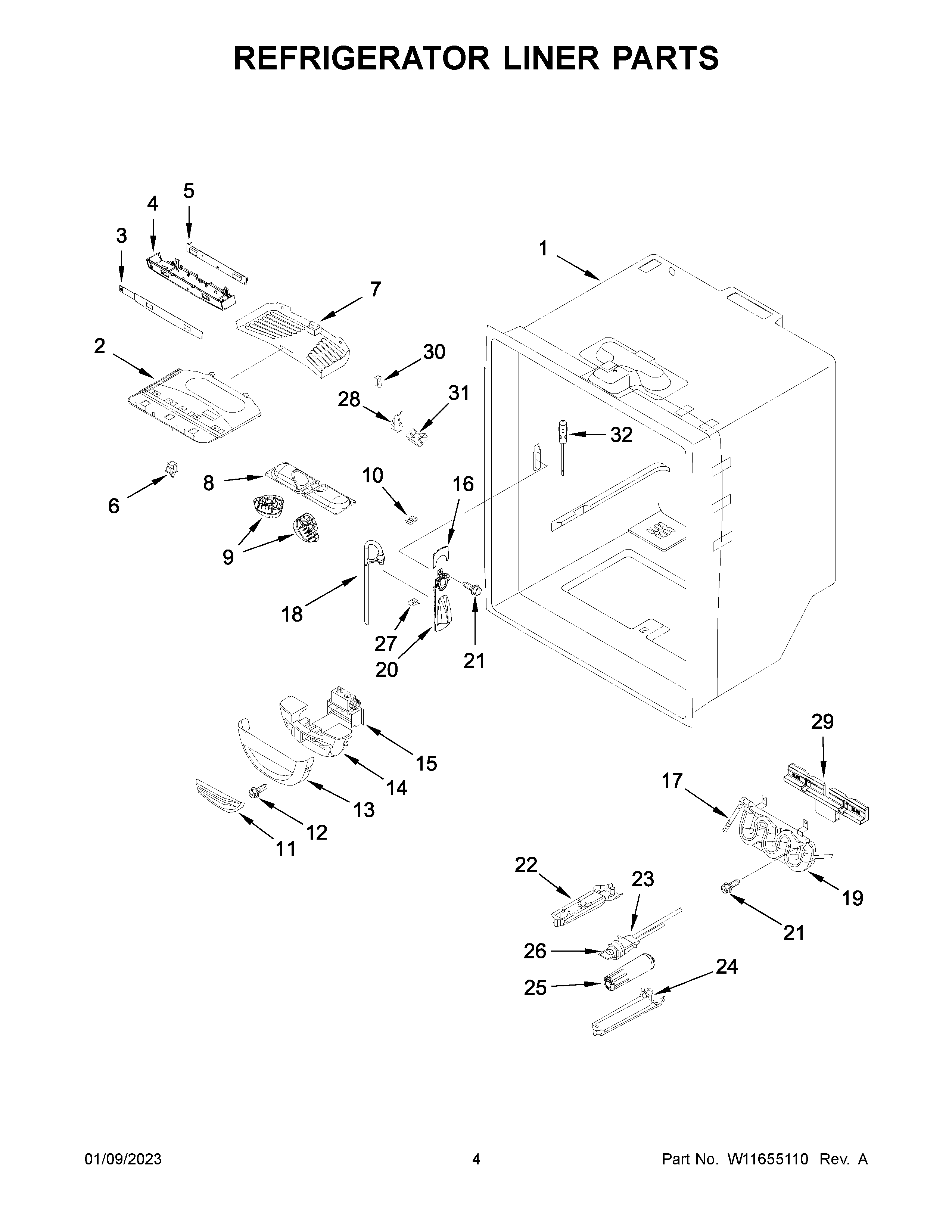

KRFC300ESS09 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11642013 Whirlpool Wire Harness
2	W10464764 Whirlpool Refrigerator Housing
3	W11712701 Whirlpool Overlay
4	W11416469 Whirlpool Refrigerator Housing
5	W11642241-includeCORE Whirlpool W11642241 Refrigerator Electronic Control Board + Core
6	W11123941 Whirlpool Refrigerator Switch
7	W11284721 Whirlpool Refrigerator Cover
8	W10443023 Whirlpool Refrigerator Housing
9	MODULE
10	67002816 Whirlpool Refrigerator Waterline Clip
11	67003900 Whirlpool Refrigerator Insert Damper Cover
12	WP400021-1 Whirlpool Screw
13	WP12806701 Whirlpool Refrigerator Box Cover
14	INSULATION
15	CONTROL DAMPER
16	W11519867 Whirlpool Refrigerator Cover
17	WP2300868 Whirlpool Refrigerator Fitting
18	W11677725 Whirlpool Refrigerator Guide
19	W11229977 Whirlpool Refrigerator Reservoir
21	W10854958 Whirlpool Refrigerator Screw
22	PLATE-FIL
23	W11346623 Whirlpool Refrigerator Water Filter Head
24	WP12568001 Whirlpool Filter Cover
25	everydropÂ® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
26	W11395888 Whirlpool Refrigerator Bypass Filter Cap
27	W10819546 Whirlpool Refrigerator Clip
28	W11515355 Whirlpool Refrigerator Plate
29	WPW10163893 Whirlpool Refrigerator Insulation
30	W11527839 Whirlpool Switch
31	W11527411 Whirlpool Refrigerator Foam Seal
32	W11690896 Whirlpool Thermistor
