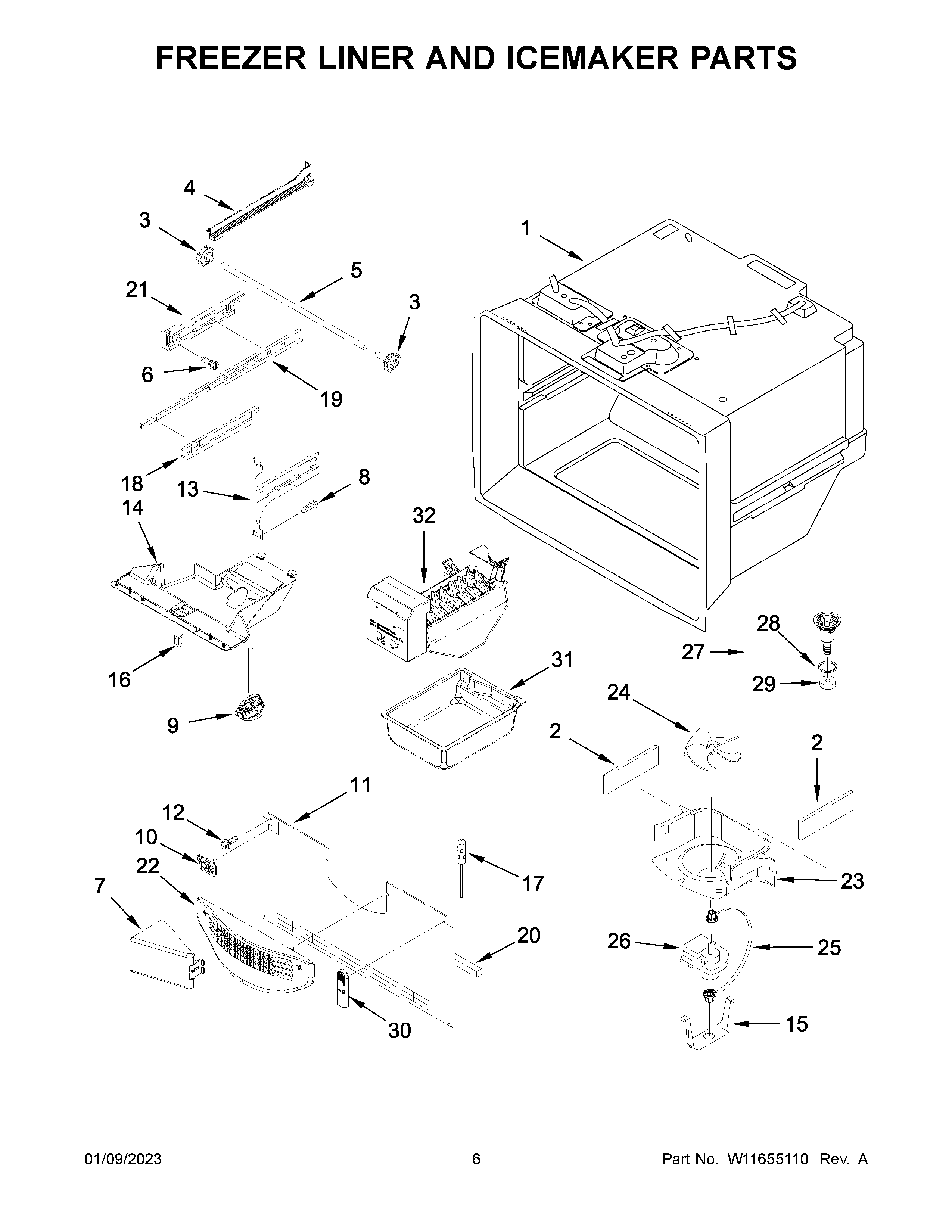

KRFC300ESS09 04 – FREEZER LINER AND ICEMAKER PARTS

KRFC300ESS09 04 – FREEZER LINER AND ICEMAKER PARTS

Written by

in

KRFC300ESS09 04 – FREEZER LINER AND ICEMAKER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10856123 Whirlpool Refrigerator Gasket
312002497 Whirlpool Refrigerator Drawer Gear Kit
4W10516605 Whirlpool Refrigerator Rail
4AW10516604 Whirlpool Refrigerator Rail
5W11028221 Whirlpool Refrigerator Shaft
6WP489474 Whirlpool Refrigerator Screw
7W10157765 Whirlpool Refrigerator Deflector
8WP98165 Whirlpool Screw
9MODULE
10GUIDE, FILL TUBE
11W11727809 Whirlpool Evaporator Cover
1267006425 Whirlpool Refrigerator Screw
13WPW10330994 Whirlpool Refrigerator Bracket
13AWPW10330995 Whirlpool Refrigerator Bracket
14WPW10277025 Whirlpool Refrigerator Housing
15CLIP, EVAPORATOR MOTOR
16W11396033 Whirlpool Refrigerator Rocker Switch
17W10316760 Whirlpool Thermistor Kit
18WPW10281115 Whirlpool Refrigerator Bracket
18AWPW10281116 Whirlpool Bracket
19W11658403 Whirlpool Slide
20W11159728 Whirlpool Refrigerator Gasket
21AWPW10284693 Whirlpool Mounting Bracket
21WPW10284692 Whirlpool Refrigerator Bracket
22WPW10175909 Whirlpool Grille Assembly
23WPW10167023 Whirlpool Refrigerator Shroud
24WP2169142 Whirlpool Fan Blade
25W11690160 Whirlpool Grommet
26MOTOR-EVAP
27W10815413 Whirlpool Refrigerator Funnel
28WPM0500703 Whirlpool Refrigerator O-Ring Seal
29WPB8381501 Whirlpool Refrigerator Door Gasket
30WP67003924 Whirlpool Refrigerator Cover
31WPW10171529 Whirlpool Refrigerator Ice Pan
32W11692144 Whirlpool Ice Maker
