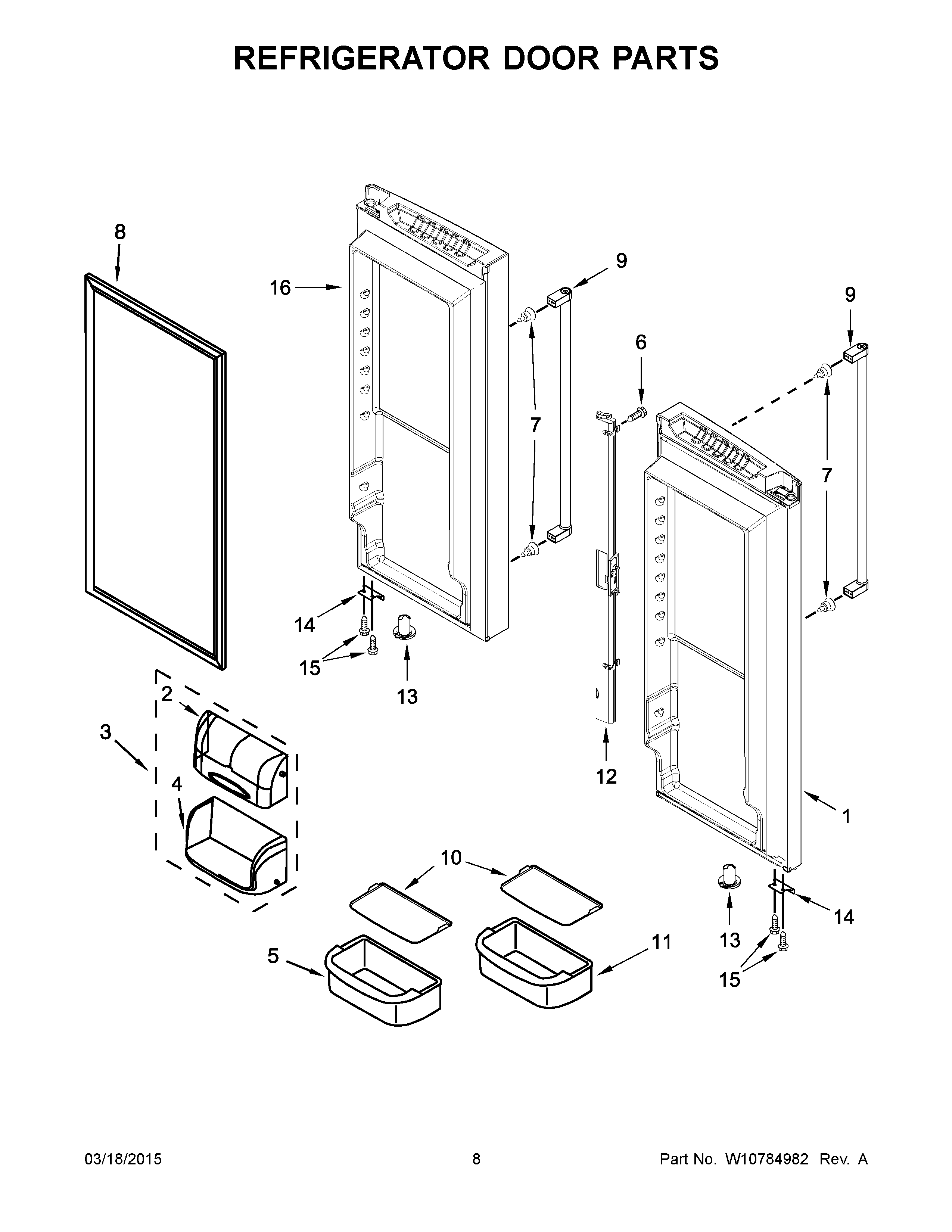

KRFC300EWH00 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1B	13107888SQ Whirlpool Refrigerator DOR-FIP Stainless Steel
1A	13107888BQ Whirlpool Refrigerator Black Foam In Place Doorack
1	13107888WQ Whirlpool Refrigerator DOR FIP WH
2	WP67003637 Whirlpool Dairy Door
3	WP12744905 Whirlpool Refrigerator Compressor Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6	W11311945 Whirlpool Refrigerator Screw
7	WPW10661886 Whirlpool Refrigerator Door Handle Screw
8B	GASKET-FIP
8A	GASKET-FIP
8	W10830189 Whirlpool Refrigerator Door Gasket
9	W11483532 Whirlpool Refrigerator Handle
10A	W11402028 Whirlpool Refrigerator Mat
10	WPW10450021 Whirlpool Refrigerator Mat
11	WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
12	RAIL-MULLN WHITE
12B	WP12722803AP Whirlpool Refrigerator Mullion Rail
12A	WP12722803B Whirlpool Door Guide
13	WP67003638 Whirlpool Closing Cam
13B	WP12028505AP Whirlpool Closing Cam
13A	WP67003639 Whirlpool Refrigerator Closer
14	12968202W Whirlpool Refrigerator Door Stop
14B	W11703060 Whirlpool Door Stop
14A	W11708403 Whirlpool Door Stop
15	WP98165 Whirlpool Screw
16A	13107887BQ Whirlpool Refrigerator Black Foam In Place Door
16B	13107887SQ Whirlpool Refrigerator Foam In Place Door Stainless Steel
16	13107887WQ Whirlpool Refrigerator FIP Door White
