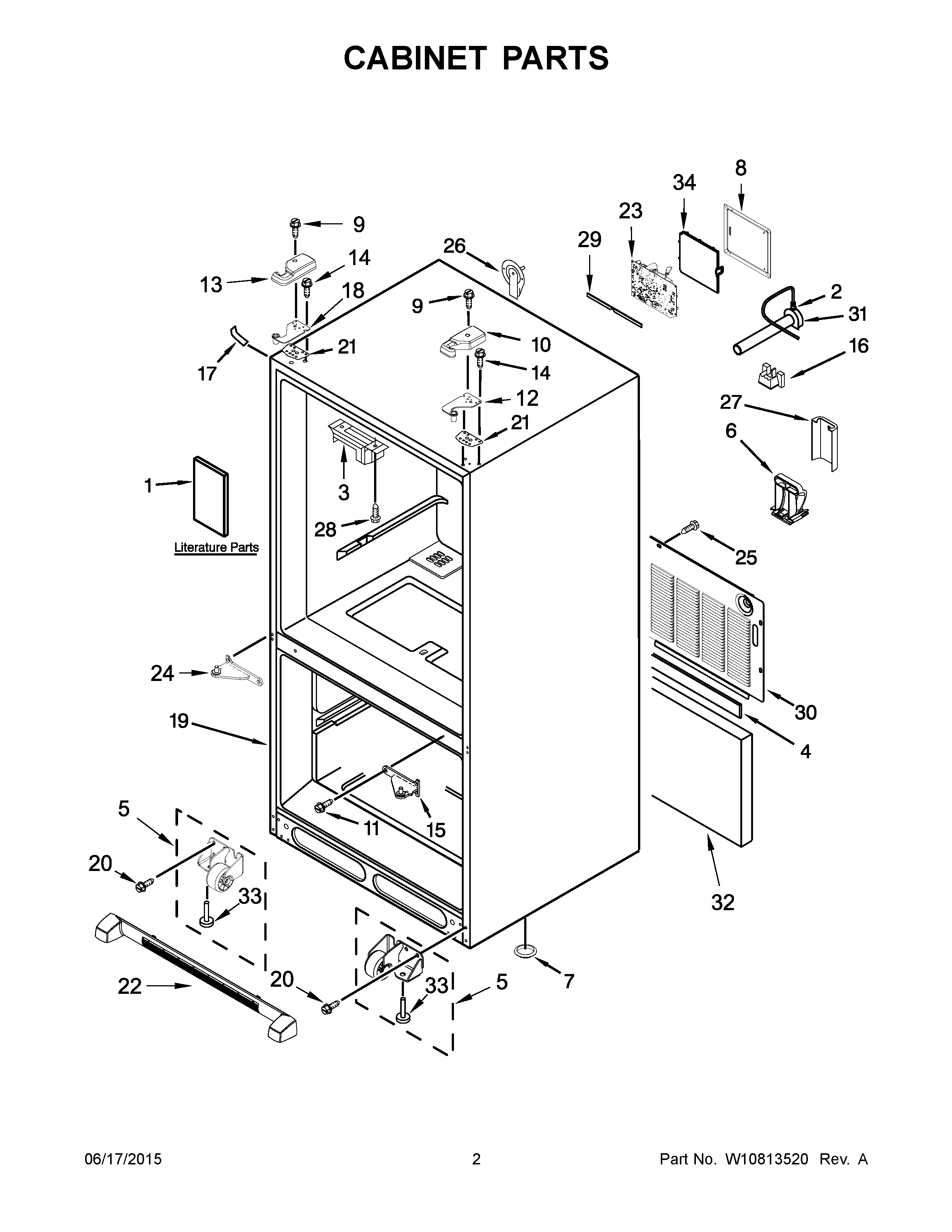

KRFC300EWH01 02 – CABINET PARTS

KRFC300EWH01 02 – CABINET PARTS

Written by

in

KRFC300EWH01 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1USE AND CARE GUIDE
1CTECH SHEET (FRENCH)
1BTECH SHEET (ENGLISH)
2WPM0114003 Whirlpool Microwave Speed Clip Clamp
3WP67003405 Whirlpool Pivot Block
4B5759655 Whirlpool Refrigerator Gasket
5WPW10515763 Whirlpool Refrigerator Cabinet Roller
5AWPW10515762 Whirlpool Refrigerator Cabinet Roller
6W10528513 Whirlpool Tube Clamp
7A3076901 Whirlpool Refrigerator Plug
8BOX, HV CONTROL
9WP8281196 Whirlpool Screw
1067005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
10AWP67005956 Whirlpool Refrigerator Cover
11WP67006380 Whirlpool Screw
12W11592374 Whirlpool Refrigerator Top Door Hinge
13AW10337647 Whirlpool Refrigerator Cover
13WPW10337634 Whirlpool Refrigerator Cover
14WP489349 Whirlpool Refrigerator Screw
1513000002WD Whirlpool Refrigerator Door Hinge
15AW10918168 Whirlpool Refrigerator Door Hinge
16W11686793 Whirlpool Block
17A67003485 Whirlpool Refrigerator Corner Cover (Black)
1712587703W Whirlpool Refrigerator Cover
18W11592375 Whirlpool Door Hinge
19CABINET (NOT A SERVICEABLE PART)
2067006564 Whirlpool Refrigerator Screw
2112999501 Whirlpool Refrigerator Hinge Shim
21A12999502 Whirlpool Refrigerator Hinge Shim
22WPW10534154 Whirlpool Refrigerator Front Grille
22AWPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23WPW10317076-includeCORE Whirlpool WPW10317076 Refrigerator Electronic Control Board + Core
24AW10918164 Whirlpool Refrigerator Door Hinge
24W10918113 Whirlpool Refrigerator Door Hinge
2567006425 Whirlpool Refrigerator Screw
2612726003 Whirlpool Refrigerator Water Cover
27W10208593 Whirlpool Refrigerator Valve Cover
28W10854958 Whirlpool Refrigerator Screw
29GASKET, HV BOX
30WPW10211855 Whirlpool Refrigerator Back Cover
31W11176463 Whirlpool Refrigerator Water Tube
32INSULATION, SOUND
33WPW10141622 Whirlpool Leveler
34W11226688 Whirlpool Refrigerator Cover
