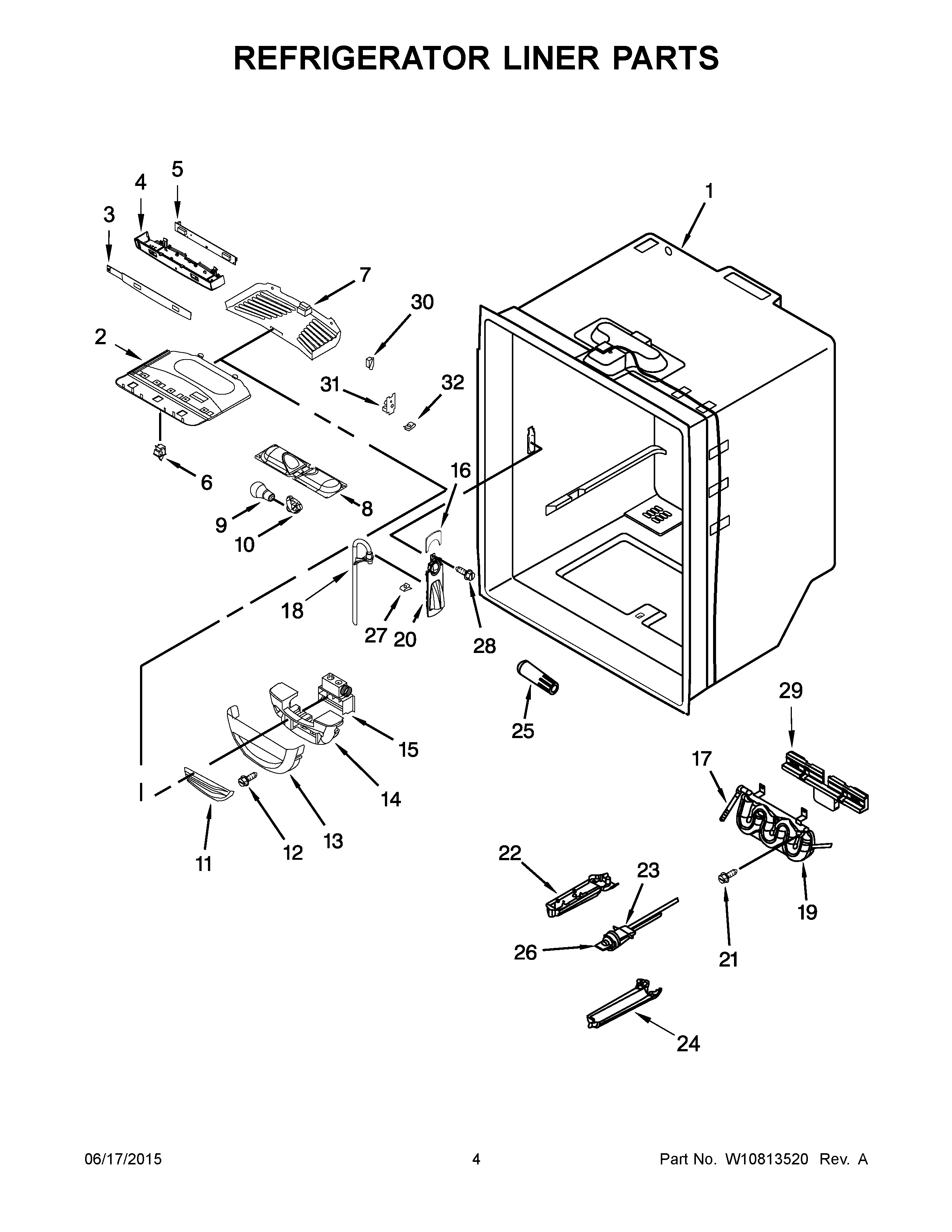

KRFC300EWH01 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	WPW10224292 Whirlpool Refrigerator Wire Harness
2	W10464764 Whirlpool Refrigerator Housing
3	W11712701 Whirlpool Overlay
4	W11416469 Whirlpool Refrigerator Housing
5	WPW10746274-includeCORE Whirlpool WPW10746274 Refrigerator Electronic Control Board + Core
6	W11384469 Whirlpool Door Switch
7	W11284721 Whirlpool Refrigerator Cover
8	W10443023 Whirlpool Refrigerator Housing
9	W11338583 Whirlpool Light Bulb
10	W11447232 Whirlpool Refrigerator Socket
11	67003900 Whirlpool Refrigerator Insert Damper Cover
12	WP400021-1 Whirlpool Screw
13	WP12806701 Whirlpool Refrigerator Box Cover
14	INSULATION
15	CONTROL DAMPER
16	W11519867 Whirlpool Refrigerator Cover
17	WP2300868 Whirlpool Refrigerator Fitting
18	W11677725 Whirlpool Refrigerator Guide
19	W11229977 Whirlpool Refrigerator Reservoir
20	WPW10585703 Whirlpool Refrigerator Cover
21	WP67006415 Whirlpool Refrigerator Screw
22	PLATE-FIL
23	W11346623 Whirlpool Refrigerator Water Filter Head
24	WP12568001 Whirlpool Filter Cover
25	everydropÂ® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
26	W11395888 Whirlpool Refrigerator Bypass Filter Cap
27	W10819546 Whirlpool Refrigerator Clip
28	67006425 Whirlpool Refrigerator Screw
29	WPW10163893 Whirlpool Refrigerator Insulation
30	WP12575501 Whirlpool Refrigerator Micro Switch
31	W11515355 Whirlpool Refrigerator Plate
32	67002816 Whirlpool Refrigerator Waterline Clip
