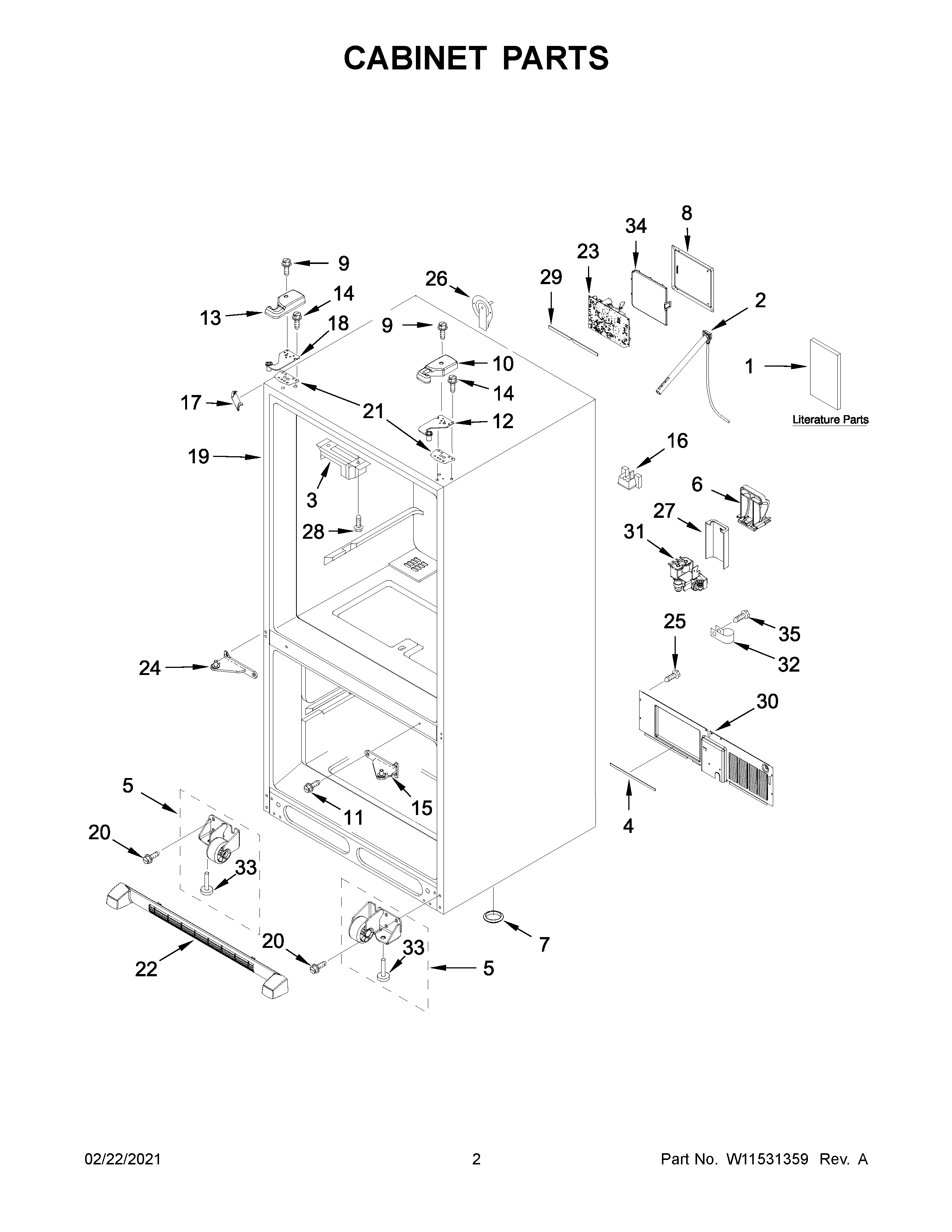

KRFC300EWH04 02 – CABINET PARTS

Products

PositionProduct
1USE AND CARE GUIDE
1AENERGY GUIDE
1CTECH SHEET (FRENCH)
1BTECH SHEET (ENGLISH)
2W11181718 Whirlpool Refrigerator Water Tube
3WP67003405 Whirlpool Pivot Block
4GASKET
5WPW10515763 Whirlpool Refrigerator Cabinet Roller
5AWPW10515762 Whirlpool Refrigerator Cabinet Roller
6W10528513 Whirlpool Tube Clamp
7A3076901 Whirlpool Refrigerator Plug
812961602 Whirlpool Refrigerator Wire Cover
9WP8281196 Whirlpool Screw
1067005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
11W11573362 Whirlpool Screw Assembly
12W11592374 Whirlpool Refrigerator Top Door Hinge
13WPW10337634 Whirlpool Refrigerator Cover
14WP489349 Whirlpool Refrigerator Screw
15W10918117 Whirlpool Refrigerator Door Hinge
16W11686793 Whirlpool Block
1712587703W Whirlpool Refrigerator Cover
18W11592375 Whirlpool Door Hinge
19CABINET (NOT A SERVICEABLE PART)
2067006564 Whirlpool Refrigerator Screw
21A12999502 Whirlpool Refrigerator Hinge Shim
2112999501 Whirlpool Refrigerator Hinge Shim
22WPW10534154 Whirlpool Refrigerator Front Grille
23WPW10317076-includeCORE Whirlpool WPW10317076 Refrigerator Electronic Control Board + Core
24W10918115 Whirlpool Refrigerator Door Hinge
25SCREW
2612726003 Whirlpool Refrigerator Water Cover
27W10208593 Whirlpool Refrigerator Valve Cover
28W11693756 Whirlpool Screw Assembly
29GASKET, HV BOX
30WPW10211855 Whirlpool Refrigerator Back Cover
31VALVE-WATER INLET REFR
32W11456069 Whirlpool Refrigerator Clamp
33WPW10141622 Whirlpool Leveler
34W11226688 Whirlpool Refrigerator Cover
35WP98165 Whirlpool Screw
