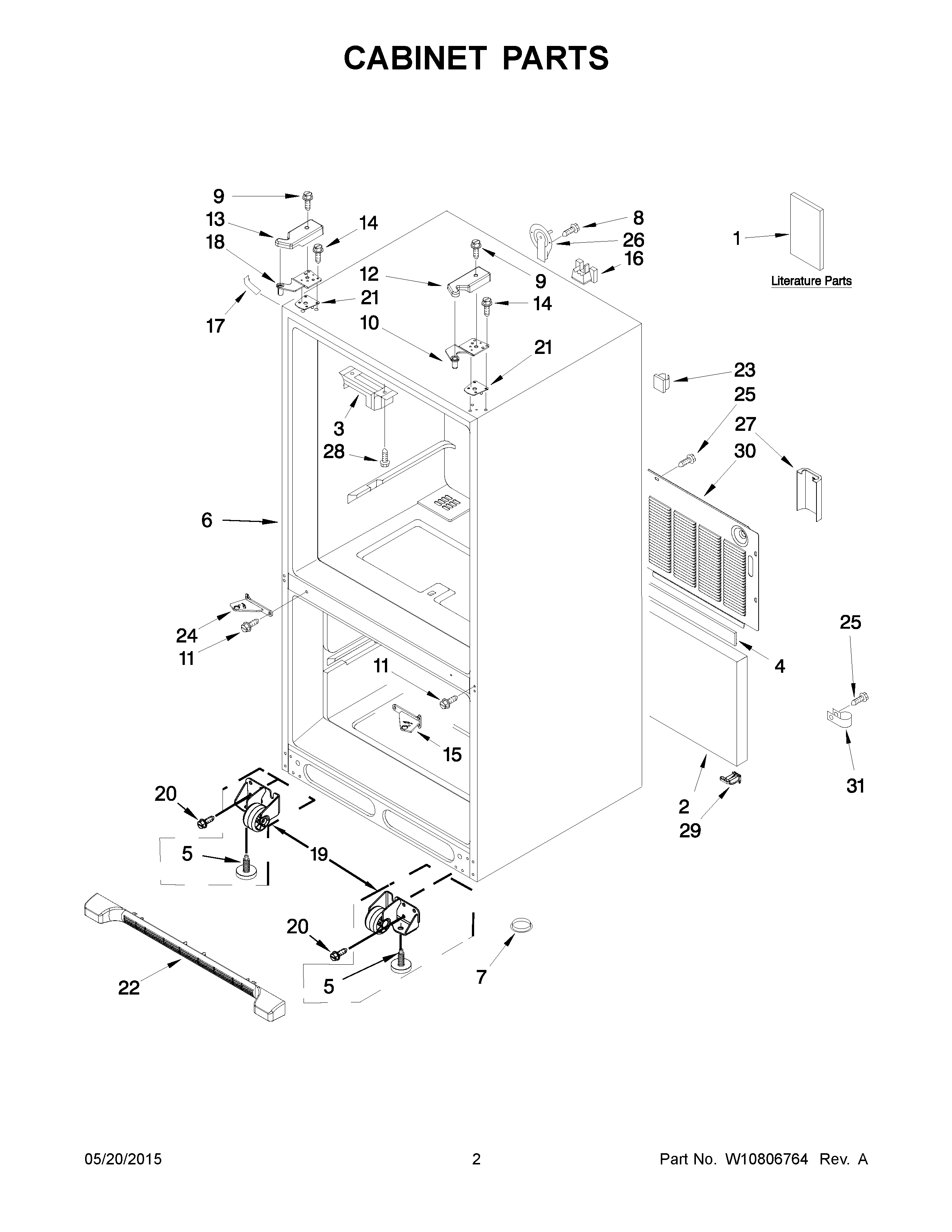

KRFC302EBS00 02 – CABINET PARTS

KRFC302EBS00 02 – CABINET PARTS

Written by

in

KRFC302EBS00 02 – CABINET PARTS

Products

PositionProduct
1AOWNERS MANUAL
1TECH SHEET
1BENERGY GUIDE
2INSULATION, SOUND
3W11024160 Whirlpool Refrigerator Breaker Trim
4B5759655 Whirlpool Refrigerator Gasket
5WPW10141622 Whirlpool Leveler
6CABINET (NOT A SERVICEABLE PART)
7A3076901 Whirlpool Refrigerator Plug
8WP98165 Whirlpool Screw
912992603 Whirlpool Refrigerator Screw
10W10210891 Whirlpool Refrigerator Door Hinge
11WP67006380 Whirlpool Screw
12W10163247 Whirlpool Cover
12AW10153131 Whirlpool Refrigerator Cover
12BWPW10120103 Whirlpool Refrigerator Cover
13BWPW10120102 Whirlpool Refrigerator Cover
13W10892761 Whirlpool Cover
13AW10892762 Whirlpool Refrigerator Cover
14WP489349 Whirlpool Refrigerator Screw
15W10162695 Whirlpool Refrigerator Door Hinge
15AW10210883 Whirlpool Refrigerator Door Hinge
15BHINGE-DOOR
16W11686793 Whirlpool Block
17A67003485 Whirlpool Refrigerator Corner Cover (Black)
1712587703W Whirlpool Refrigerator Cover
17BWP12587703AP Whirlpool Refrigerator Filler
18W10892768 Whirlpool Refrigerator Door Hinge
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21A12999502 Whirlpool Refrigerator Hinge Shim
2112999501 Whirlpool Refrigerator Hinge Shim
22BWPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
22AWPW10534153 Whirlpool Refrigerator Black Kickplate Grille
22WPW10534154 Whirlpool Refrigerator Front Grille
23WPM0104106 Whirlpool Refrigerator Clip
24AW10210882 Whirlpool Refrigerator Door Hinge
24BW10861742 Whirlpool Refrigerator Door Hinge
24W10162694 Whirlpool Door Hinge
2567006425 Whirlpool Refrigerator Screw
2612726003 Whirlpool Refrigerator Water Cover
27W10208593 Whirlpool Refrigerator Valve Cover
28W10854958 Whirlpool Refrigerator Screw
29W10528513 Whirlpool Tube Clamp
30WPW10211855 Whirlpool Refrigerator Back Cover
31W11456069 Whirlpool Refrigerator Clamp
