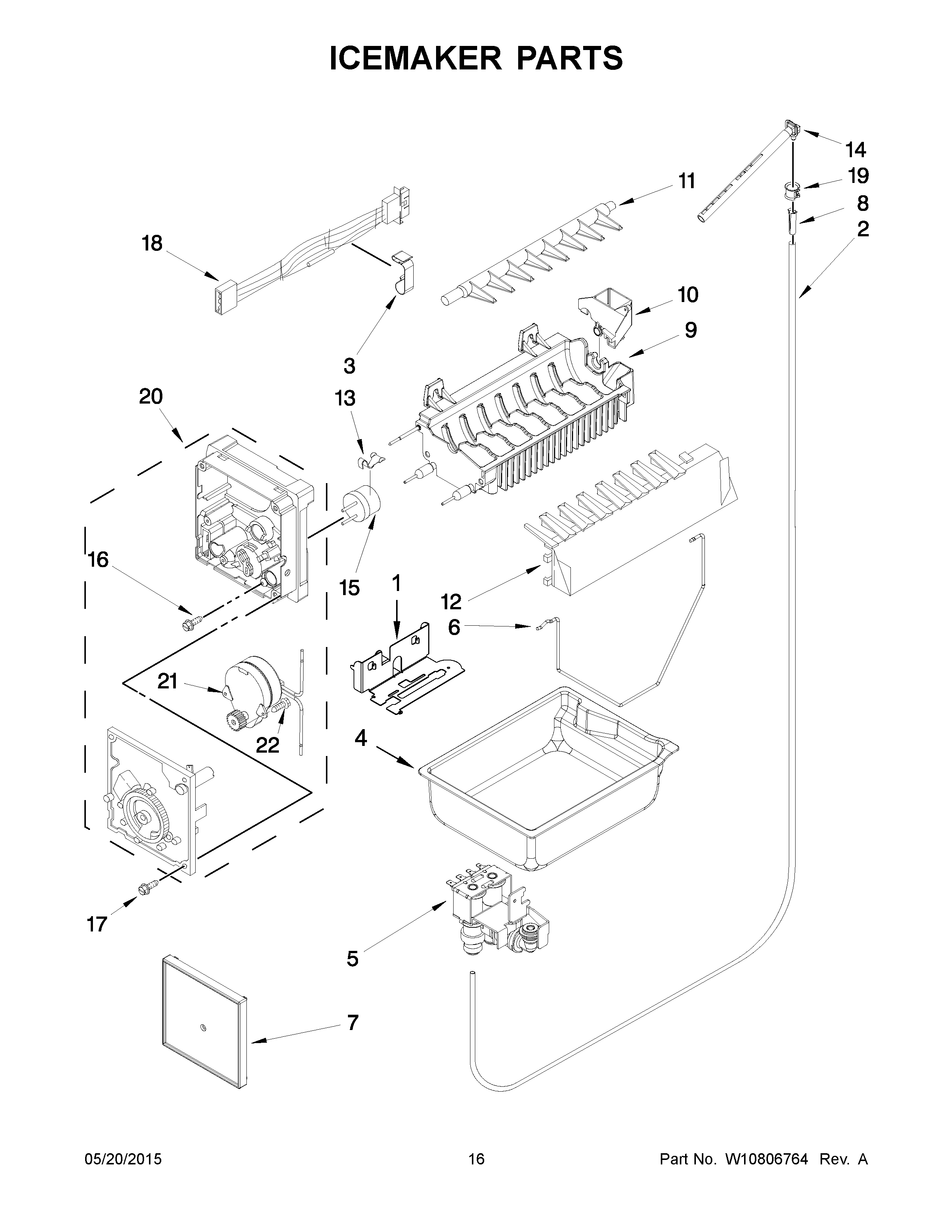

KRFC302EBS00 09 – ICEMAKER PARTS

Products

Position	Product
1	W10420084 Whirlpool Refrigerator Bracket
2	W11120581 Whirlpool Refrigerator Water Tube
3	Clamp
4	W10120005 Whirlpool Refrigerator Ice Pan
5	VALVE-WATER INLET REFR
6	W11559683 Whirlpool Ice Level Arm
7	W10377174 Whirlpool Refrigerator Front Cover
8	WPA3223101 Whirlpool Refrigerator Insert PL
9	WPW10300025 Whirlpool Refrigerator Ice Mold
10	W10410073 Whirlpool Fill Cup Assembly
11	W10318914 Whirlpool Refrigerator Ejector Arm
12	W10788834 Whirlpool Strip Arm
13	WP628379 Whirlpool Refrigerator Clip
14	W11176463 Whirlpool Refrigerator Water Tube
15	WP627985 Whirlpool Icemaker Cycling Thermostat
16	8533917 Whirlpool Refrigerator Screw
17	WP489464 Whirlpool Refrigerator Screw
18	WPW10458985 Whirlpool Wire Harness
19	WPM0114003 Whirlpool Microwave Speed Clip Clamp
20	WPW10281342 Whirlpool Refrigerator Motor Module
21	CABINET (NOT A SERVICEABLE PART)
22	W10001240 Whirlpool Refrigerator Screw
100	W10886931 Whirlpool Ice Maker Assembly
