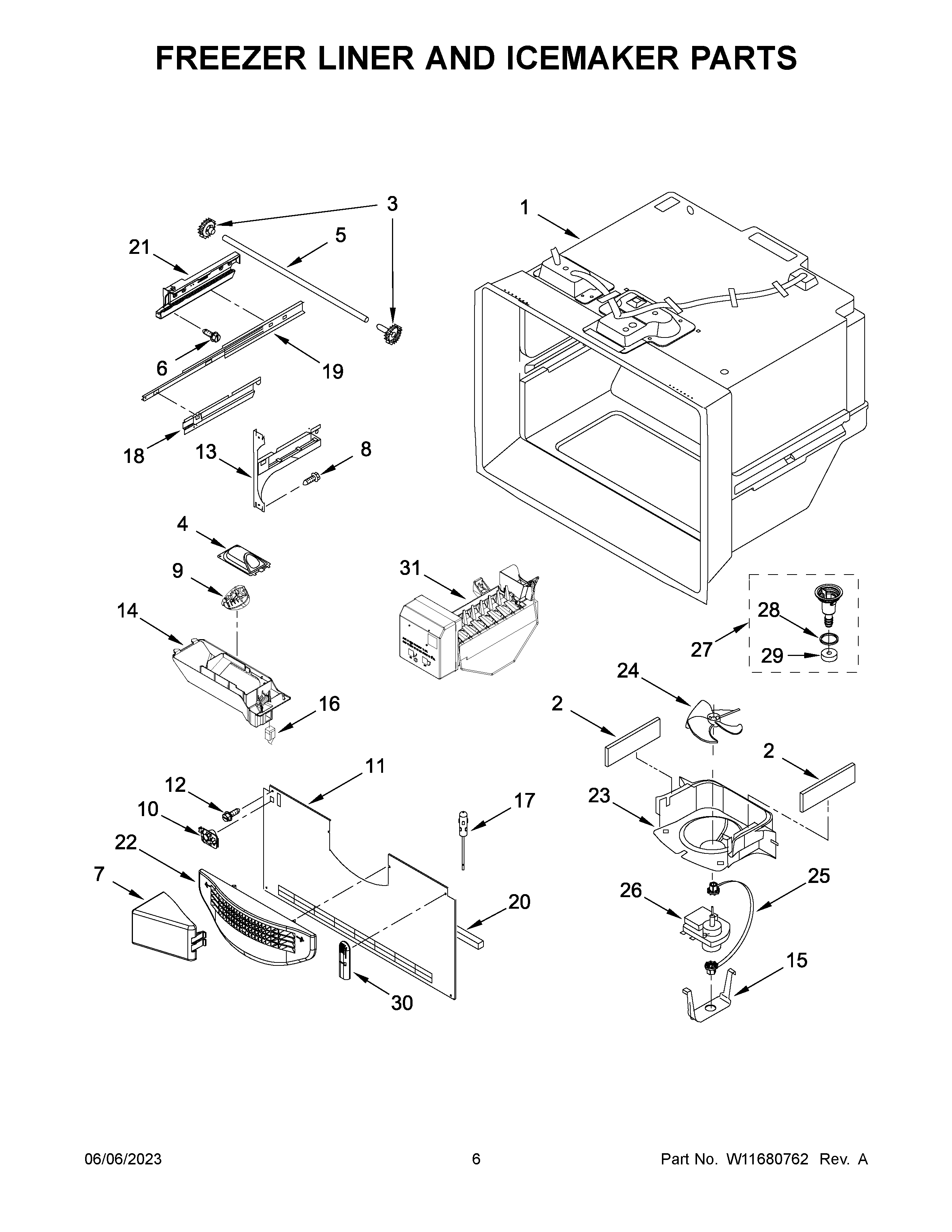

KRFC302EBS07 04 – FREEZER LINER AND ICEMAKER PARTS

KRFC302EBS07 04 – FREEZER LINER AND ICEMAKER PARTS

Written by

in

KRFC302EBS07 04 – FREEZER LINER AND ICEMAKER PARTS

Products

PositionProduct
NIW10196195 Whirlpool Refrigerator Wire Harness
NICABINET (NOT A SERVICEABLE PART)
2W10856123 Whirlpool Refrigerator Gasket
312002497 Whirlpool Refrigerator Drawer Gear Kit
4W11702858 Whirlpool Housing
5W11028221 Whirlpool Refrigerator Shaft
6WP489474 Whirlpool Refrigerator Screw
7W10157765 Whirlpool Refrigerator Deflector
8WP98165 Whirlpool Screw
9MODULE
10GUIDE, FILL TUBE
11COVER, EVAPORATOR
1267006425 Whirlpool Refrigerator Screw
13WPW10330994 Whirlpool Refrigerator Bracket
13AWPW10330995 Whirlpool Refrigerator Bracket
14W11712699 Whirlpool Housing
15CLIP, EVAPORATOR MOTOR
16W11396033 Whirlpool Refrigerator Rocker Switch
17W10316760 Whirlpool Thermistor Kit
18W10119848 Whirlpool Refrigerator Bracket
18AW10119849 Whirlpool Refrigerator Bracket Assembly
19W11658403 Whirlpool Slide
20W11159728 Whirlpool Refrigerator Gasket
21WPW10544403 Whirlpool Refrigerator Bracket
21AWPW10544404 Whirlpool Refrigerator Bracket
22WPW10175909 Whirlpool Grille Assembly
23WPW10167023 Whirlpool Refrigerator Shroud
24WP2169142 Whirlpool Fan Blade
25W10121318 Whirlpool Refrigerator Grommet
26WPW10128551 Whirlpool Evaporator Fan Motor
27W10815413 Whirlpool Refrigerator Funnel
28WPM0500703 Whirlpool Refrigerator O-Ring Seal
29WPB8381501 Whirlpool Refrigerator Door Gasket
30WP67003924 Whirlpool Refrigerator Cover
31W11692158 Whirlpool Ice Maker Assembly
