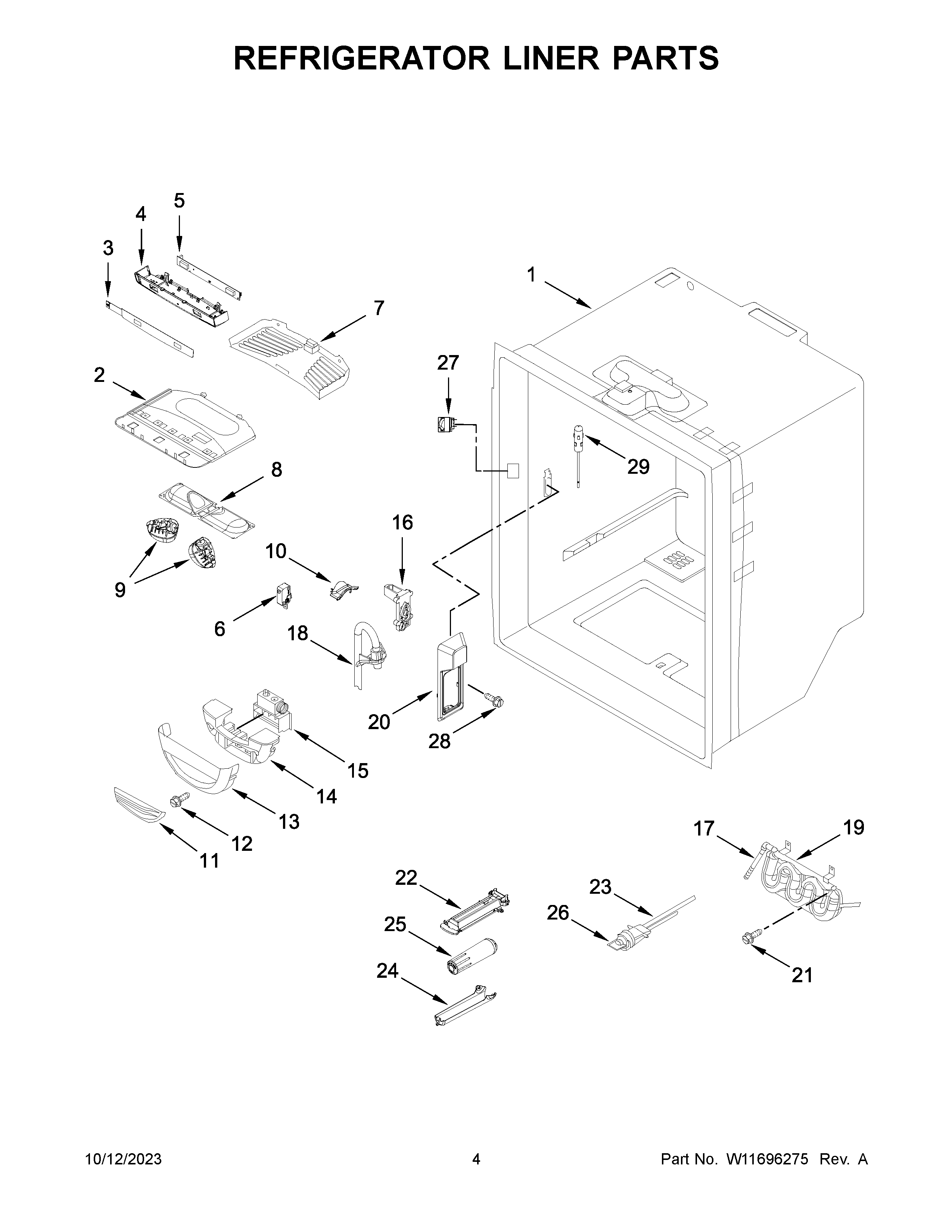

KRFC302EBS08 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	W11084235 Whirlpool Refrigerator Wire Harness
NI	FOLLOWING PARTS NOT ILLUSTRATED
1	LINER (NOT A SERVICEABLE PART)
2	W10464766 Whirlpool Refrigerator Housing Assembly
3	OVERLAY
4	W11416469 Whirlpool Refrigerator Housing
5	W11674464 Whirlpool Electronic Control Board with Core
6	WP12575502 Whirlpool Refrigerator Switch
7	W11284721 Whirlpool Refrigerator Cover
8	W10443023 Whirlpool Refrigerator Housing
9	MODULE
10	W10116529 Whirlpool Refrigerator Cover
11	67003900 Whirlpool Refrigerator Insert Damper Cover
12	WP400021-1 Whirlpool Screw
13	WP12806701 Whirlpool Refrigerator Box Cover
14	INSULATION
15	CONTROL DAMPER
16	W11243624 Whirlpool Refrigerator Cover
17	WP2300868 Whirlpool Refrigerator Fitting
18	W10117324 Whirlpool Refrigerator Ice Guide
19	W11361728 Whirlpool Reservoir Assembly
21	WP98165 Whirlpool Screw
22	67006325 Whirlpool Filter Base Bracket
23	W11346623 Whirlpool Refrigerator Water Filter Head
24	WP67006331 Whirlpool Refrigerator Water Filter Cover
25	everydropÂ® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
26	W11395888 Whirlpool Refrigerator Bypass Filter Cap
27	W11291138 Whirlpool Refrigerator Door Switch
28	W10854958 Whirlpool Refrigerator Screw
29	W11690896 Whirlpool Thermistor
