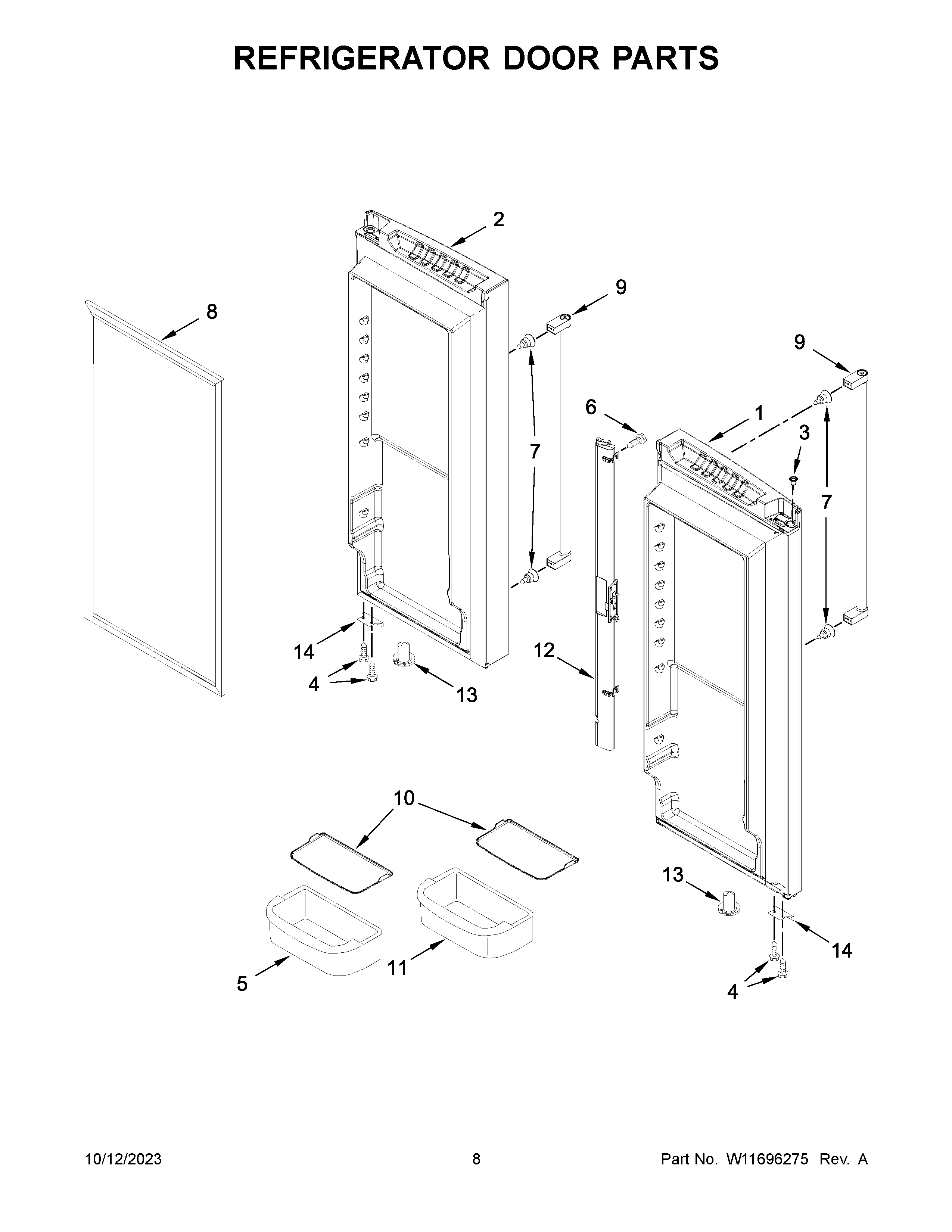

KRFC302EBS08 05 – REFRIGERATOR DOOR PARTS

KRFC302EBS08 05 – REFRIGERATOR DOOR PARTS

Written by

in

KRFC302EBS08 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W10821253 Whirlpool Refrigerator Door Assembly
2W10821254 Whirlpool Refrigerator Door Assembly
312996601 Whirlpool Refrigerator Bushing Clip
4WP67006908 Whirlpool Refrigerator Screw
5WPW10119841 Whirlpool Cantilever Bin
6W11311945 Whirlpool Refrigerator Screw
7W11449276 Whirlpool Handle Support
8SEAL REFER
9W11483532 Whirlpool Refrigerator Handle
10W11510593 Whirlpool Refrigerator Mat
10AW11510594 Whirlpool Refrigerator Mat
11WPW10119846 Whirlpool Refrigerator Door Bin Shelf Basket
12W11177241 Whirlpool Refrigerator Mullion Rail
13WP67003639 Whirlpool Refrigerator Closer
14W10153126 Whirlpool Refrigerator Door Stop
