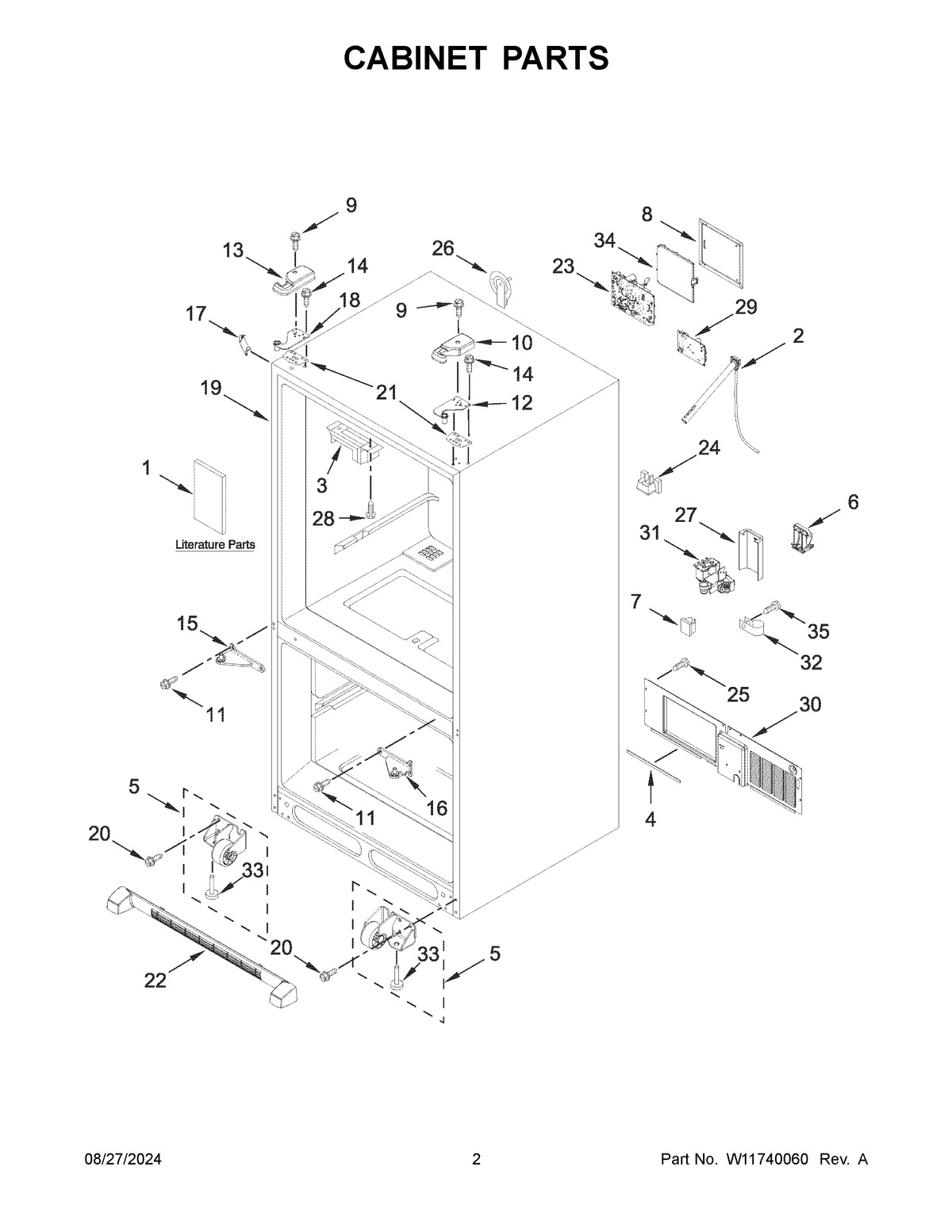

KRFC302EBS09 02 – CABINET PARTS

KRFC302EBS09 02 – CABINET PARTS

Written by

in

KRFC302EBS09 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1USE AND CARE GUIDE
1BTECH SHEET
2W11181718 Whirlpool Refrigerator Water Tube
3W11024160 Whirlpool Refrigerator Breaker Trim
4W11534848 Whirlpool Gasket
5WPW10515763 Whirlpool Refrigerator Cabinet Roller
5AWPW10515762 Whirlpool Refrigerator Cabinet Roller
6W10528513 Whirlpool Tube Clamp
7WPM0104106 Whirlpool Refrigerator Clip
812961602 Whirlpool Refrigerator Wire Cover
912992603 Whirlpool Refrigerator Screw
10W10153131 Whirlpool Refrigerator Cover
11W11573362 Whirlpool Screw Assembly
12W10210891 Whirlpool Refrigerator Door Hinge
13W10892762 Whirlpool Refrigerator Cover
14WP489349 Whirlpool Refrigerator Screw
15HINGE, CENTER (LEFT HAND)
16HINGE, CENTER (RIGHT HAND)
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18W10892768 Whirlpool Refrigerator Door Hinge
19CABINET (NOT A SERVICEABLE PART)
2067006564 Whirlpool Refrigerator Screw
2112999501 Whirlpool Refrigerator Hinge Shim
21A12999502 Whirlpool Refrigerator Hinge Shim
22WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23WPW10120827 Whirlpool Dryer Electronic Control Board + Core
24W11686793 Whirlpool Block
25W11686675 Whirlpool Screw
2612726003 Whirlpool Refrigerator Water Cover
27W10208593 Whirlpool Refrigerator Valve Cover
28W11693756 Whirlpool Screw Assembly
29WPW10356039-includeCORE Whirlpool WPW10356039 Refrigerator Electronic Control Board + Core
30WPW10211855 Whirlpool Refrigerator Back Cover
31W11524655 Whirlpool Refrigerator Valve
32W11456069 Whirlpool Refrigerator Clamp
33WPW10141622 Whirlpool Leveler
34W10296541 Whirlpool Refrigerator Wire Cover
35WP98165 Whirlpool Screw
