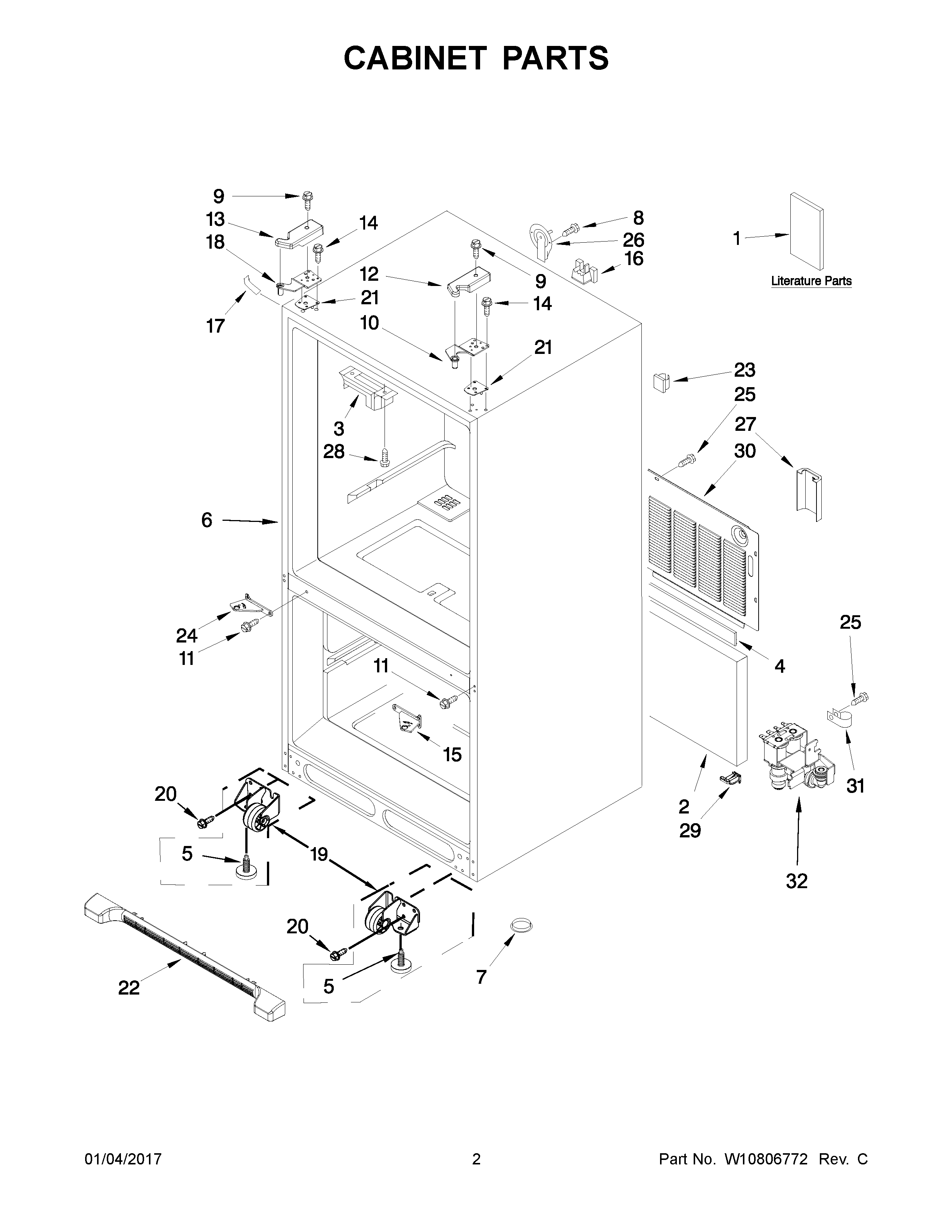

KRFC302EPA00 02 – CABINET PARTS

Products

PositionProduct
1BENERGY GUIDE
1AOWNERS MANUAL
1TECH SHEET
2INSULATION, SOUND
3W11024160 Whirlpool Refrigerator Breaker Trim
4B5759655 Whirlpool Refrigerator Gasket
5WPW10141622 Whirlpool Leveler
6CABINET (NOT A SERVICEABLE PART)
7A3076901 Whirlpool Refrigerator Plug
8WP98165 Whirlpool Screw
912992603 Whirlpool Refrigerator Screw
10W10210891 Whirlpool Refrigerator Door Hinge
11W11573362 Whirlpool Screw Assembly
12W10153131 Whirlpool Refrigerator Cover
13W10892762 Whirlpool Refrigerator Cover
14WP489349 Whirlpool Refrigerator Screw
15W10210883 Whirlpool Refrigerator Door Hinge
16W11686793 Whirlpool Block
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18W10892768 Whirlpool Refrigerator Door Hinge
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21A12999502 Whirlpool Refrigerator Hinge Shim
2112999501 Whirlpool Refrigerator Hinge Shim
22WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23WPM0104106 Whirlpool Refrigerator Clip
24W10210882 Whirlpool Refrigerator Door Hinge
2567006425 Whirlpool Refrigerator Screw
2612726003 Whirlpool Refrigerator Water Cover
27W10208593 Whirlpool Refrigerator Valve Cover
28W10854958 Whirlpool Refrigerator Screw
29W10528513 Whirlpool Tube Clamp
30WPW10211855 Whirlpool Refrigerator Back Cover
31W11456069 Whirlpool Refrigerator Clamp
32VALVE-WATER INLET REFR
