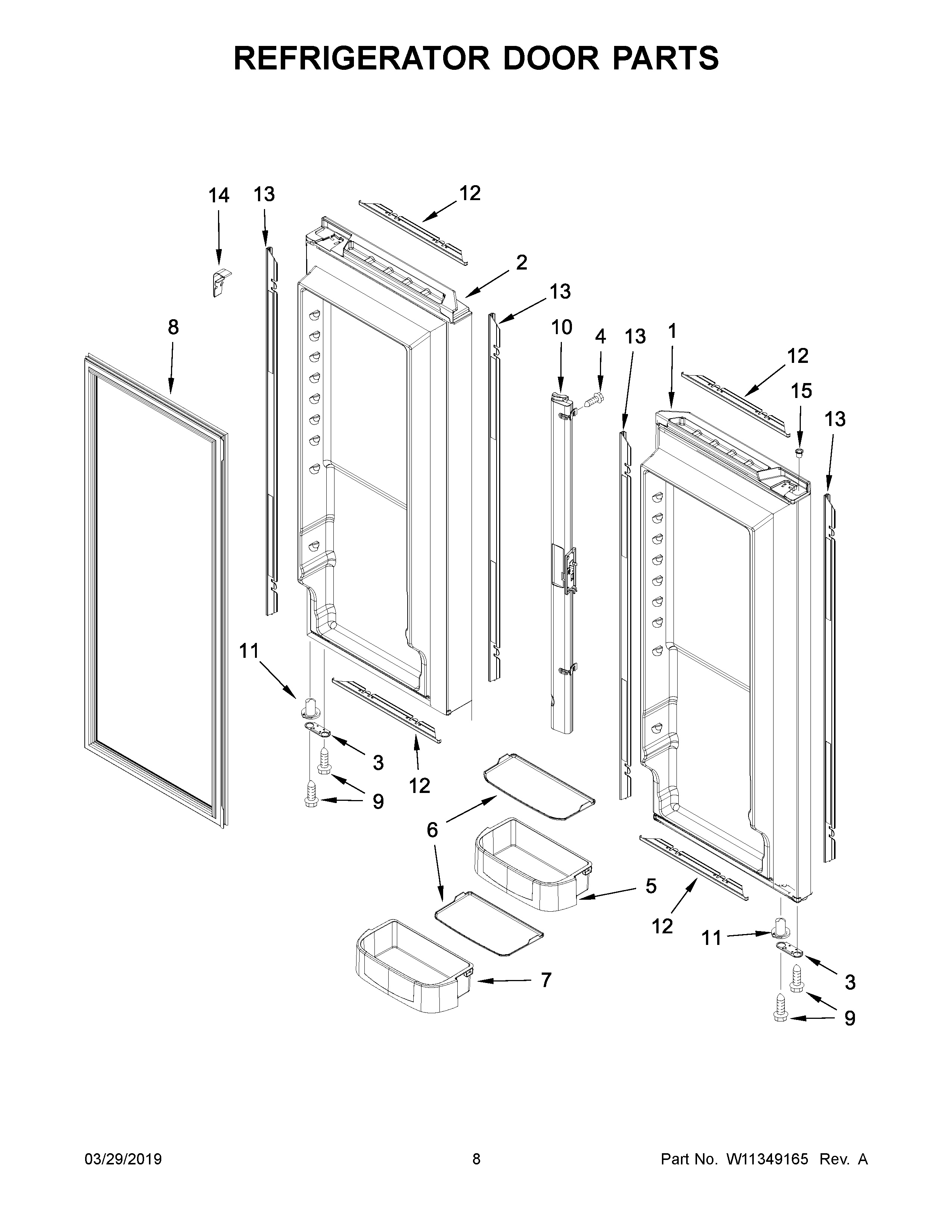

KRFC302EPA02 05 – REFRIGERATOR DOOR PARTS

KRFC302EPA02 05 – REFRIGERATOR DOOR PARTS

Written by

in

KRFC302EPA02 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
113094748BQ Whirlpool Refrigerator Black Foam In Place Door
213094740BQ Whirlpool Refrigerator Black Foam In Place Door
3W10153126 Whirlpool Refrigerator Door Stop
4W11311945 Whirlpool Refrigerator Screw
5WPW10119841 Whirlpool Cantilever Bin
6W11510593 Whirlpool Refrigerator Mat
6AW11510594 Whirlpool Refrigerator Mat
7WPW10119846 Whirlpool Refrigerator Door Bin Shelf Basket
8GASKET-FIP
9WP489474 Whirlpool Refrigerator Screw
10W11177241 Whirlpool Refrigerator Mullion Rail
11WP67003639 Whirlpool Refrigerator Closer
12W10130132 Whirlpool Refrigerator Door Trim
13WPW10130136 Whirlpool Refrigerator Door Trim
14Clip, Trim (8)
1512996601 Whirlpool Refrigerator Bushing Clip
