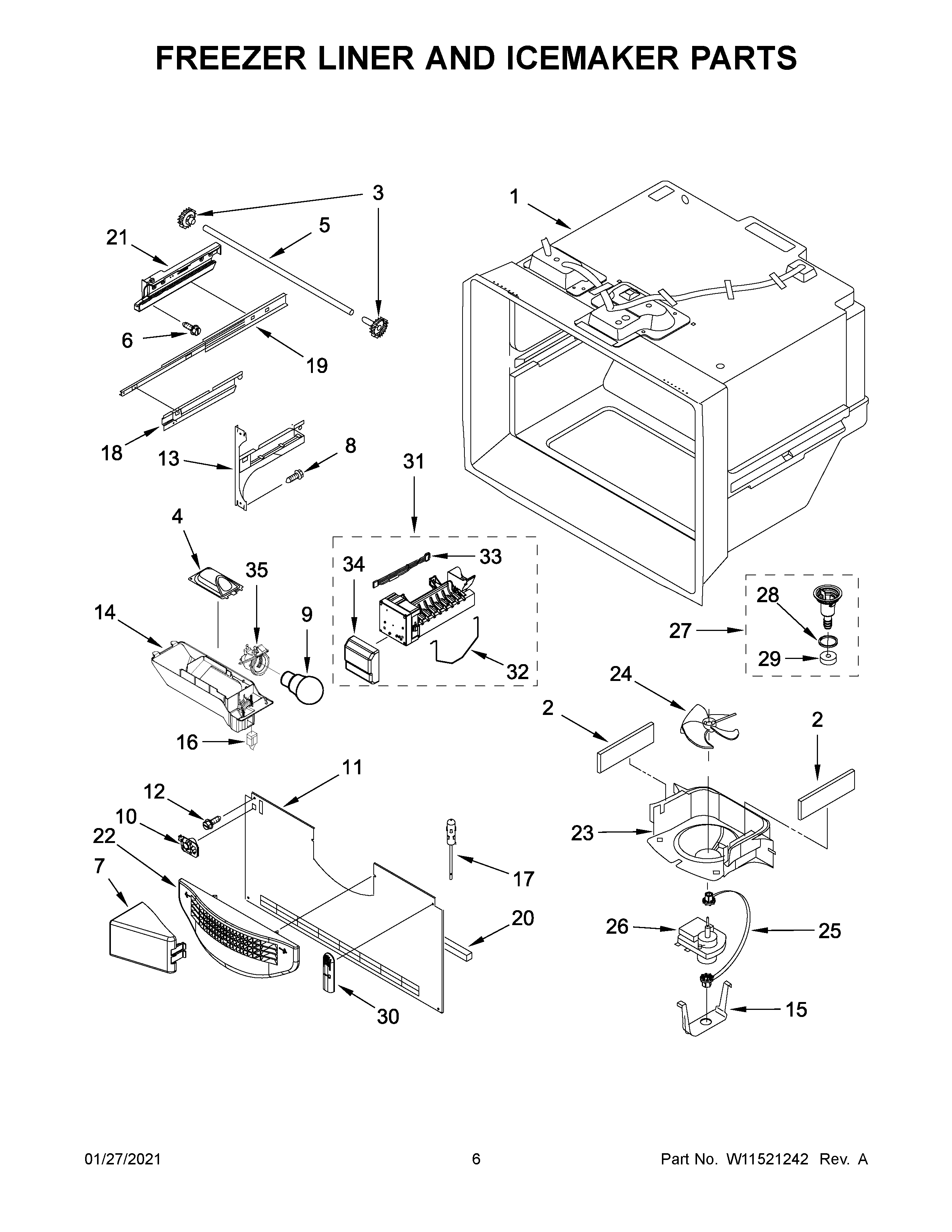

KRFC302ESS03 04 – FREEZER LINER AND ICEMAKER PARTS

Products

PositionProduct
NIW10196195 Whirlpool Refrigerator Wire Harness
NICABINET (NOT A SERVICEABLE PART)
2W10856123 Whirlpool Refrigerator Gasket
312002497 Whirlpool Refrigerator Drawer Gear Kit
4W11702858 Whirlpool Housing
5W11028221 Whirlpool Refrigerator Shaft
6WP489474 Whirlpool Refrigerator Screw
7W10157765 Whirlpool Refrigerator Deflector
8WP98165 Whirlpool Screw
9W11338583 Whirlpool Light Bulb
10GUIDE, FILL TUBE
11W10308420 Whirlpool Refrigerator Evaporator Cover
1267006425 Whirlpool Refrigerator Screw
13AWPW10330995 Whirlpool Refrigerator Bracket
13WPW10330994 Whirlpool Refrigerator Bracket
14W11712699 Whirlpool Housing
15CLIP, EVAPORATOR MOTOR
16W11396033 Whirlpool Refrigerator Rocker Switch
17W10316760 Whirlpool Thermistor Kit
18AW10119849 Whirlpool Refrigerator Bracket Assembly
18W10119848 Whirlpool Refrigerator Bracket
19W11658403 Whirlpool Slide
20W11159728 Whirlpool Refrigerator Gasket
21AWPW10544404 Whirlpool Refrigerator Bracket
21WPW10544403 Whirlpool Refrigerator Bracket
22WPW10175909 Whirlpool Grille Assembly
23WPW10167023 Whirlpool Refrigerator Shroud
24WP2169142 Whirlpool Fan Blade
25W10121318 Whirlpool Refrigerator Grommet
26WPW10128551 Whirlpool Evaporator Fan Motor
27W10815413 Whirlpool Refrigerator Funnel
28WPM0500703 Whirlpool Refrigerator O-Ring Seal
29WPB8381501 Whirlpool Refrigerator Door Gasket
30WP67003924 Whirlpool Refrigerator Cover
31W10889233 Whirlpool Refrigerator Icemaker
32W11285509 Whirlpool Refrigerator Shut-Off Arm
33W10886932 Whirlpool Refrigerator Wire Harness
34W10153710 Whirlpool Refrigerator Front Cover
35W11447232 Whirlpool Refrigerator Socket
