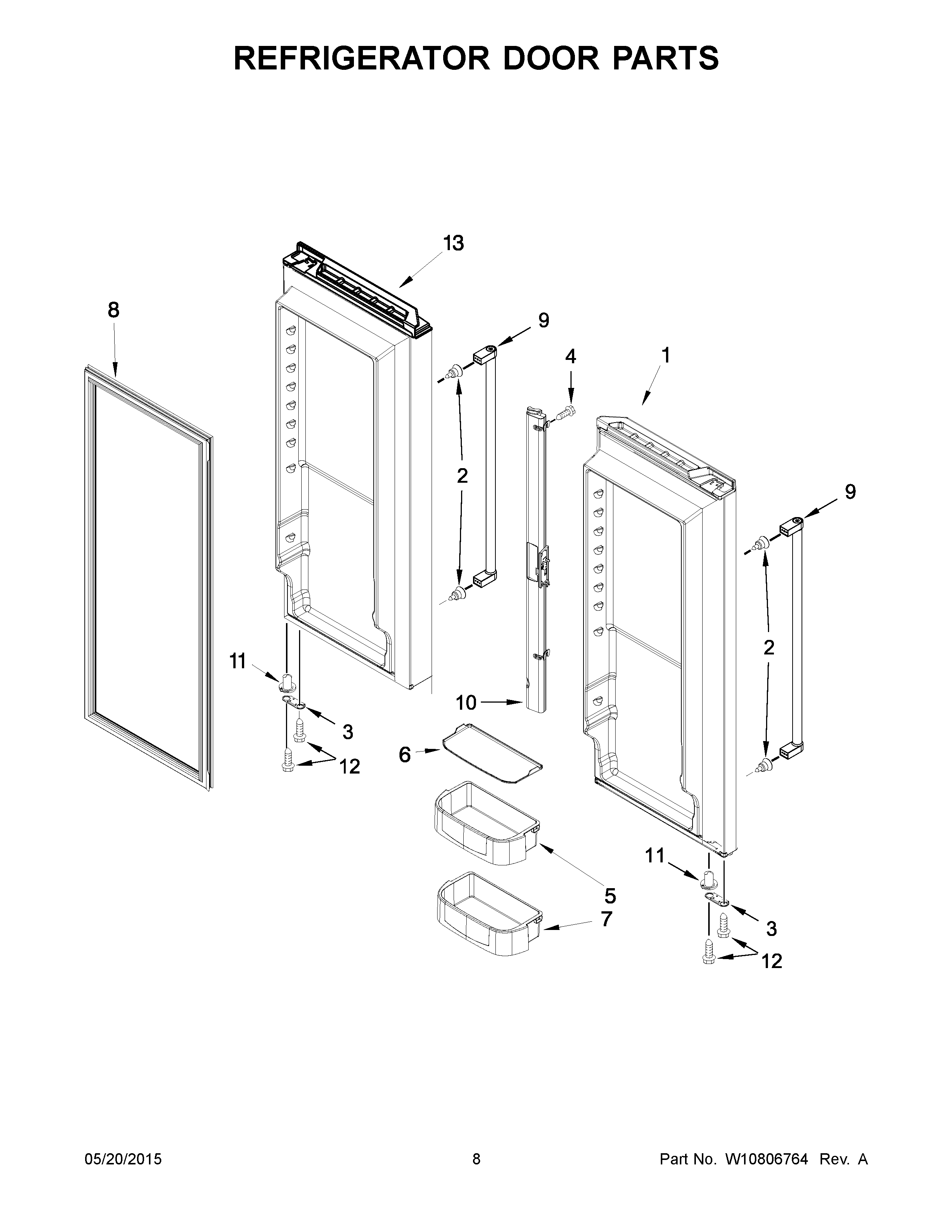

KRFC302EWH00 05 – REFRIGERATOR DOOR PARTS

KRFC302EWH00 05 – REFRIGERATOR DOOR PARTS

Written by

in

KRFC302EWH00 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1B13094747SQ Whirlpool Refrigerator Left-Hand French Door
1CW10821253 Whirlpool Refrigerator Door Assembly
1A13094744BQ Whirlpool Refrigerator DOR-FIP White
1DOOR, LEFT (WHITE)
2WPW10661886 Whirlpool Refrigerator Door Handle Screw
3AW10153126 Whirlpool Refrigerator Door Stop
3BWPW10120097 Whirlpool Refrigerator Door Stop
3W10163249 Whirlpool Refrigerator Door Stop
4W11311945 Whirlpool Refrigerator Screw
5WPW10119841 Whirlpool Cantilever Bin
6AW11510594 Whirlpool Refrigerator Mat
6W11510593 Whirlpool Refrigerator Mat
7WPW10119846 Whirlpool Refrigerator Door Bin Shelf Basket
8W11403914 Whirlpool Door Gasket
8BSEAL REFER
8AGASKET-FIP
9W11483532 Whirlpool Refrigerator Handle
10AW11177241 Whirlpool Refrigerator Mullion Rail
10W11177230 Whirlpool Refrigerator Mullion Rail
10BW11177238 Whirlpool Refrigerator Mullion Rail
11BWP12028505AP Whirlpool Closing Cam
11AWP67003639 Whirlpool Refrigerator Closer
11WP67003638 Whirlpool Closing Cam
12WP98165 Whirlpool Screw
13B13094739SQ Whirlpool Refrigerator DOR-FIP SS
13CW10821254 Whirlpool Refrigerator Door Assembly
1313094738WQ Whirlpool Refrigerator DOR-FIP WH(DROP SHIP)
13A13094738BQ Whirlpool Refrigerator Door FIP White
