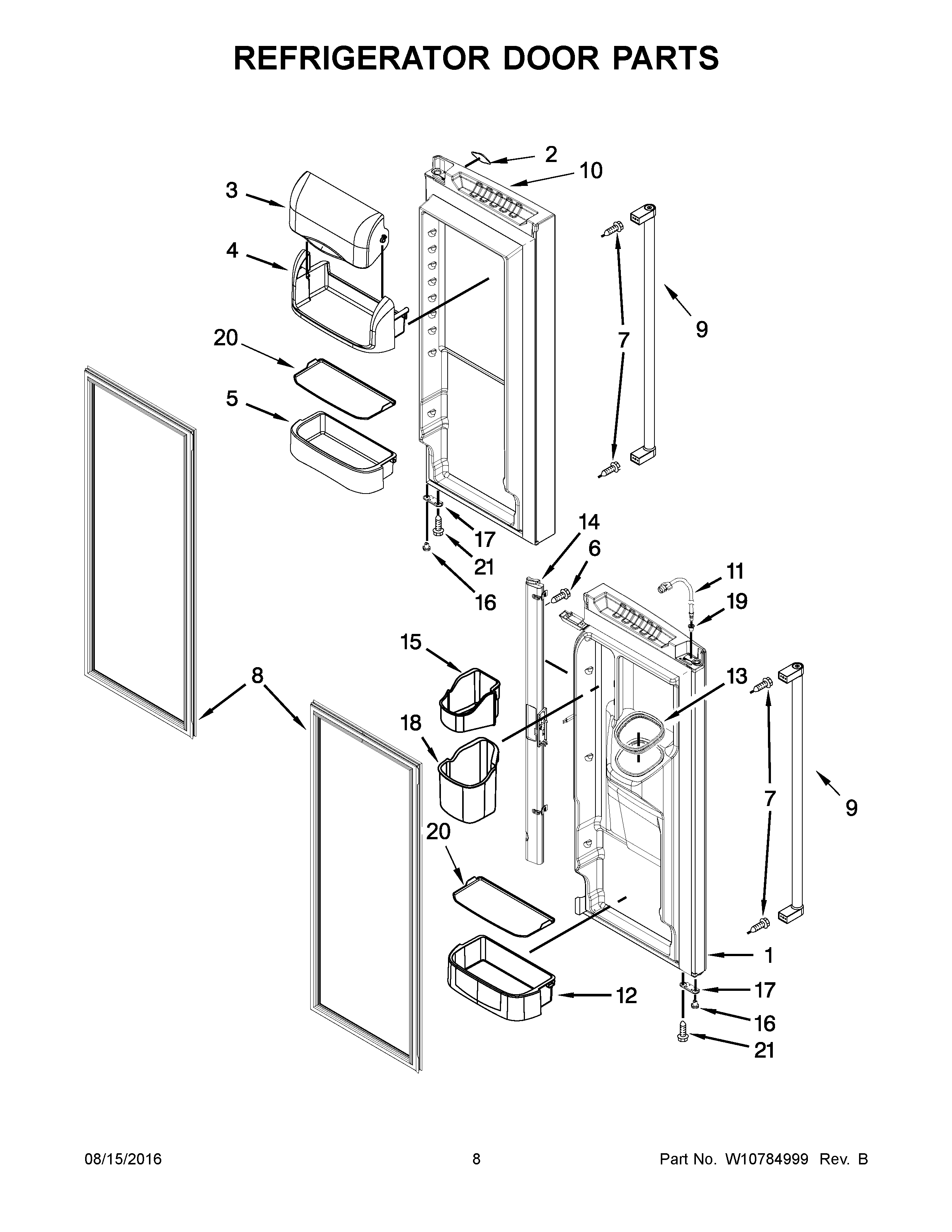

KRFC400EBL00 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, LEFT (WHITE)
1B	DOOR, LEFT (STAINLESS)
1A	DOOR, LEFT (BLACK)
2	W10839793 Whirlpool Refrigerator Nameplate
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10119841 Whirlpool Cantilever Bin
6	W11311945 Whirlpool Refrigerator Screw
7	WPW10661886 Whirlpool Refrigerator Door Handle Screw
8B	GASKET-FIP GRAY
8A	W11378944 Whirlpool Door Gasket
8	W11396037 Whirlpool Door Gasket
9	W11483532 Whirlpool Refrigerator Handle
10B	DOOR, RIGHT (STAINLESS)
10	DOOR, RIGHT (WHITE)
10A	DOOR, RIGHT (BLACK)
11	W10275942 Whirlpool Refrigerator Water Tube
12	WPW10119846 Whirlpool Refrigerator Door Bin Shelf Basket
13	WPW10287601 Whirlpool Seal
14	WP12722813W Whirlpool Refrigerator Mullion Rail
14A	WPW10151713 Whirlpool Refrigerator Mullion Rail
14B	WP12722813AP Whirlpool Refrigerator Mullion Rail
15	W10187453 Whirlpool Refrigerator Bin
16	WP67003638 Whirlpool Closing Cam
16A	WP67003639 Whirlpool Refrigerator Closer
16B	WP12028505AP Whirlpool Closing Cam
17B	W11703060 Whirlpool Door Stop
17	12968202W Whirlpool Refrigerator Door Stop
17A	W11708403 Whirlpool Door Stop
18	BUCKET, LOWER
19	12996601 Whirlpool Refrigerator Bushing Clip
20A	W11510594 Whirlpool Refrigerator Mat
20	W11510593 Whirlpool Refrigerator Mat
21	WP98165 Whirlpool Screw
