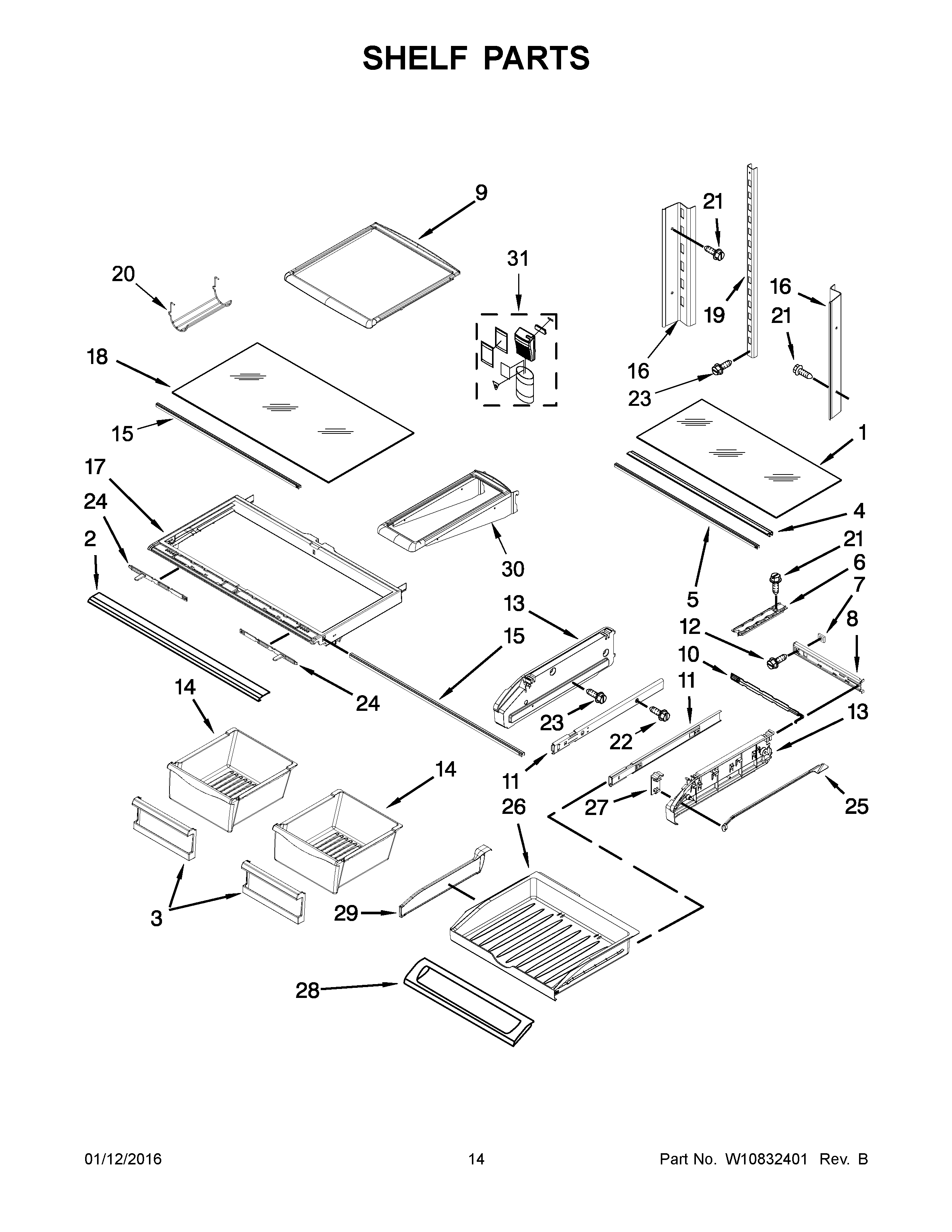

KRFC400EBL01 08 – SHELF PARTS

Products

Position	Product
1	W11125512 Whirlpool Refrigerator Glass Shelf
2	TRIM, CRISPER
3	FRONT-CRISPER PAN
4	W11210956 Whirlpool Refrigerator Shelf Trim
5	WP12227305WD Whirlpool Drawer Support
6	WP67001719 Whirlpool Refrigerator Track
7	67002329 Whirlpool Refrigerator Pantry Gasket
8	12656202 Whirlpool Refrigerator Housing
9	WP12463912 Whirlpool Refrigerator Glass Shelf
10	WP67003793 Whirlpool Refrigerator Temperature Slide
11	WPW10235370 Whirlpool Refrigerator Glide
13	WP12656105 Whirlpool Drawer Support
13A	WP12656018 Whirlpool Drawer Support
14	WP67002659 Whirlpool Crisper Pan
15	WP12227304WD Whirlpool Refrigerator Drawer Support
16A	LADDER, SIDE (RIGHT HAND)
16	W10251966 Whirlpool Refrigerator Ladder
17	WP67006185 Whirlpool Refrigerator Crisper Frame
18	WP67006655 Whirlpool Refrigerator Crisper Glass Shelf
19	W10273464 Whirlpool Refrigerator Ladder
20	W10335942 Whirlpool Refrigerator Wine Rack
21	67006425 Whirlpool Refrigerator Screw
22	WP98165 Whirlpool Screw
23	WP67006415 Whirlpool Refrigerator Screw
24	SLIDE
25	67003794 Whirlpool Refrigerator Temperature Control Bar
26	W11490183 Whirlpool Refrigerator Utility Pan
27	W11498983 Whirlpool Refrigerator Knob
28	WP67005930 Whirlpool Refrigerator Pantry Drawer Front Lid
29	WP67002321 Whirlpool Refrigerator Divider Panel
30	W10187463 Whirlpool Refrigerator Shelf Assembly
31	ASSEMBLY, PRODUCE PRESERVER
