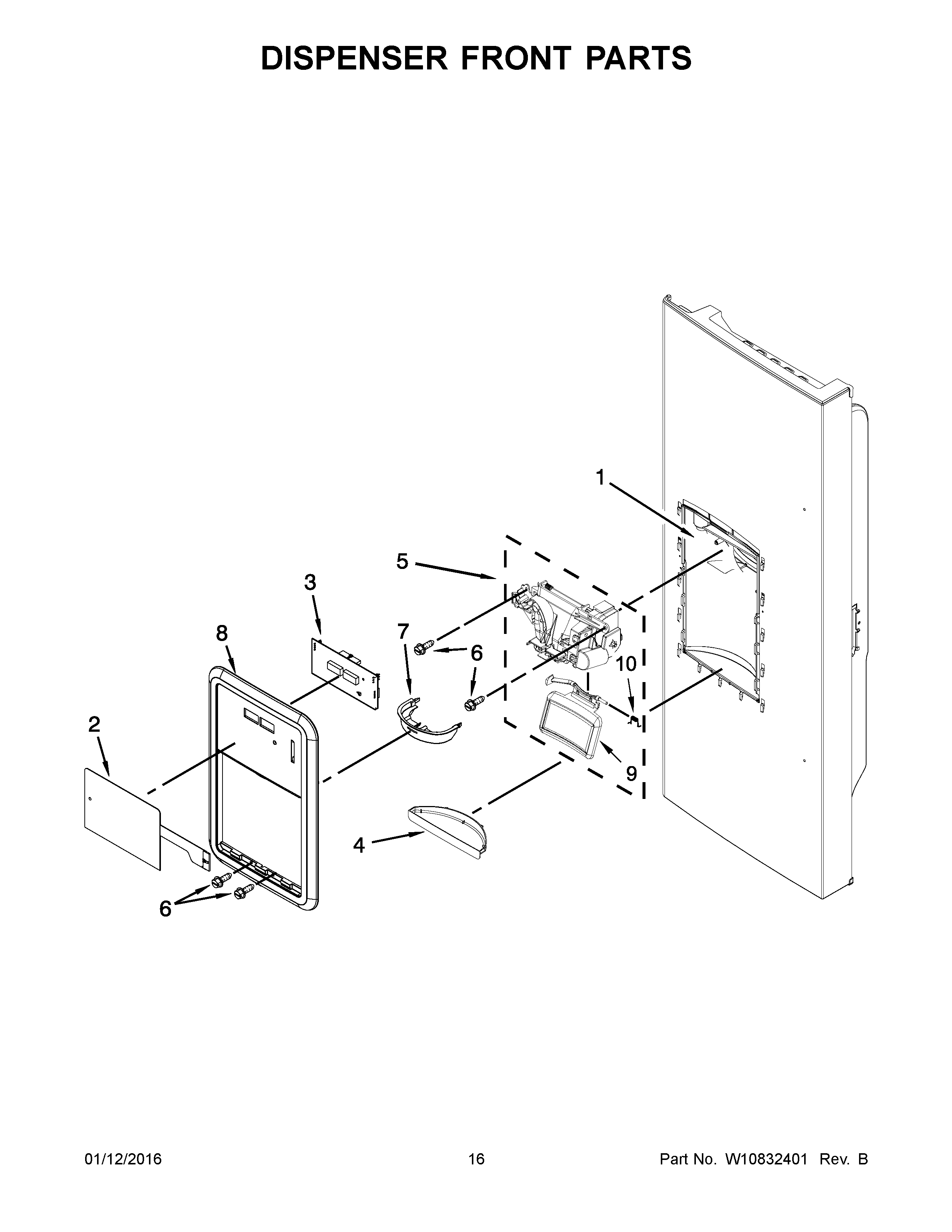

KRFC400EBL01 09 – DISPENSER FRONT PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	DISPENSER KEYBOARD
3	LCD CONTROL ASSEMBLY
4A	SUMP, DISPENSER (BLACK)
4B	SUMP, DISPENSER (STAINLESS)
4	SUMP, DISPENSER (WHITE)
5	WP13005703W Whirlpool Refrigerator Chute
5B	WP13005705 Whirlpool Refrigerator Chute
5A	WP13005703B Whirlpool Refrigerator Chute
6	67006425 Whirlpool Refrigerator Screw
7	67006295 Whirlpool Refrigerator Target Ring
8B	FACADE, DISPENSER (STAINLESS)
8	Facade, Dispenser (White)
8A	Facade, Dispenser (Black)
9	WPW10185233 Whirlpool Refrigerator Pad
10	WP12565502 Whirlpool Refrigerator Spring
