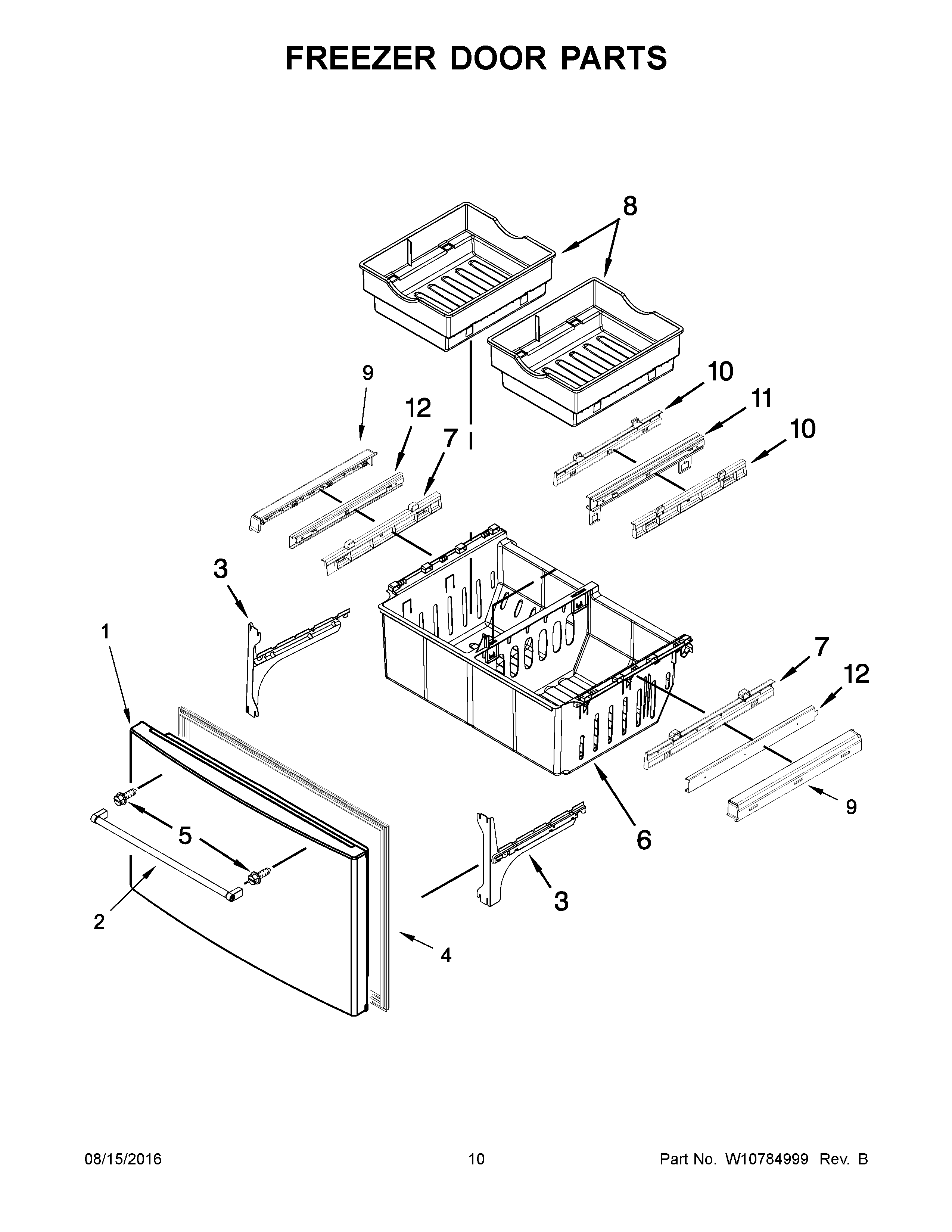

KRFC400ESS00 06 – FREEZER DOOR PARTS

KRFC400ESS00 06 – FREEZER DOOR PARTS

Written by

in

KRFC400ESS00 06 – FREEZER DOOR PARTS

Products

PositionProduct
1BDOOR, FREEZER (STAINLESS)
1ADOOR, FREEZER (BLACK)
1DOOR, FREEZER (WHITE)
2W11488944 Whirlpool Refrigerator Handle
3WPW10330994 Whirlpool Refrigerator Bracket
3AWPW10330995 Whirlpool Refrigerator Bracket
4WPW10443321 Whirlpool Door Gasket
4AWPW10436253 Whirlpool Refrigerator Black Freezer Door Gasket
4BGASKET-FIP
5WPW10661886 Whirlpool Refrigerator Door Handle Screw
6BIN, LOWER
7W10187469 Whirlpool Refrigerator Bracket
8W10184227 Whirlpool Refrigerator Freezer Bin
9W10826790 Whirlpool Refrigerator Retainer
9AW10826791 Whirlpool Refrigerator Retainer
10W10184223 Whirlpool Refrigerator Bracket
11W10235358 Whirlpool Refrigerator Glide
12WPW10235368 Whirlpool Refrigerator Glide
