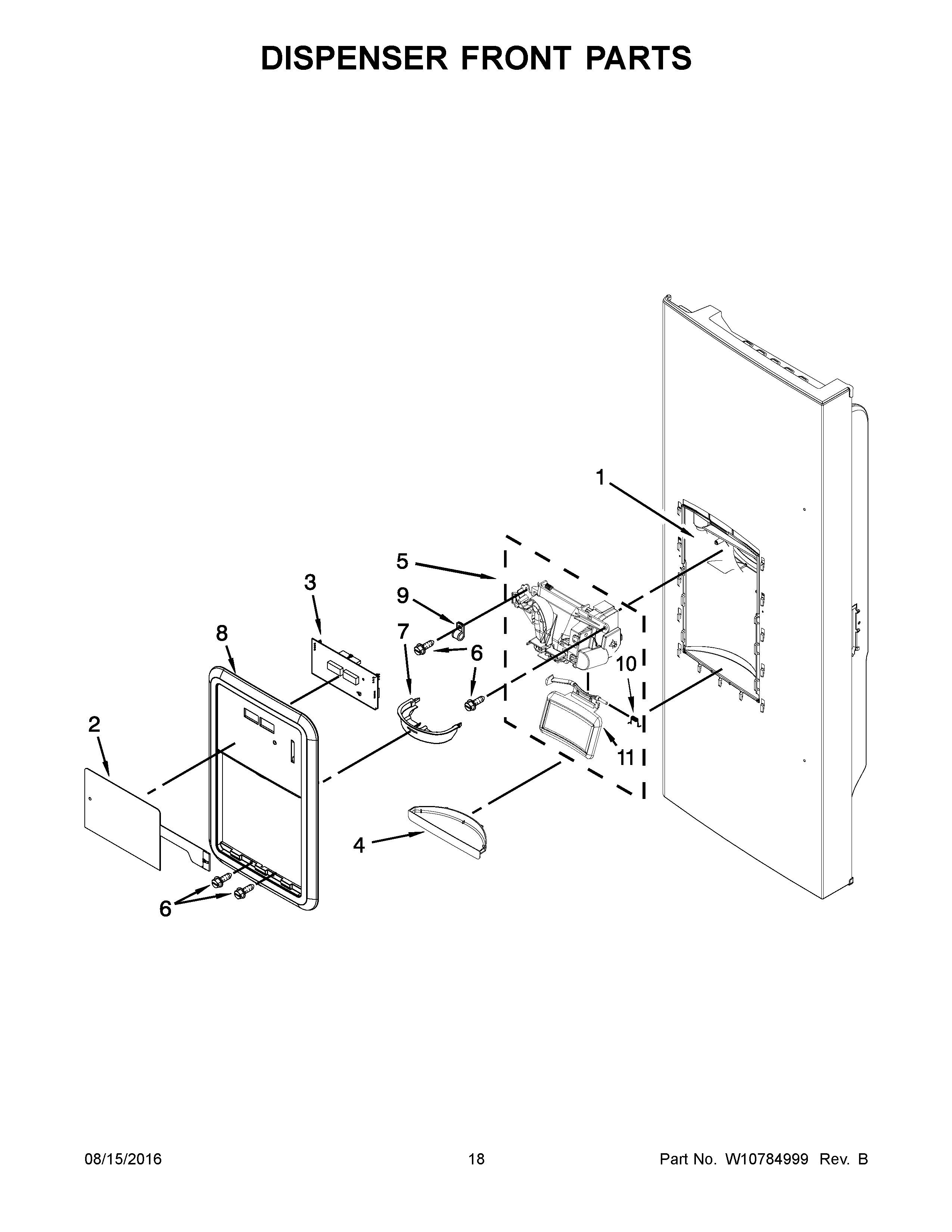

KRFC400ESS00 10 – DISPENSER FRONT PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	DISPENSER KEYBOARD
3	LCD CONTROL ASSEMBLY
4A	SUMP, DISPENSER (BLACK)
4B	SUMP, DISPENSER (STAINLESS)
4	SUMP, DISPENSER (WHITE)
5A	WP13005703B Whirlpool Refrigerator Chute
5	WP13005703W Whirlpool Refrigerator Chute
5B	WP13005705 Whirlpool Refrigerator Chute
6	67006425 Whirlpool Refrigerator Screw
7	67006295 Whirlpool Refrigerator Target Ring
8A	Facade, Dispenser (Black)
8	Facade, Dispenser (White)
8B	FACADE, DISPENSER (STAINLESS)
9	M0108106 Whirlpool Refrigerator Clamp
10	WP12565502 Whirlpool Refrigerator Spring
11A	W10170832 Whirlpool Refrigerator Pad
11B	WPW10185233 Whirlpool Refrigerator Pad
11	W10170831 Whirlpool Refrigerator Pad
