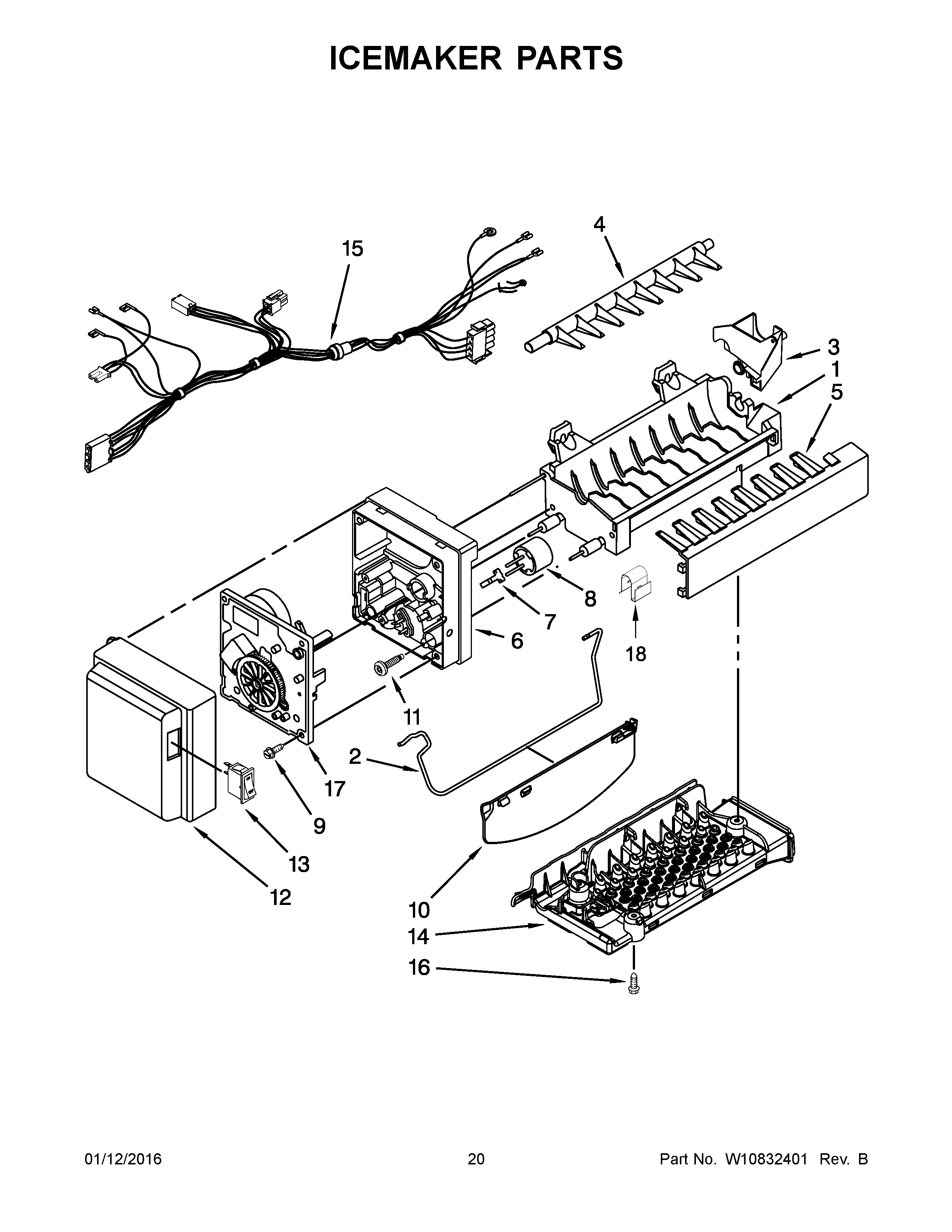

KRFC400ESS01 11 – ICEMAKER PARTS

Products

Position	Product
1	WPW10300025 Whirlpool Refrigerator Ice Mold
2	WPW10175514 Whirlpool Refrigerator Shut-Off Arm
3	W10327050 Whirlpool Refrigerator Cup Fill
4	W10318914 Whirlpool Refrigerator Ejector Arm
5	W10788834 Whirlpool Strip Arm
6	WP2195914 Whirlpool Refrigerator Ice Maker Housing
7	WP2315522 Whirlpool Refrigerator Clip
8	WP627985 Whirlpool Icemaker Cycling Thermostat
9	W10001240 Whirlpool Refrigerator Screw
10	WPW10351019 Whirlpool Refrigerator Extension
11	W10001280 Whirlpool Refrigerator Screw
12	WPW10121444 Whirlpool Refrigerator Front Cover
13	WP2313326 Whirlpool Refrigerator Switch
14	WPW10312691 Whirlpool Refrigerator Air Baffle
15	W10312698 Whirlpool Refrigerator Wire Harness
16	67006425 Whirlpool Refrigerator Screw
17	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
18	WP628379 Whirlpool Refrigerator Clip
100	WPW10300024 Whirlpool Ice Maker
