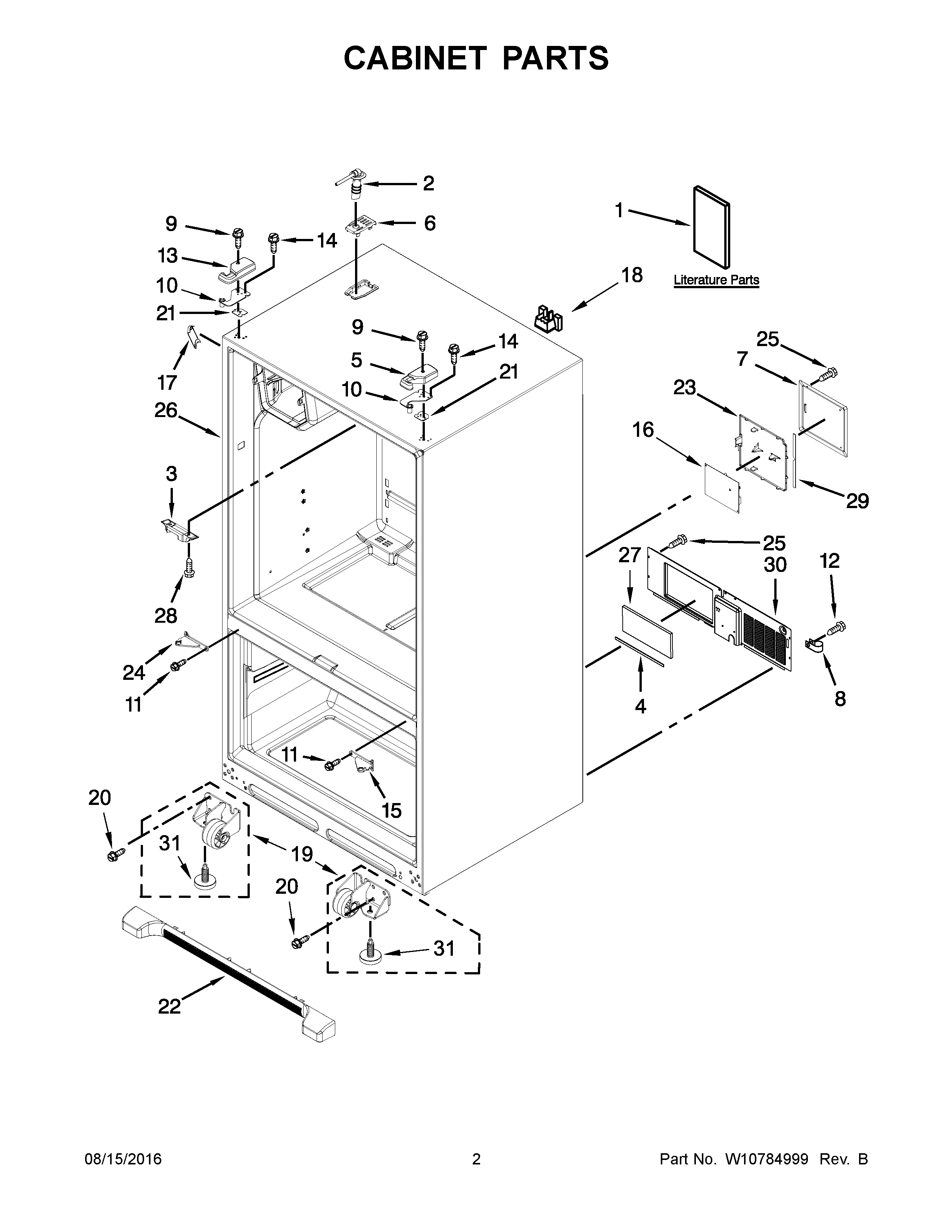

KRFC400EWH00 02 – CABINET PARTS

Products

Position	Product
1A	USE AND CARE GUIDE
1	TECH SHEET
1B	ENERGY GUIDE
2	TUBE-WATER
3	WP67003405 Whirlpool Pivot Block
4	B5759655 Whirlpool Refrigerator Gasket
5B	WPW10191117 Whirlpool Refrigerator Cover
5	67005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
5A	WP67005956 Whirlpool Refrigerator Cover
6B	W10191141 Whirlpool Refrigerator Tube Cover
6A	12981401B Whirlpool Refrigerator Filtration Cover
6	12981401W Whirlpool Refrigerator Cover Filter
7	12961602 Whirlpool Refrigerator Wire Cover
8	W11456069 Whirlpool Refrigerator Clamp
9	WP8281196 Whirlpool Screw
10A	W11592374 Whirlpool Refrigerator Top Door Hinge
10	W11592375 Whirlpool Door Hinge
11	WP67006380 Whirlpool Screw
12	67006425 Whirlpool Refrigerator Screw
13A	W10337647 Whirlpool Refrigerator Cover
13B	WPW10337648 Whirlpool Refrigerator Cover
13	WPW10337634 Whirlpool Refrigerator Cover
14	WP489349 Whirlpool Refrigerator Screw
15A	W10918168 Whirlpool Refrigerator Door Hinge
15	13000002WD Whirlpool Refrigerator Door Hinge
16	WPW10312695 Whirlpool Refrigerator Control Board + Core
17A	67003485 Whirlpool Refrigerator Corner Cover (Black)
17	12587703W Whirlpool Refrigerator Cover
17B	WP12587703AP Whirlpool Refrigerator Filler
18	W11686793 Whirlpool Block
19	WPW10515763 Whirlpool Refrigerator Cabinet Roller
19A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
20	67006564 Whirlpool Refrigerator Screw
21A	12999502 Whirlpool Refrigerator Hinge Shim
21	12999501 Whirlpool Refrigerator Hinge Shim
22	WPW10534154 Whirlpool Refrigerator Front Grille
22B	WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
22A	WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23	W10296536 Whirlpool Refrigerator Cover
24A	W10918164 Whirlpool Refrigerator Door Hinge
24B	W10917988 Whirlpool Refrigerator Door Hinge
24	W10918113 Whirlpool Refrigerator Door Hinge
25	W11686675 Whirlpool Screw
26	CABINET (NOT A SERVICEABLE PART)
27	INSULATION, SOUND
28	W10854958 Whirlpool Refrigerator Screw
29	GASKET, HV BOX
30	WPW10270394 Whirlpool Refrigerator Back Cover
31	WPW10141622 Whirlpool Leveler
