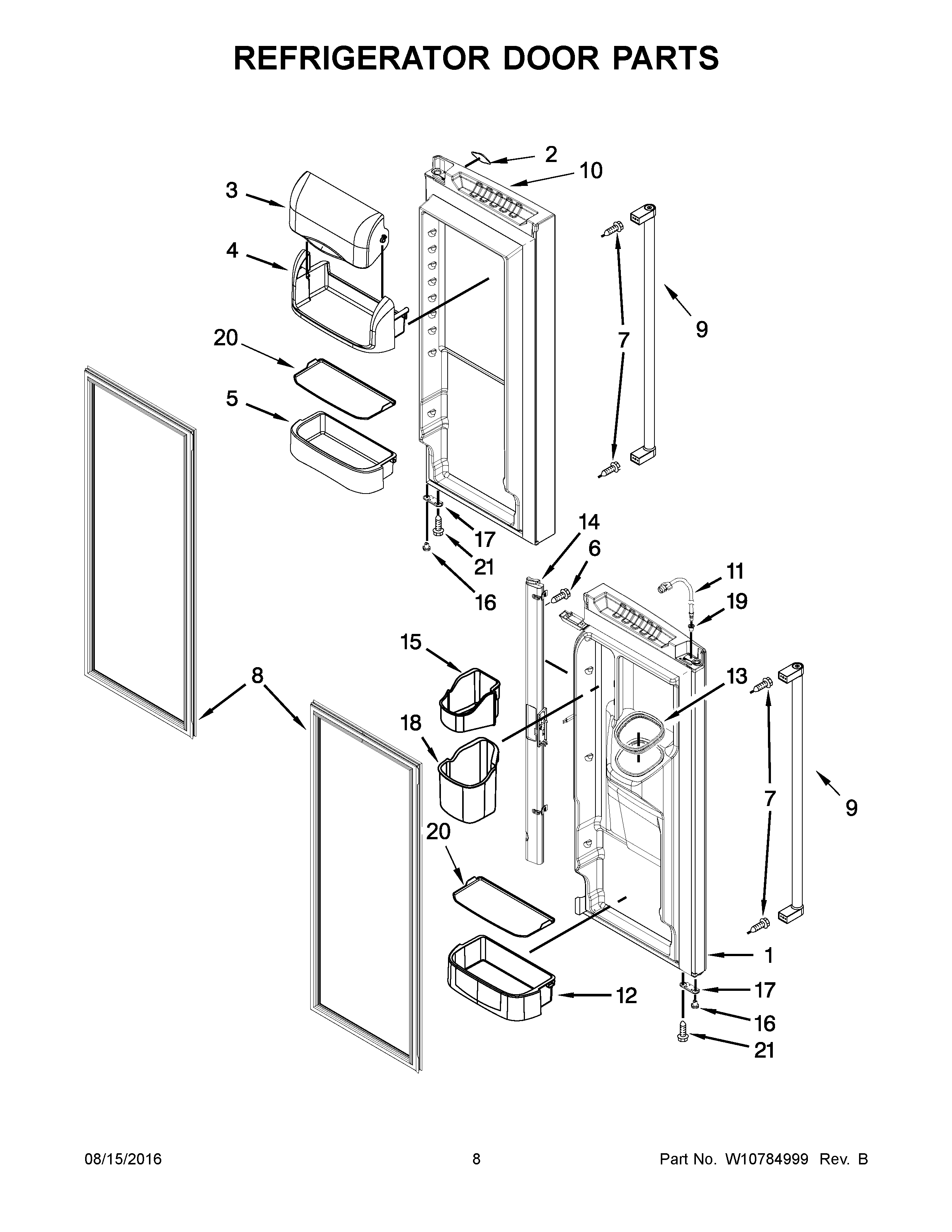

KRFC400EWH00 05 – REFRIGERATOR DOOR PARTS

KRFC400EWH00 05 – REFRIGERATOR DOOR PARTS

Written by

in

KRFC400EWH00 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, LEFT (WHITE)
1BDOOR, LEFT (STAINLESS)
1ADOOR, LEFT (BLACK)
2W10839793 Whirlpool Refrigerator Nameplate
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10119841 Whirlpool Cantilever Bin
6W11311945 Whirlpool Refrigerator Screw
7WPW10661886 Whirlpool Refrigerator Door Handle Screw
8BGASKET-FIP GRAY
8AW11378944 Whirlpool Door Gasket
8W11396037 Whirlpool Door Gasket
9W11483532 Whirlpool Refrigerator Handle
10BDOOR, RIGHT (STAINLESS)
10DOOR, RIGHT (WHITE)
10ADOOR, RIGHT (BLACK)
11W10275942 Whirlpool Refrigerator Water Tube
12WPW10119846 Whirlpool Refrigerator Door Bin Shelf Basket
13WPW10287601 Whirlpool Seal
14WP12722813W Whirlpool Refrigerator Mullion Rail
14AWPW10151713 Whirlpool Refrigerator Mullion Rail
14BWP12722813AP Whirlpool Refrigerator Mullion Rail
15W10187453 Whirlpool Refrigerator Bin
16WP67003638 Whirlpool Closing Cam
16AWP67003639 Whirlpool Refrigerator Closer
16BWP12028505AP Whirlpool Closing Cam
17BW11703060 Whirlpool Door Stop
1712968202W Whirlpool Refrigerator Door Stop
17AW11708403 Whirlpool Door Stop
18BUCKET, LOWER
1912996601 Whirlpool Refrigerator Bushing Clip
20AW11510594 Whirlpool Refrigerator Mat
20W11510593 Whirlpool Refrigerator Mat
21WP98165 Whirlpool Screw
