KRFC604FSS00 05 – REFRIGERATOR DOOR PARTS

KRFC604FSS00 05 – REFRIGERATOR DOOR PARTS

Written by

in

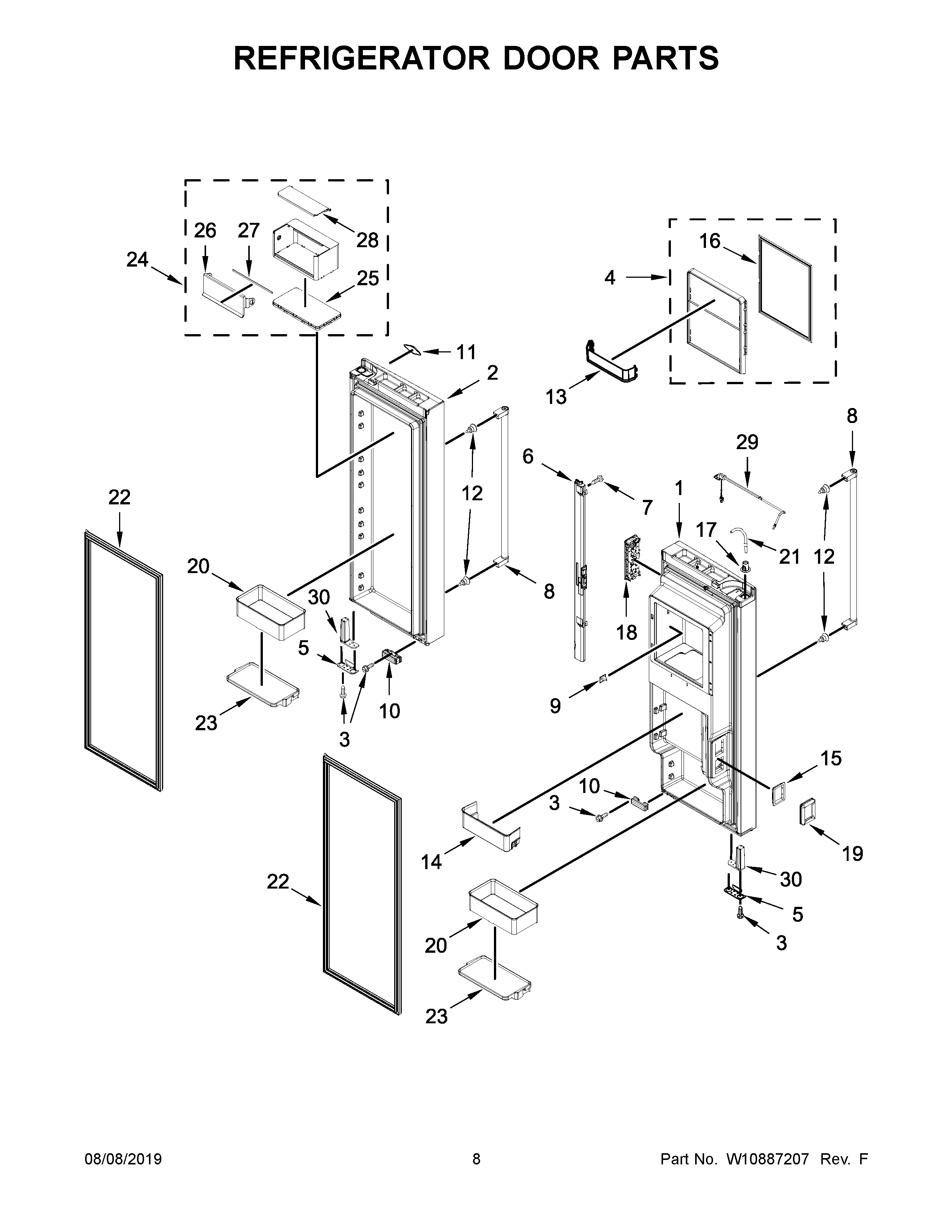

KRFC604FSS00 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, LEFT (STAINLESS (ALSO ORDER ITEM # 18))
2W10849508 Whirlpool Refrigerator Door Assembly
4W11594928 Whirlpool Refrigerator Ice Door
5W11243377 Whirlpool Refrigerator Door Stop
6W11649966 Whirlpool Mullion Rail
7W11311945 Whirlpool Refrigerator Screw
8W11483532 Whirlpool Refrigerator Handle
9W11123943 Whirlpool Refrigerator Switch
10W10798308 Whirlpool Refrigerator Door Bumper
11W10839793 Whirlpool Refrigerator Nameplate
12WPW10661886 Whirlpool Refrigerator Door Handle Screw
13W10887799 Whirlpool Trivet
14W10887800 Whirlpool Cantilever Bin
15W10720065 Whirlpool Refrigerator Retainer
16W11625084 Whirlpool Refrigerator Gasket
17W11315302 Whirlpool Refrigerator Clip
18W11099340-includeCORE Whirlpool W11099340 Refrigerator Electronic Control Board + Core
19W10720073 Whirlpool Refrigerator Gasket
20W10887801 Whirlpool Refrigerator Cantilever Bin
21W10883965 Whirlpool Refrigerator Water Tube
22W10917313 Whirlpool Refrigerator Door Gasket
23TRIM
24W10887802 Whirlpool Refrigerator Cantilever Bin
25W10795523 Whirlpool Refrigerator Base
26W10803630 Whirlpool Refrigerator Compressor Door
27W10795525 Whirlpool Gasket Assembly
28W10795524 Whirlpool Refrigerator Cover
29W11230096 Whirlpool Refrigerator Water Tube
30AW11189598 Whirlpool Refrigerator Closer
30W11179355 Whirlpool Refrigerator Closer
