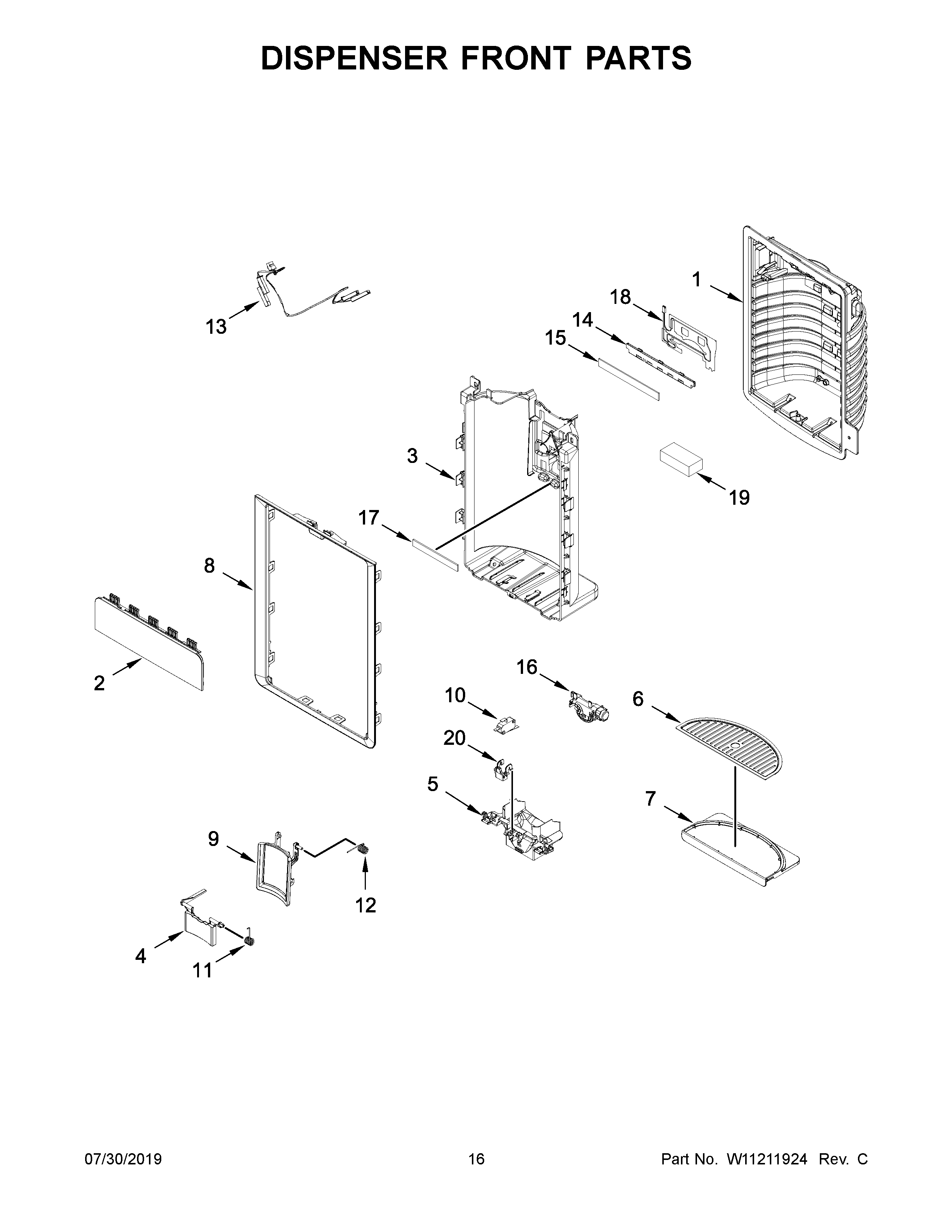

KRFC604FSS01 09 – DISPENSER FRONT PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	W11533213-includeCORE Whirlpool W11533213 Refrigerator Electronic Control Board + Core
3	W11227946 Whirlpool Refrigerator Shield
4	W11251709 Whirlpool Refrigerator Pad
5	W11204892 Whirlpool Refrigerator Ice Door
6	W11220377 Whirlpool Refrigerator Tray
7	W11252157 Whirlpool Refrigerator Drip Tray
8	W11222983 Whirlpool Refrigerator Trim
9	W10815345 Whirlpool Refrigerator Pad
10	W11087492 Whirlpool Refrigerator Water Dispenser Switch
11	W10672578 Whirlpool Refrigerator Spring
12	W11109505 Whirlpool Refrigerator Spring
13	W10704135 Whirlpool Refrigerator Wire Harness
14	W10757499 Whirlpool Refrigerator Bracket
15	W10696713 Whirlpool Refrigerator Door Gasket
16	W11189145 Whirlpool Refrigerator Ice Door
17	W10663699 Whirlpool Refrigerator Gasket
18	W10752689 Whirlpool Refrigerator Heater
19	W10888235 Whirlpool Refrigerator Gasket
20	W10809296 Whirlpool Refrigerator Guide
