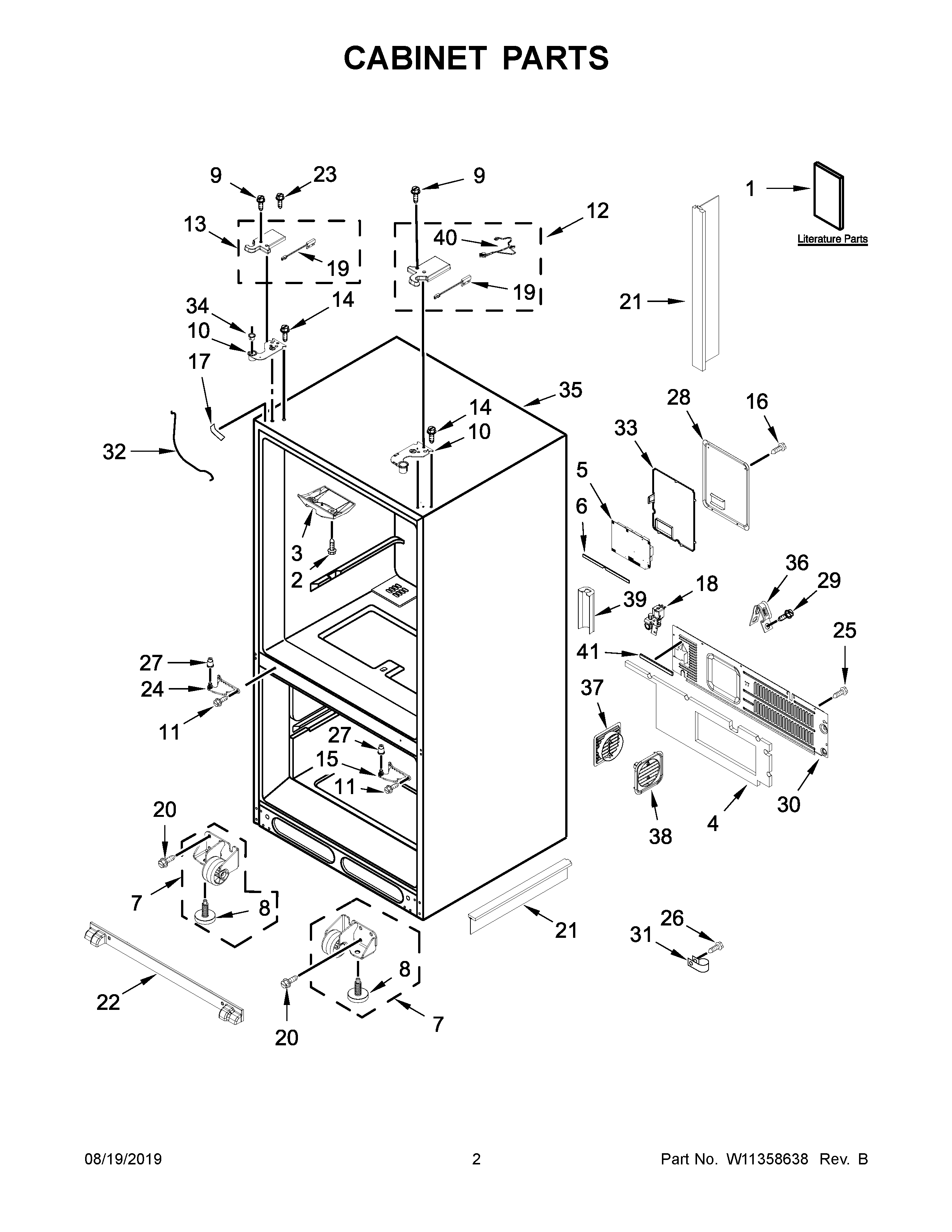

KRFC604FSS02 02 – CABINET PARTS

KRFC604FSS02 02 – CABINET PARTS

Written by

in

KRFC604FSS02 02 – CABINET PARTS

Products

PositionProduct
1TECH SHEET (ENGLISH)
1CENERGY GUIDE
1ATECH SHEET (FRENCH)
1BUSE AND CARE GUIDE
2W10854958 Whirlpool Refrigerator Screw
3W10840310 Whirlpool Refrigerator PIV Block
4W11688554 Whirlpool Insulation
5W11450890 Whirlpool Refrigerator UI Panel
6W10415341 Whirlpool Refrigerator Gasket
7AROLLER-CAB
7ROLLER-CAB
8W10846099 Whirlpool Refrigerator Leveler
9WP8281196 Whirlpool Screw
10W11032616 Whirlpool Refrigerator Door Hinge
10AW11032620 Whirlpool Refrigerator Door Hinge
11W11573362 Whirlpool Screw Assembly
12W10895492 Whirlpool Refrigerator Cover
13W11371720 Whirlpool Refrigerator Cover
14W11126052 Whirlpool Screw Assembly
15W10816323 Whirlpool Refrigerator Door Hinge
16W11686675 Whirlpool Screw
17W10868482 Whirlpool Cover
18VALVE
19W11221357 Whirlpool Refrigerator Switch
2067006564 Whirlpool Refrigerator Screw
21AW10878920 Whirlpool Refrigerator Divider
21W10878918 Whirlpool Refrigerator Divider
22W10887787 Whirlpool Refrigerator Front Grille
23W11214483 Whirlpool Refrigerator Screw
24W10816322 Whirlpool Refrigerator Door Hinge
2667006425 Whirlpool Refrigerator Screw
27W11223833 Whirlpool Refrigerator Hinge Bushing
28W10754144 Whirlpool Refrigerator Cover
29SCREW
30W10669259 Whirlpool Refrigerator Back Cover
31W11456069 Whirlpool Refrigerator Clamp
32AW10853599 Whirlpool Refrigerator Water Tube
32W10853597 Whirlpool Refrigerator Water Tube
33W10768379 Whirlpool Refrigerator Cover
34W10705239 Whirlpool Refrigerator Grommet
35CABINET (NOT A SERVICEABLE PART)
36549193 Whirlpool Refrigerator Power Clamp
37WPL W10838744
38WPL W10838745
39W10208592 Whirlpool Refrigerator Valve Cover
40W10858468 Whirlpool Refrigerator Wire Harness
41WPL W11243631
