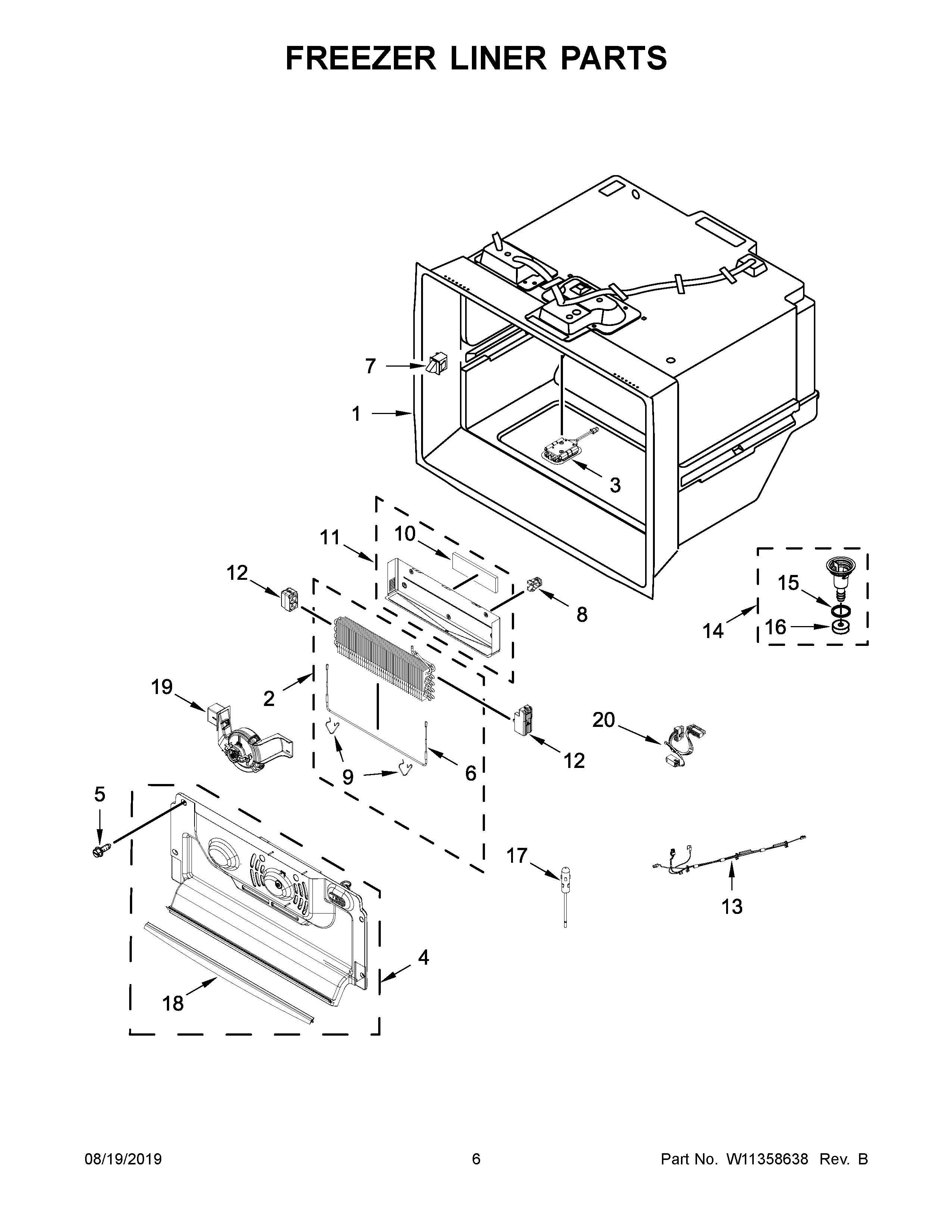

KRFC604FSS02 04 – FREEZER LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	W11099748 Whirlpool Refrigerator Evaporator
3	MODULE
4	W11394920 Whirlpool Refrigerator Evaporator Cover
5	67006425 Whirlpool Refrigerator Screw
6	W11700340 Whirlpool Heater Assembly
7	W11123941 Whirlpool Refrigerator Switch
8	CLIP, EVAP (2)
9	W10683507 Whirlpool Refrigerator Clip
10	GASKET
11	SHIELD, HEAT
12	W10668201 Whirlpool Refrigerator Duct
12A	W10668198 Whirlpool Refrigerator Evaporator Block
13	W11614809 Whirlpool Refrigerator Wire Harness
14	W10503218 Whirlpool Refrigerator Funnel
15	WPM0500703 Whirlpool Refrigerator O-Ring Seal
16	WPB8381501 Whirlpool Refrigerator Door Gasket
17	W11318270 Whirlpool Refrigerator Thermistor
18	W10770923 Whirlpool Refrigerator Gasket
19	W11407678 Whirlpool Refrigerator Fan
20	W10911358 Whirlpool Refrigerator Wire Harness
